Arduino® UNO R4 Minima

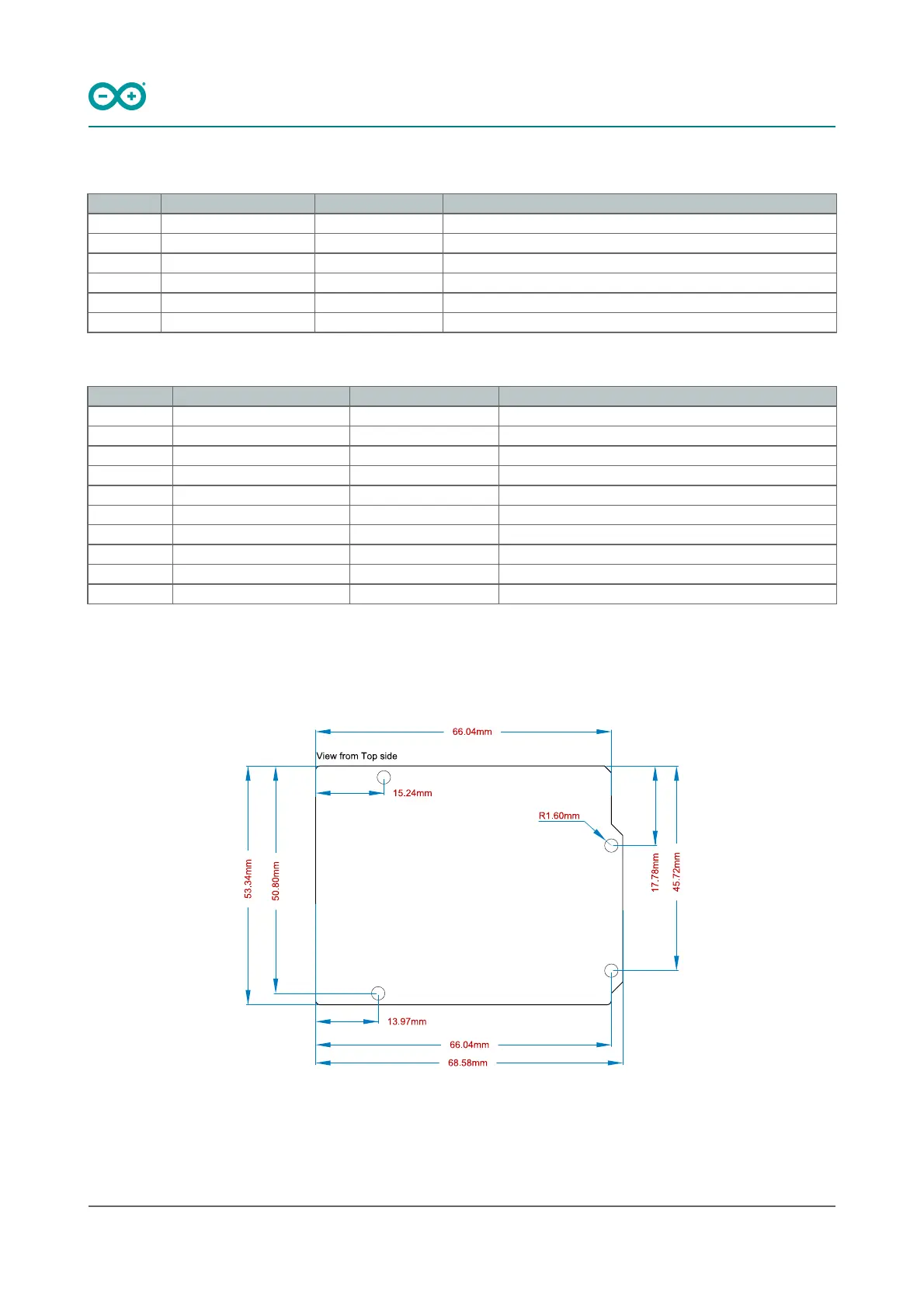

13 / 17 Arduino® UNO R4 Minima Modiﬁed: 19/06/2023

9.3 ICSP

Pin Function Type Description

1 CIPO Internal Controller In Peripheral Out

2 +5V Internal Power Supply of 5 V

3 SCK Internal Serial Clock

4 COPI Internal Controller Out Peripheral In

5 RESET Internal Reset

6 GND Internal Ground

9.4 SWD/JTAG

Pin Function Type Description

1 +5V Internal Power Supply of 5V

2 SWDIO Internal Data I/O pin

3 GND Internal Ground

4 SWCLK Internal Clock Pin

5 GND Internal Ground

6 NC Internal Not connected

7 RX Internal Serial Receiver

8 TX Internal Serial Transmitter

9 GND Internal Ground

10 NC Internal Not connected

10 Mounting Holes And Board Outline

Mechanical View of Arduino UNO R4 Minima
