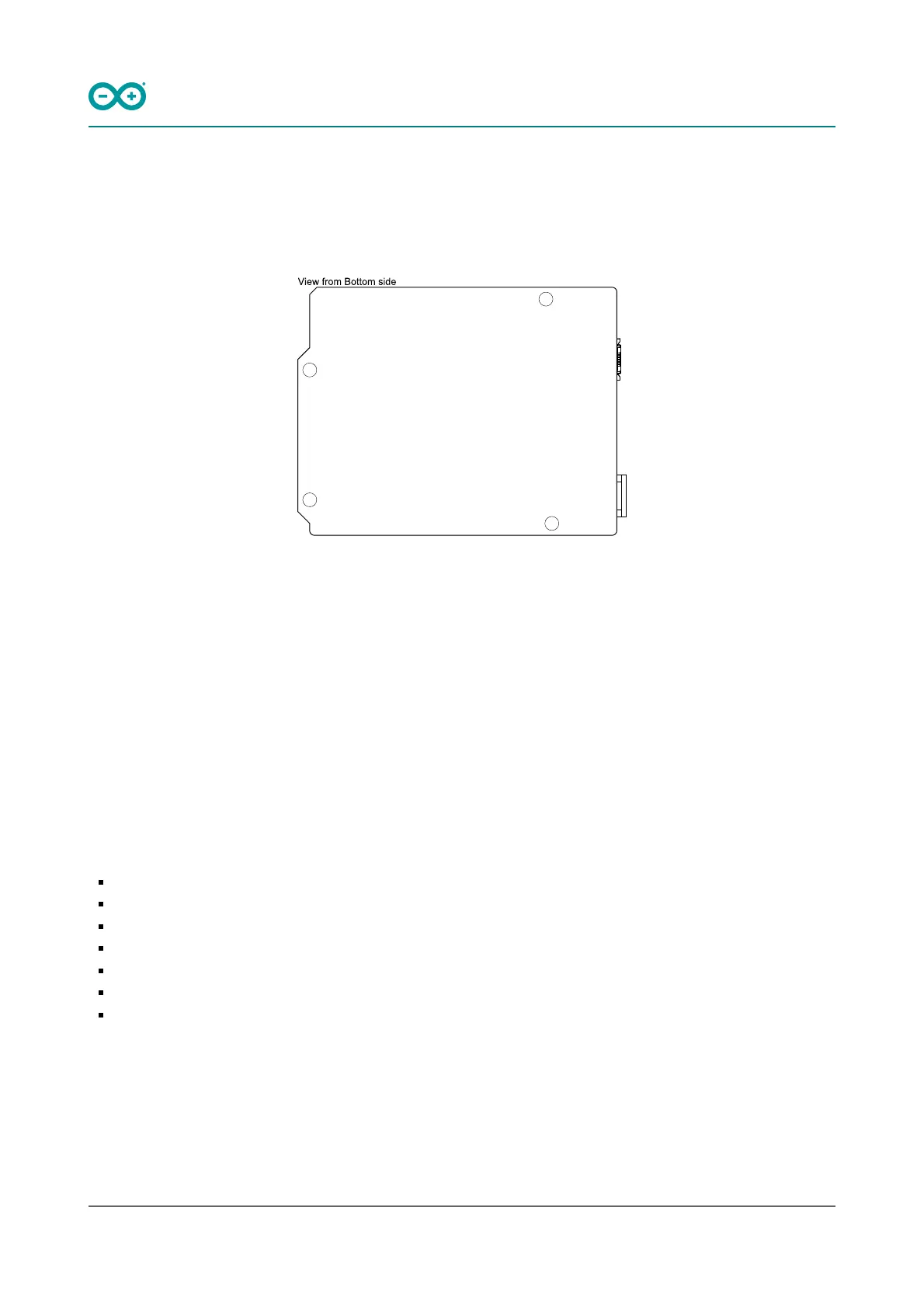

4.2 Back View
Back View of Arduino R4 Minima
5 Microcontroller (R7FA4M1AB3CFM#AA0)
The UNO R4 Minima is based on the 32-bit RA4M1 series microcontroller, R7FA4M1AB3CFM#AA0, from Renesas,
which uses a 48 MHz Arm® Cortex®-M4 microprocessor with a floating point unit (FPU).
On the UNO R4 Minima, the operating voltage is fixed at 5 V to be fully retro compatible with shields, accessories &
circuits originally designed for older UNO revisions.
The R7FA4M1AB3CFM#AA0 features:
256 kB flash / 32 kB SRAM / 8 kB data flash (EEPROM)
Real-time Clock (RTC)
4x Direct Memory Access Controller (DMAC)
up to 14-bit ADC
up to 12-bit DAC
OPAMP
1x CAN bus
For more technical details on this microcontroller, visit Renesas - RA4M1 series.

Arduino UNO R4 Minima Specifications

General

Operating Voltage	5V
Input Voltage	6-24V
Input Voltage (recommended)	7-12V
Digital I/O Pins	14
PWM Pins	6
Analog Input Pins	6
Flash Memory	256 KB
SRAM	32 KB
Clock Speed	48 MHz
DC Current per I/O Pin	8 mA
DAC	1
UART	1
SPI	1
I2C	1
USB	USB-C
Dimensions	68.6 mm x 53.4 mm
Microcontroller	RA4M1 (Arm Cortex-M4)
