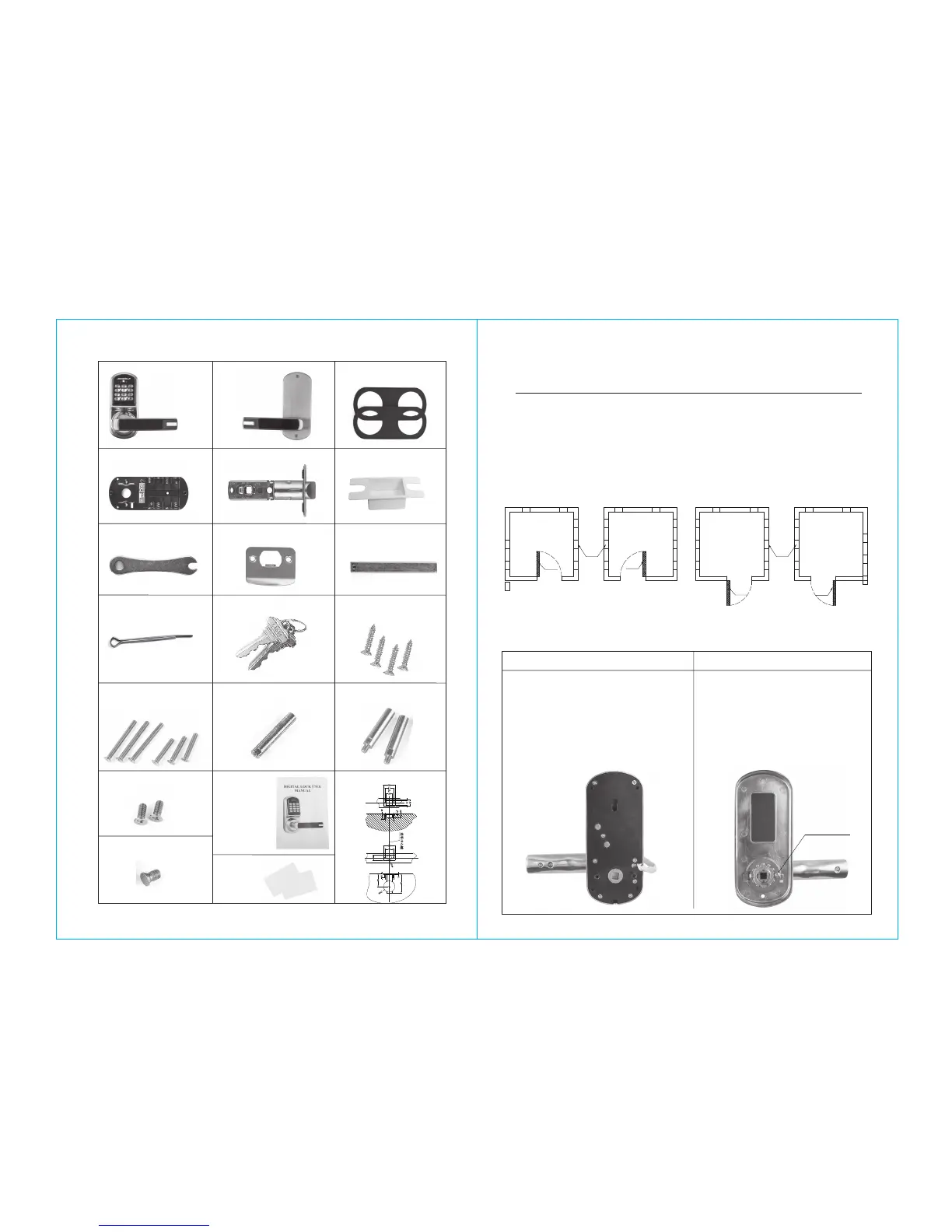

1. Installation conditions
1.1 Door Thickness Requirements
Door frame≥110mm (for Inconsistent door thickness )
35mm≤Door Thickness≤45mm (More Than 45mm Need
To Custom Accessories)
1.2 Confirm The Direction of the door
Installation Guide
Interior Interior
Door
Door
Wall
Interior Interior
Door
Door Open Direction
Door
Wall
1. Front Panel 2. Back Panel 3. Waterproof Rubber Pad
4. Inside Chassis 5. Lock Bolt 6. Bolt Protector
7. Wrench 8. Strike Plate 9. Square Spindle
10. Pin (for square spindle fixing) 11. Mechanical Key 12. Fixing Screw x4 (A)
(for strike plate fixing)
13. Fixing Screw x 3 (B1)
Fixing Screw x 3 (B2)
Use B1 or B2 for fixing,
depends on door thickness
14. Screw x 1 (C)
(for front panel fixing)
15. Screw x 2 (D)
(for front panel fixing)
16. Screw x 2 (E)
(for back panel fixing)
17. Screw x 1 (F)
(for the screw “C” fixing)
18. User Manual
20. Hole Drilling Template
How to adjust the direction of lock handle
Front Panel
1. Remove the 8 small screws
2. Take out the mechanical system
slightly. Do not damage the wire.
3. Remove the screw holding the
handle, then adjust the handle
direction as desired
4. Assemble the screws back
Back Panel
1. Remove the screws holding the
handle, adjust the handle
direction as desired
2. Assemble the screws back
screw position
19. Mifare Card x 2
3. Packing List
04 05
