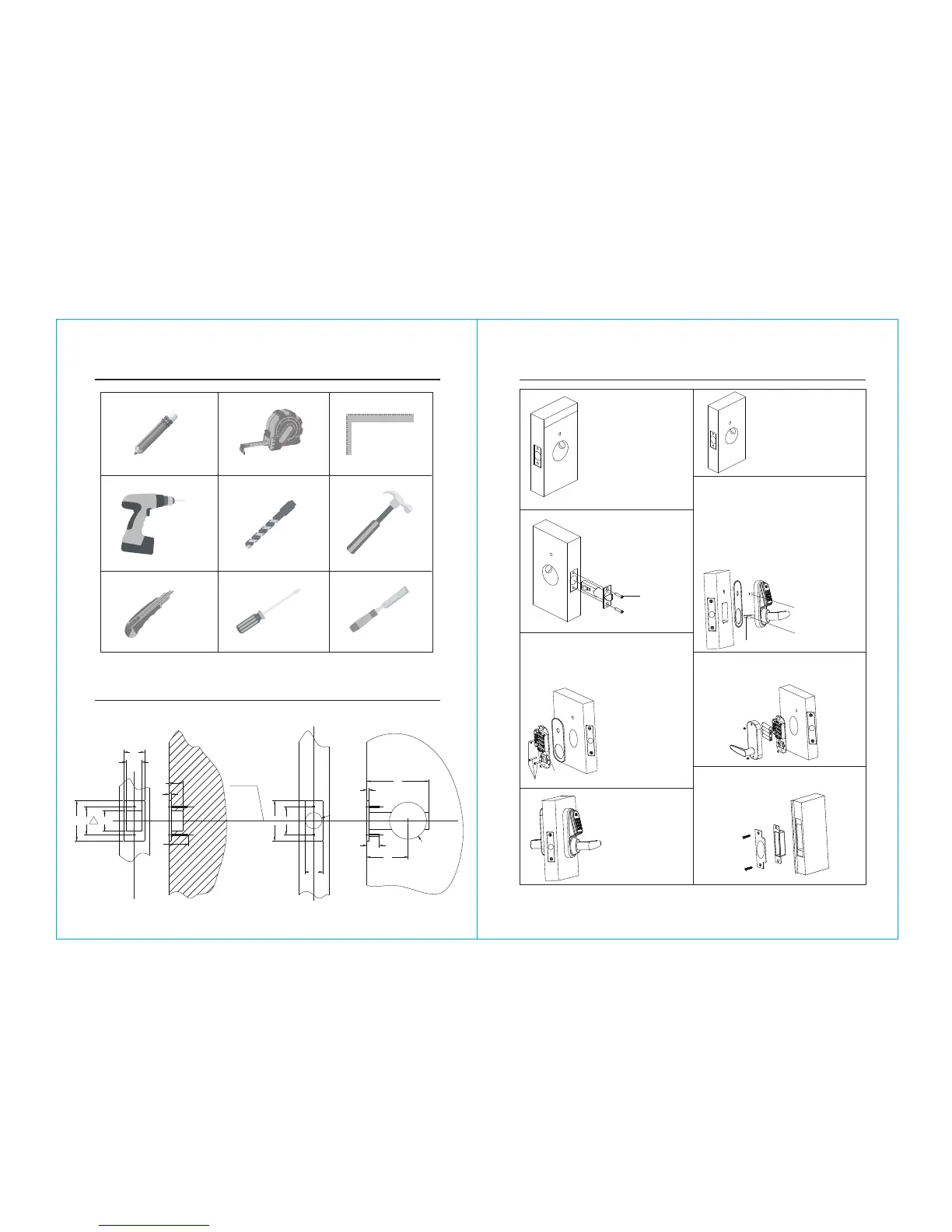

2. Installation Tools
3. Drill Holes On Door
Below is the Drill Holes Template
∅
24
26
58
60
90
41
∅
54
58
23
41
30
3
20
3
30
18
28
1
Handle Centerline
1. Pencil 2. Tape Measure 3. Square Measure
4. Power Drill 5. Drill Bits 6. Hammer
7. Utility Knife 8. Phillips Screwdriver 9. Chisel
4. Installation Steps
1. Draw lines
a. To draw a horizontal
centerline on both sides of
the inner and outer door one
meter from the ground.
b. Fold Drill Holes Template,
align the handle centerline
with the horizontal line on the
door, draw the front and side
drill holes lines according to
the requirements of the Drill
Holes template.
3. Install Latch
Install the latch to the hole,
and fix it by using two “A”
screws.
2. Drill Holes
Drill Holes on the door
according to the requirements
of the Drill Holes template
4. The front panel installation
a. Connect the screws of “C” and “F”, then fix it
in the hole which be showed on the front panel
b. Fix the screws of “D” on the front panel
c. Insert the square spindle, fix it by the “pin” which
get through the small hole in the spindle and the
front panel. Be sure to bend the pin for fixing.
d. Put on the waterproof rubber pad
e. Align the cylinder holes, install the front panel.
The wire get through from the main hole.
a. Put on the waterproof rubber pad, get the
wire through from the “wire hole” which on
the inside chassis.
b. Install the inside chassis, fixing it by using
screws of “B1” or “B2” which
depends on the thickness of
the door.
c. Connect the wire to the
hub on the inside chassis.
5. The inside chassis installation
6. Install the battery and back panel
7. Installation Test
a. Check the flexibility of
outside and inside handle
b. Check if the Mechanical
keys works
8. Strike installation
Screw"B1" or "B2"
Wire Hole
screw A
screw C
screw D
square spindle
a. Install 4 AA Alkaline batteries.
b. Fixing the back panel by two screws of “E”
Install the bolt protector and strike plate, fixing
by using 2 screws of “A”
06 07
