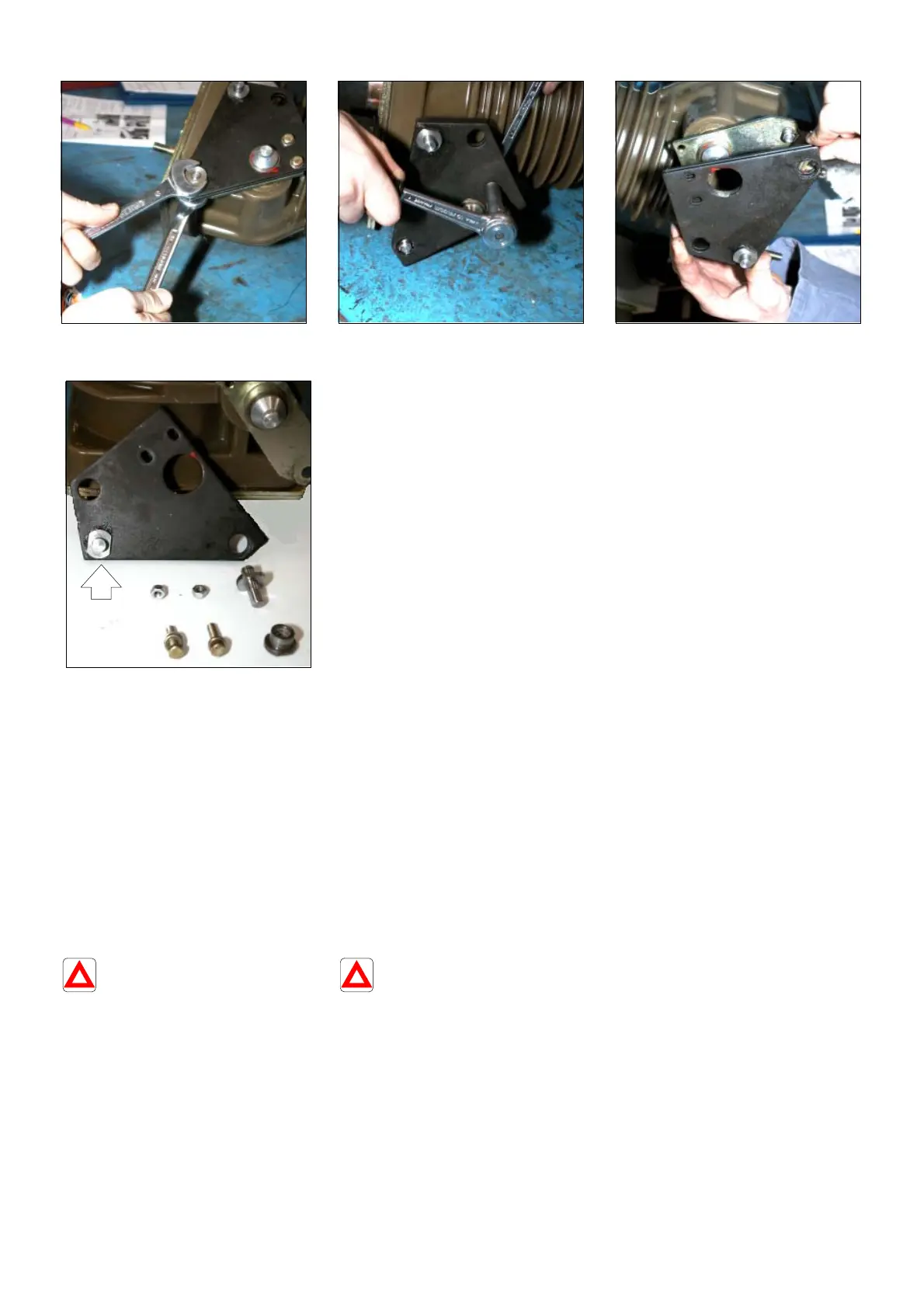

Remove the drive lever pin (17
mm and 19 mm open-ended
spanners).
Remove the 2 plate-maintaining
bolts (ratchet wrench + 10 mm
open-ended spanner).
Remove the plate from the drive
lever.
Detail of the constituent parts.
Pin not to be
removed
10.7 Removal of a led" pole
Follow the same operations as
those indicated for the leading pole
(§10.5).
10.8 Essential verifications before mounting the new pole
In order:
1 ć Check the general state of the
new pole, in particular the absence
of traces of shocks on the araldite.
2 ć Check its nominal pressure
which must be equal to 0.5 bar.
3 ć Check its reference.
The exchange pole must bear the
same technical reference as the
original pole (See § 5.2).
10.9 Installation of the new pole
It is essential that you use the
new parts supplied with the
exchange pole.
Identify these parts in contrast with
those for the original pole and only
use rigorously identical parts in the
same place.
Scrupulously respect the
order for the following
operations.
