⚫ The all figures are only schematic, and they may be slightly different from the actual appliances you
selected.
〖Position for Outdoor Unit〗
⚫ Avoid direct sunlight.
⚫ Away from heat source, steam source, leakage of flammable gas, smoke and dust.
⚫ Select a place that is away from rain (snow) and has good ventilation.
⚫ Neighbors will not be affected by the blown wind and noise, or discharged water.
⚫ The place that is easy to install and service.
⚫ Mounted on the solid and reliable foundation will not increase noise or shock.
⚫ To get high cooling performance, make sure the unit's front, rear, left and right sides must be located
in an open area.
⚫ The outlet is proposed to be in open air, any obstacle will affect the performances.

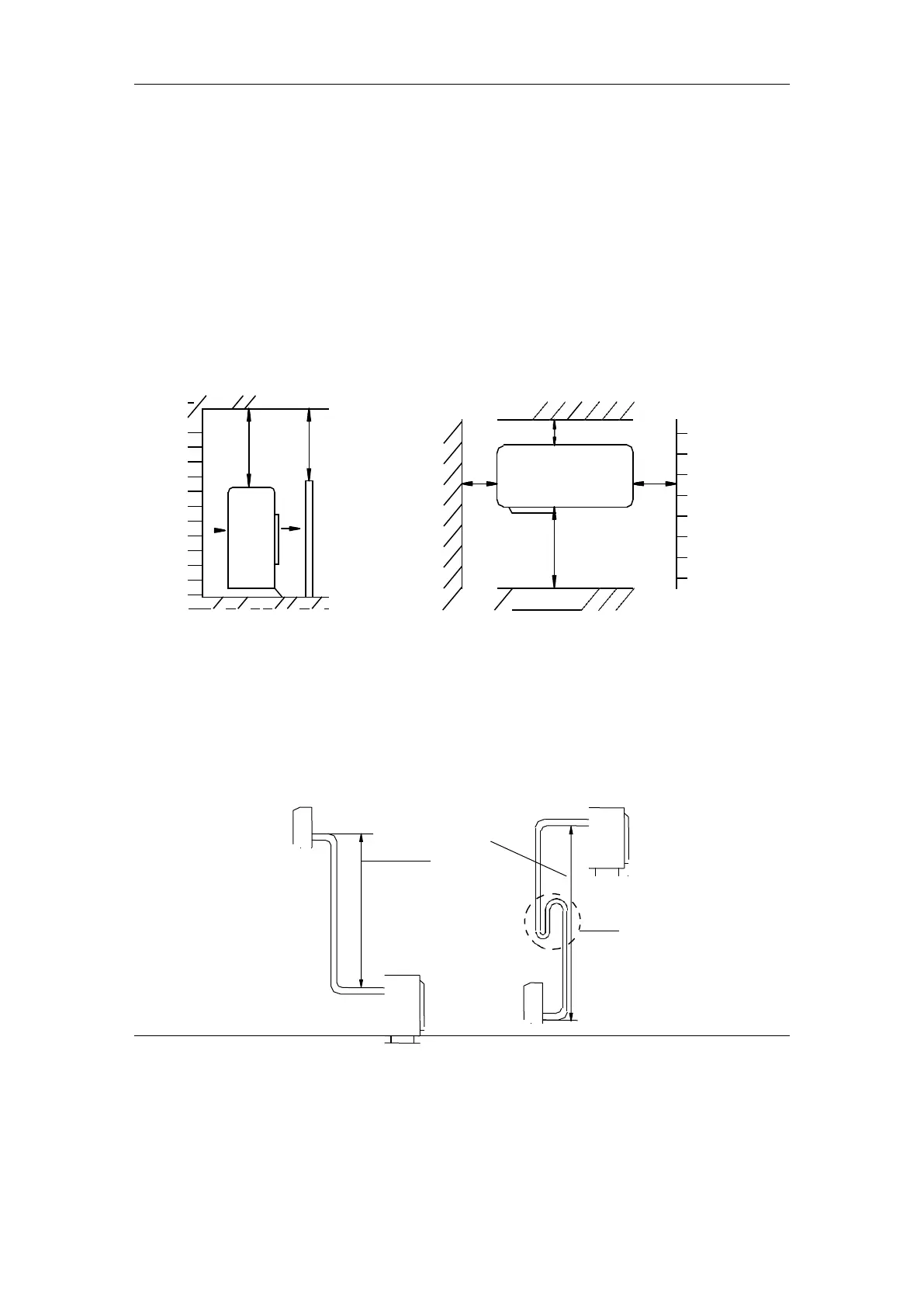

⚫ The installing distance must be required as Fig. 2 shows.
〖Tubing Selection〗
Fig.2
⚫
Ensure that the level (height) difference of indoor and outdoor units and the length of tubing meet the
requirement In the Table 1.
⚫
If the tubing is longer than 7m, but shorter than 15m, refrigerant should be supplemented according
to Table 1.
⚫
If the installation position of the outdoor unit is higher than indoor unit and the tguabsintugbisinlgonisgelorntghearnthan
10m, added a oil trap on the gas tubing for every 8m.
(Fig.3)
Height
difference
Outdoor unit
oil trap
Indoor unit
To Next Page
