4
● install in a sturdy manner to avoid increased operat-
ing noise.

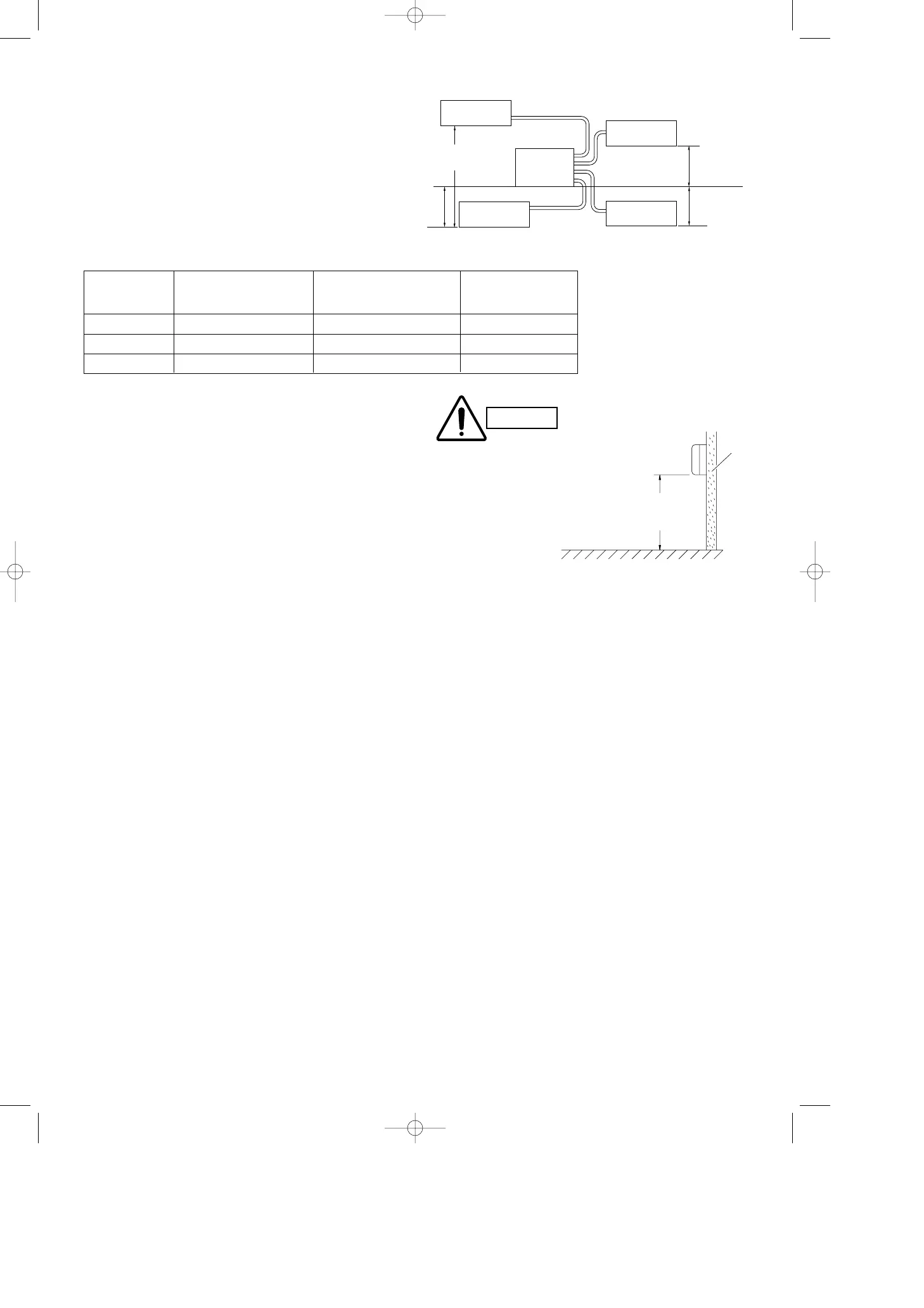

● install the unit within the maximum elevation differ-
ence (H1, H2, H3, H4) above or below the outdoor
unit and within a total tubing length (L1+L2,
L1+L2+L3, L1+L2+L3+L4) from the outdoor unit as
detailed in Table 3 and Fig. 3a.
Table 3
Max. Allowable Tubing Limit of Total Tubing Limit of Elevation
Model
Length per unit Length (L1+L2), (L1+L2+L3) Difference (H)
(Outdoor unit)
(m) or (L1+L2+L3+L4) (m) (m)
AE2MI56AH 25 35 (L1+L2) 10
AE3MI70AH 25 50 (L1+L2+L3) 10
AE4MI91AH 30 70 (L1+L2+L3+L4) 10
INDOOR
UNIT (1)
INDOOR
UNIT (4)
INDOOR
UNIT (3)
INDOOR
UNIT (2)
Tubing length (L1)
L2
L3
L4
H2
H3
H4
OUTDOOR
UNIT
Elevation
difference (H1)
Fig. 3a
Indoor unit
Floor level
Wall
Minimum height
from floor level
1.5 m
Fig. 3b
For stable operation of the
air conditioner, do not
install wall-mounted type
indoor units less than 1.5 m
from floor level.
CAUTION
