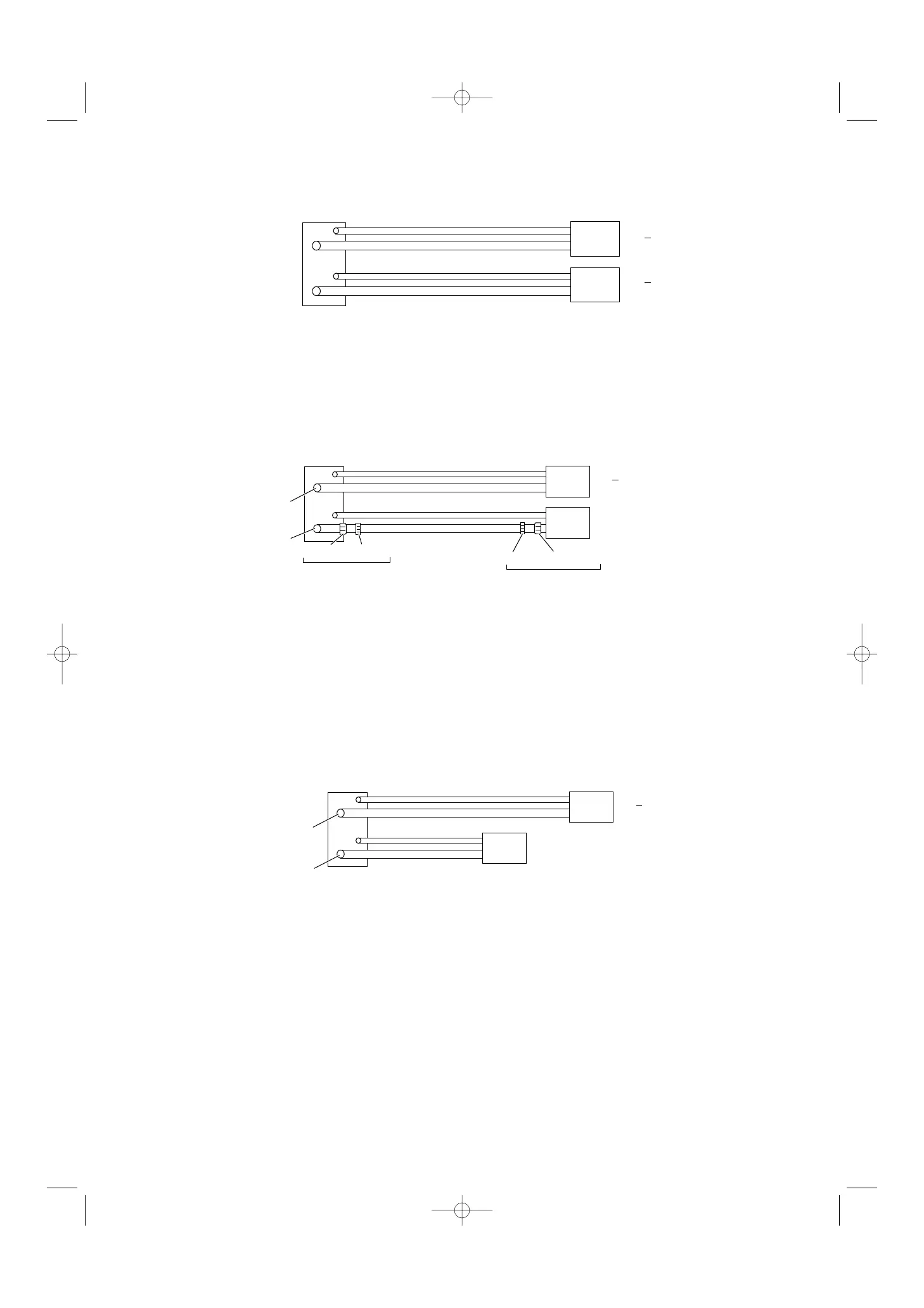

Fig. 2a
5
(1) Connecting indoor unit types (28 – 36) at B
φ6.35
φ6.35
φ9.52
φ9.52
A
B
(28 36 type)
Outdoor unit
Indoor unit
(28 36 type)
(2) Connecting indoor unit type 50 at B (Length of tube: more than 17 m)
φ6.35
φ6.35
φ9.52
Union φ12.7
φ9.52
φ9.52
A
B
(28 36 types)
Outdoor unit
Indoor unit
(50 type)
Flare φ9.52
Union φ12.7
φ12.7
Flare φ9.52
A joint for connecting tubes of
different sizes
(More than 17 m)
Fig. 2b
(3) Connecting indoor unit type 50 at B (Length of tube: less than 17 m)
φ6.35
φ6.35
φ9.52
φ9.52
A
B
(28 36 types)
Outdoor unit
Indoor unit
(50 type)
φ9.52
φ9.52
(Less than 17 m)
Fig. 2c
