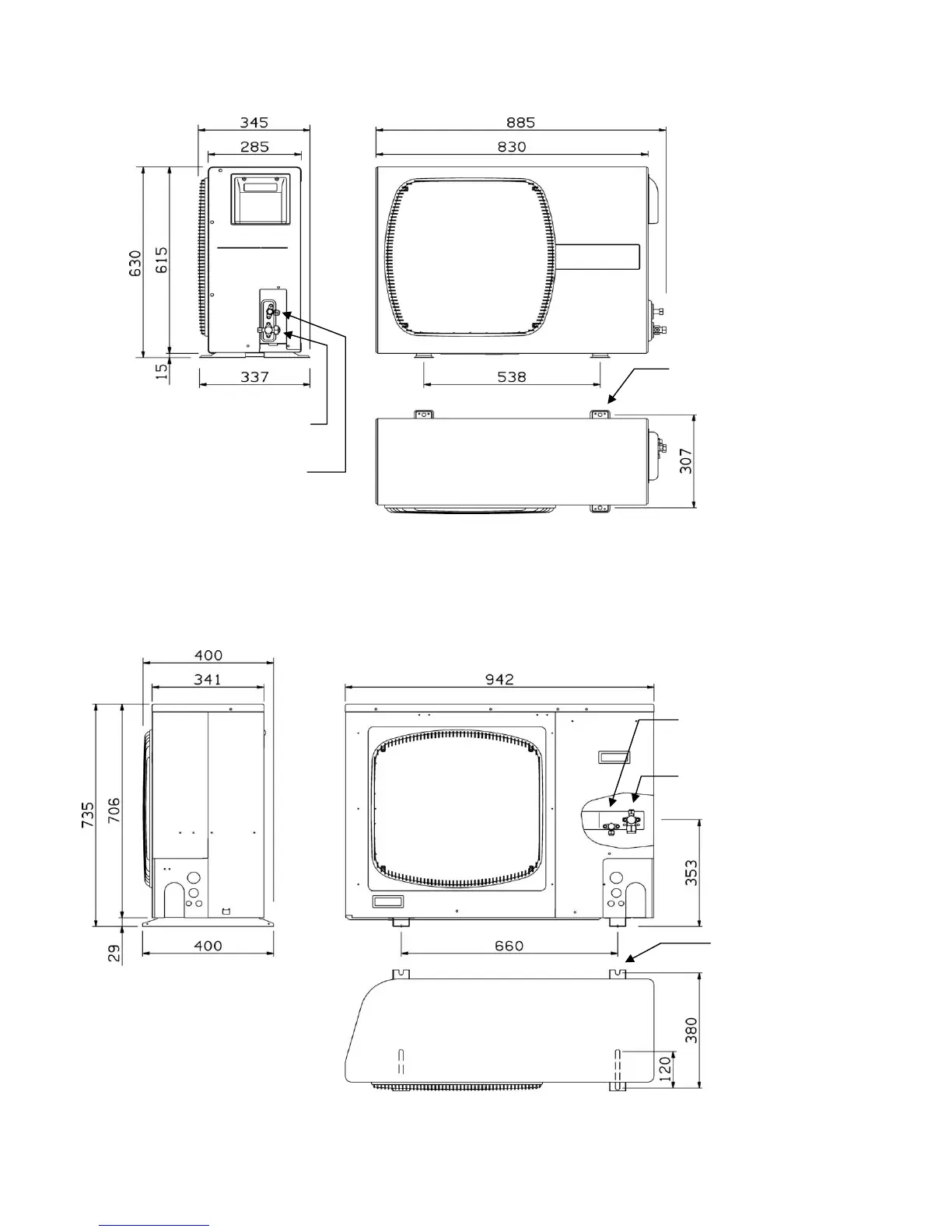

Outdoor Unit: AE752SCL AE752SCL3 dimension mm
Outdoor Unit: AE764SCL3 AE71SCL3
dimension mm
WIDE TUBE
D.15,88 (5/8")
NARROW TUBE
D.6,35 (1/4")
NARROW TUBE D.6,35 (1/4")
WIDE TUBE D.12,7 (1/2")
4 - Ø12
for anchor bolt
4 - Ø13
for anchor bolt
23
