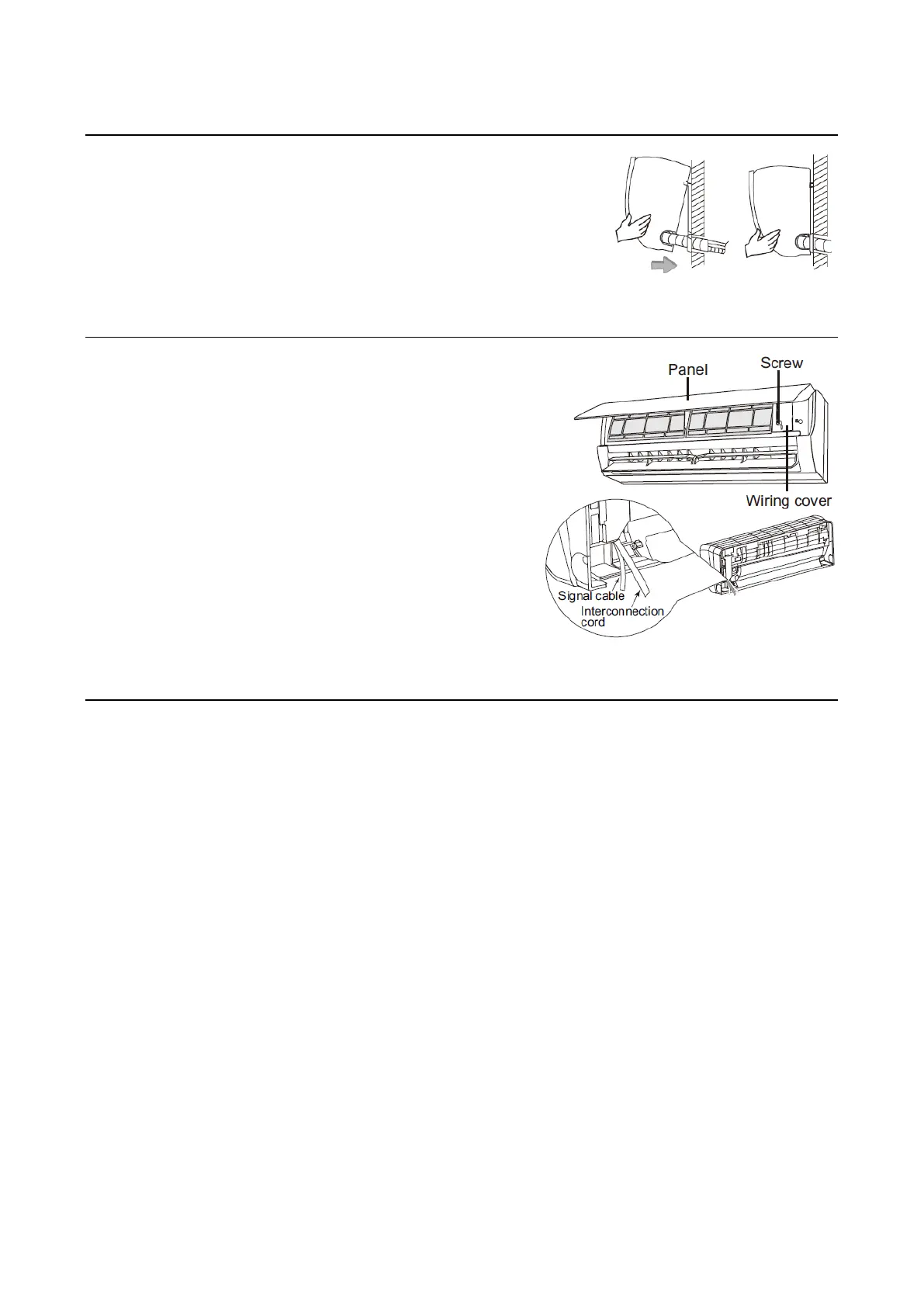

FIXING THE INDOOR UNIT
1. Hang the indoor unit on the peg board, and move the unit from left to right to
ensure that the hook is properly positioned in the peg board.
2. Push toward the lower left side and the upper right side of the unit toward the
peg board, until the hook is embedded in the slot and makes a "click" sound.
INTERCONNECTION CORD INSTALLATION
Connect interconnection cord of indoor unit
1. Open the panel, remove the screw on the wiring cover and then
take down the cover.
2. Make the interconnection cord go through the cable-cross hole at
the back of indoor unit and then pull it out from the front side.
(Some models do not have a signal cable).
3. Remove the wire clip; connect the interconnection cord to the wiring
terminal according to the wiring diagram; tighten the screw and
then fix the interconnection cord with wire clip.
4. Put wiring cover back and then tighten the screw.
5. Close the panel.
AFTER INSTALLATION CHECK
1. The screws whether have been fixed effectively, and there is no risk of loosening.
2. Connector of display board whether put in the right place and do not touch the terminal board.
3. Control box cover whether cover tightly.
