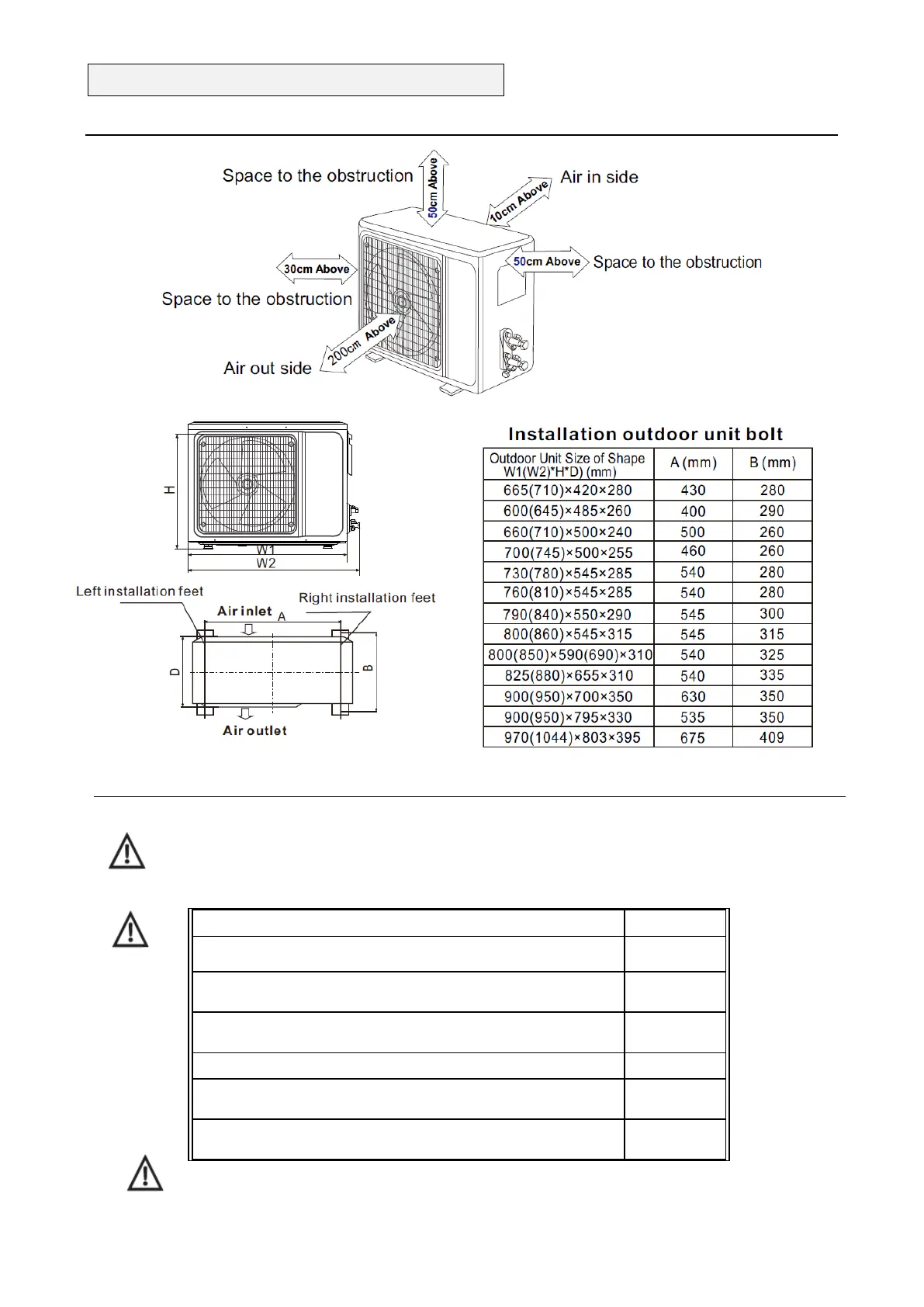

DIMENSION DRAWING OF OUTDOOR UNIT INSTALLATION
REFRIGERANT CONNECTIONS
Use equipment and connecting pipes suitable for R32 refrigerator.
MODEL
14K
Min.-Max. pipe lenght with gas standard charge (m)
3 – 7,5
Maximum length of pipes with additional charge (m)
40
Maximum pipe length per unit (m)
25
Additional refrigerant charge (g/m)
25
Maximum height difference between indoor units
10
Maximum height difference between indoor and outdoor unit
15
Always write the additional refrigerant charge on the data label affixed to the unit outside.
