Argo HERMES PLUS - Window Unit Kit Installation

31V 01/24
USE WITH WINDOW UNIT KIT

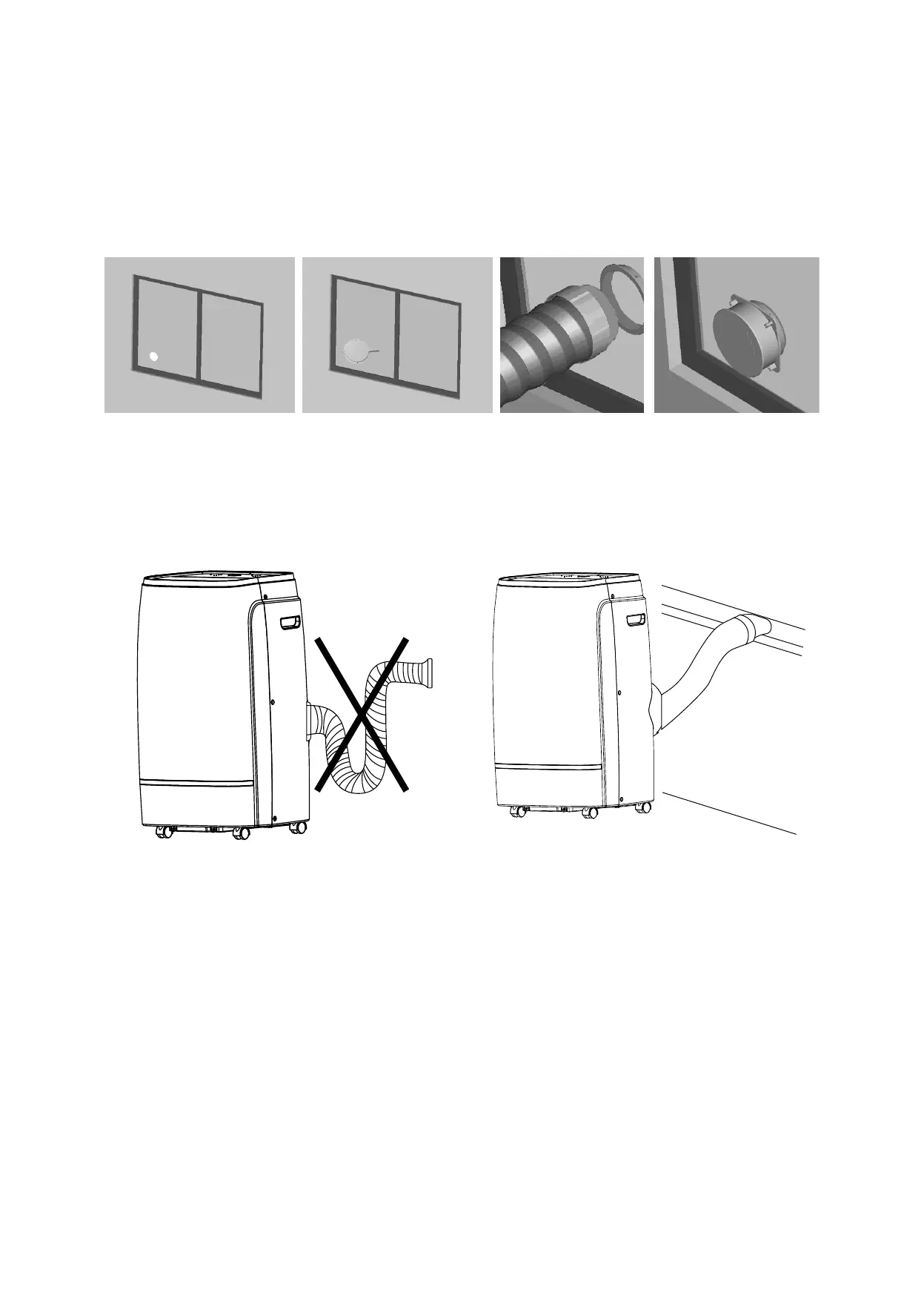

1. To make the hole in the glass it is advisable to take the porthole kit accessory to the glazier (Fig.1)
2. Insert the window unit into the window (Fig.2)
3. Insert the round tting into the retractable exible pipe and insert the latter with its round tting into the window
unit without the plug (Fig.3)
4. During periods of non-use, disconnect the hose and close the door with the cap (Fig.4)
(Fig. 1) (Fig. 2) (Fig. 3) (Fig. 4)
Avoid tight curves or bends in the exible hose.
If the air conditioner is not used for prolonged periods, disconnect the pipe and plug the window unit.
