6. the motor write down the four screws on the duct volute, remove
the motor.

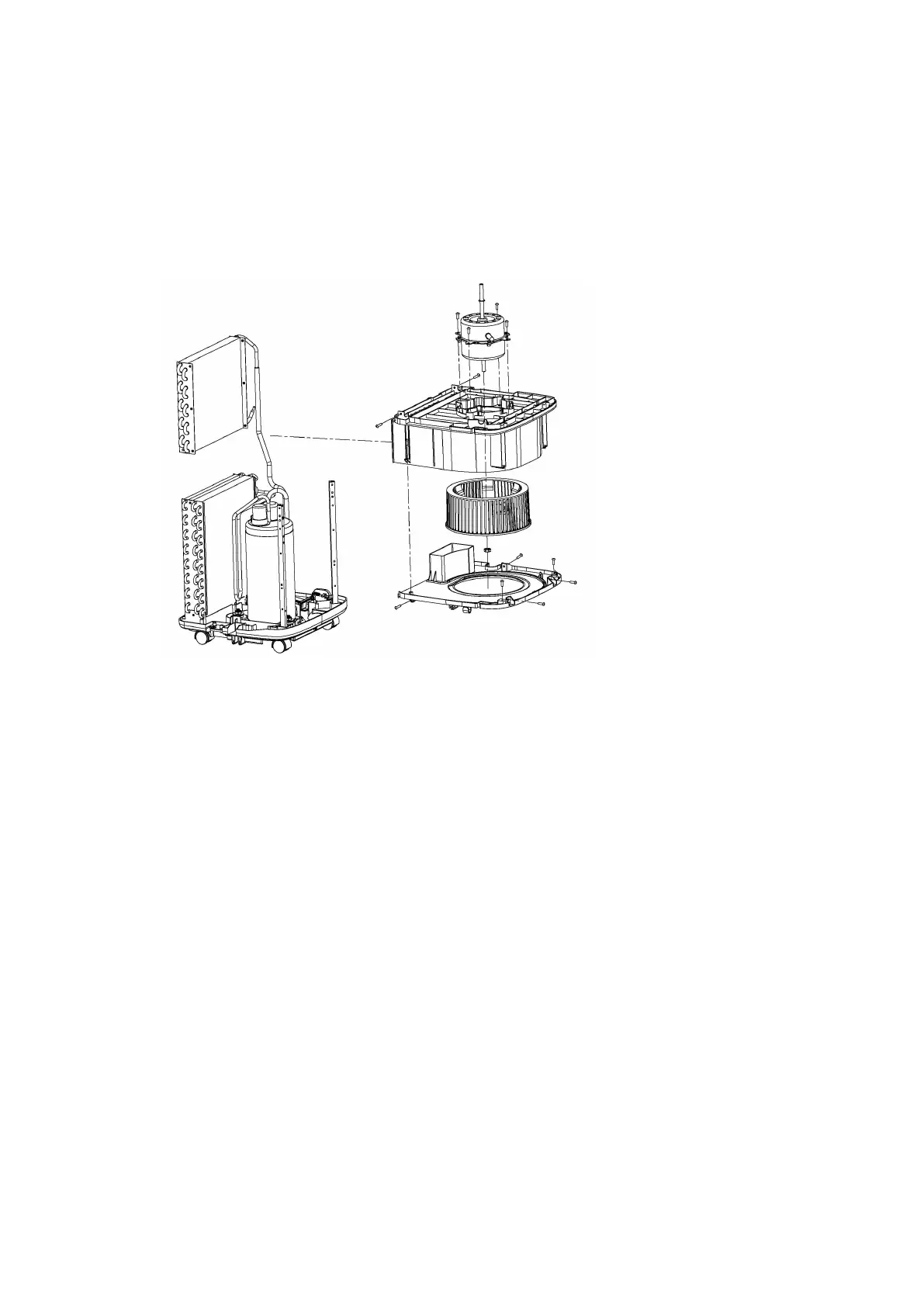

VIII. Dismantling of the refrigeration system
1. remove the two screws of the main bracket fixed on the chassis and
remove the main bracket.
2. the three nuts of the fixed compressor foot are rotated separately,
the nut and gasket are taken out, and the refrigeration system composed
of compressor, condenser and evaporator is raised upward. (Note that
the line must not break) to remove it from the chassis assembly.
