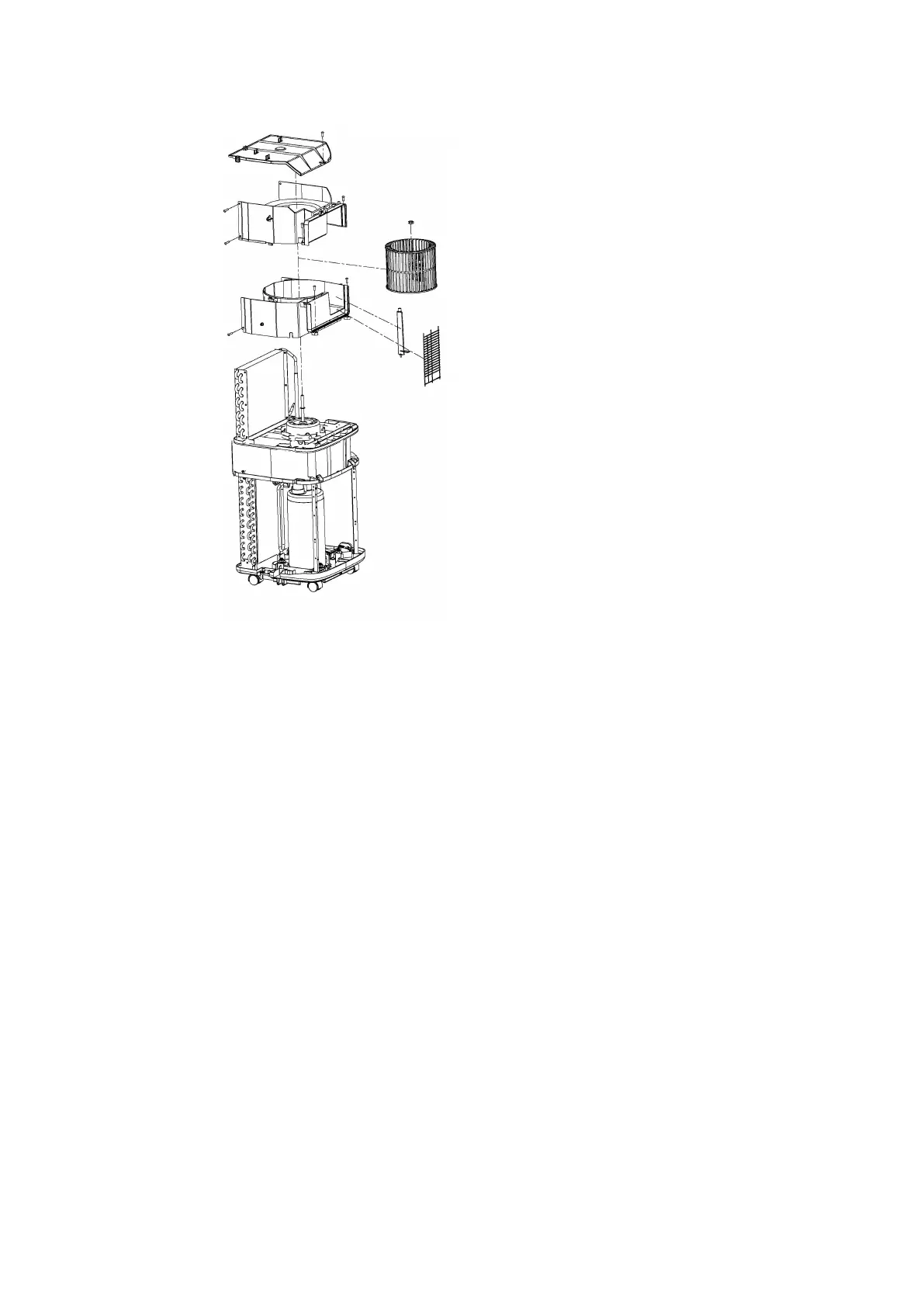

VII. Dismantling the volute of the lower duct
1. remove the screws fixed on the lower duct volute and on the left and
right sides of the evaporator.
2. remove the left and right side screws under the lower duct volute
and under the condenser.
3. remove the screw under the lower duct volute and the two supports,
then remove the lower duct volute assembly.
4. down duct volute and down duct volute left and right two screws and
the front two screws removed. Take the lower duct under the volute.
5. remove the inside wind wheel with the motor fixed nut. Take out the
wind wheel.
