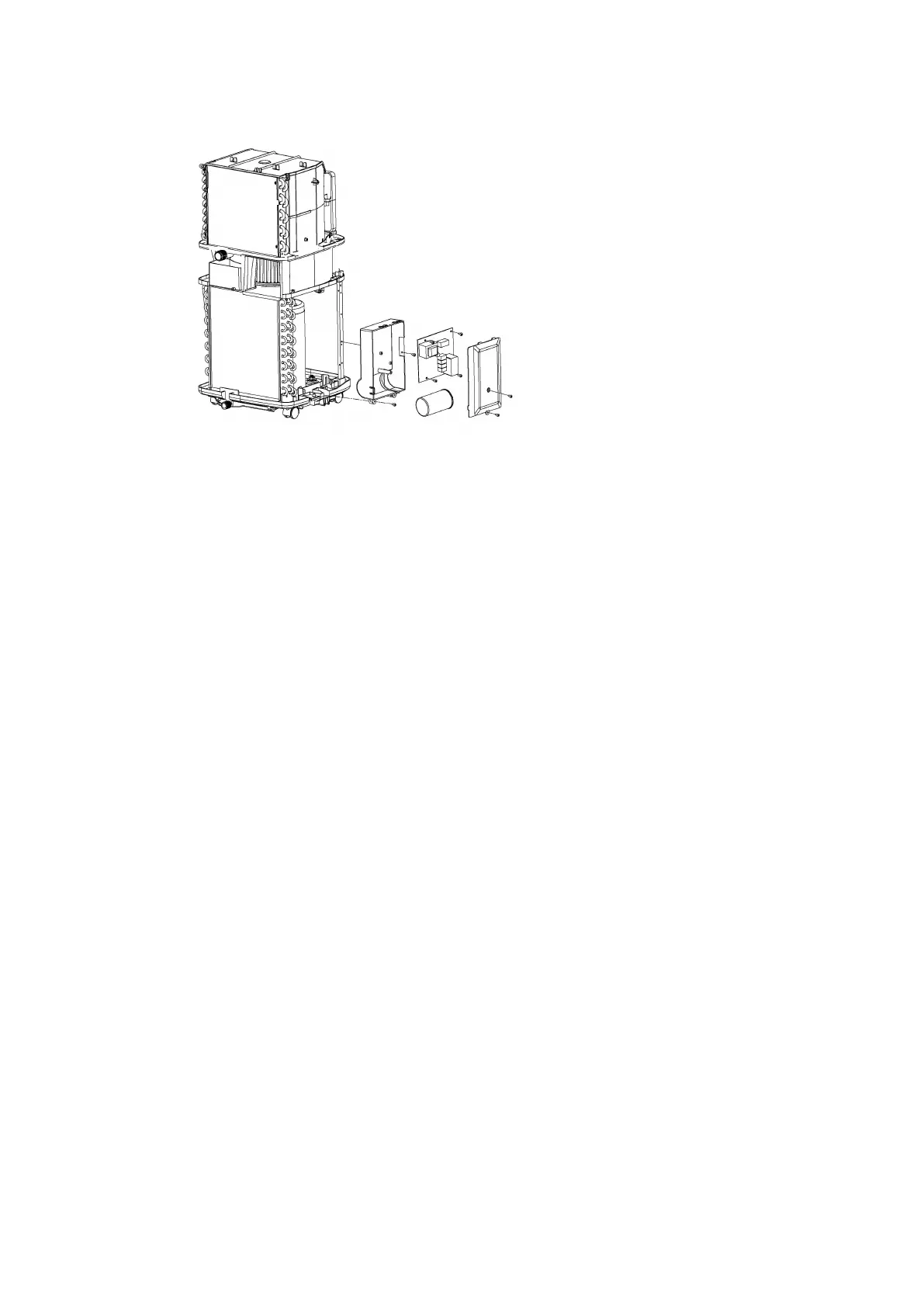

VI. Dismantling the volute of the upper duct
1. remove the top cover and three screws fixed to the upper duct
volute with a screwdriver.
2. use tools to fix the upper wheel blade do not rotate the lock in the
motor of the reverse nut removed to remove the wind wheel.
3. remove the four screws on the left and right sides of the upper air
duct volute and the evaporator end plate, then remove the two screws
fixed on the upper air duct volute and the front of the lower air duct
volute, and remove the upper air duct volute, vertical pendulum blade
and outlet air protective net.
4. remove the left and right screws fixed under the volute of the upper
air duct and the end plate of both devices, and then remove the two
screws fixed under the upper air duct shell and the front of the lower air
duct volute Out, and then the lower duct under the volute.
