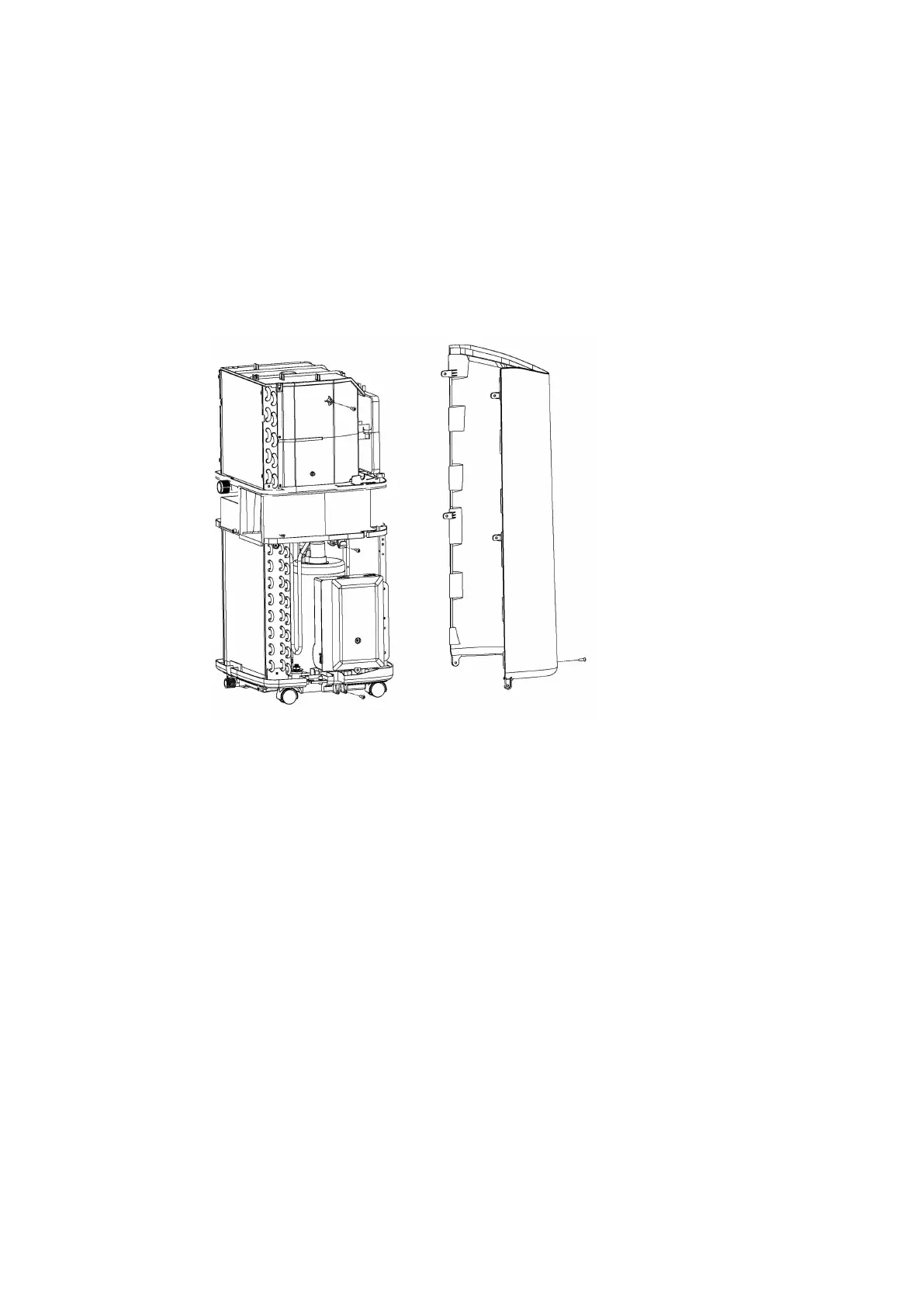

IV. Dismantling of the front shell
1. remove the left and right six screws fixed to the front housing with
the internal assembly with one screw at the front bottom.
V. Dismantling the electronic control box
1. remove the two screws on the cover of the electronic control box
and pull out the electronic control box.
2. remove the four screws of the PCB main board and the electronic
control box with a screwdriver, and remove the fastened to the
electronic control box.
3. remove the two screws of the electronic control box with the chassis
and sheet metal support with a screwdriver.
