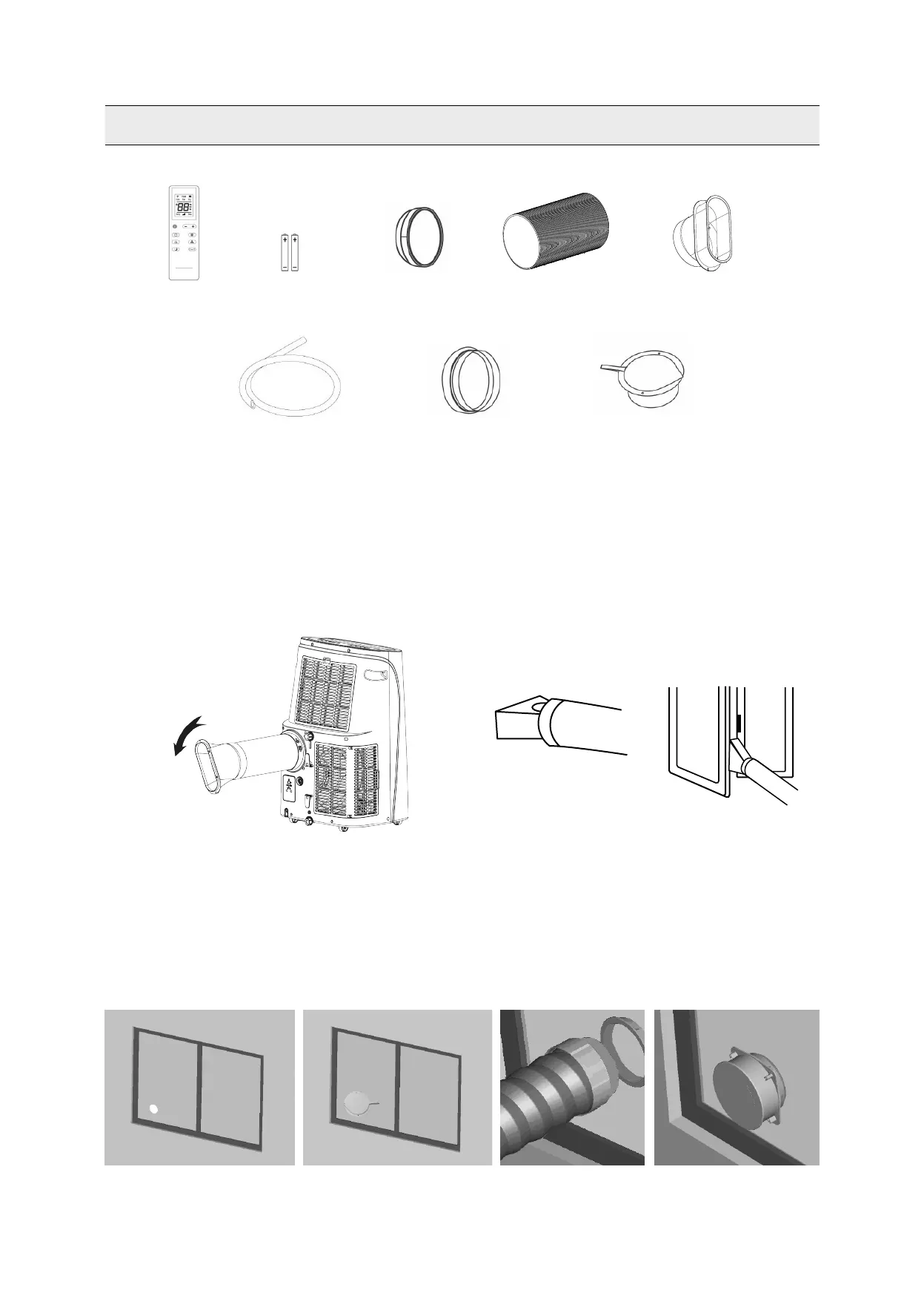

APPLIANCE START-UP
Open the packaging and pull out the box. Remove the product and the other elements supplied (illustrated in the box
below).
Hose
of expulsion
of the air
Terminal flat fitting
to be placed between
window knockers
Porthole kit with cap
(2 pcs)
Condensate drainage pipe
to be used to empty the
internal tank
Battery for remote controller
type AAA – LR03 – 1,5 V
Fitting to apply
on the unit to which
connect the exhaust pipe
of the air
Circular fitting for kit
porthole to be positioned between the
final part of the tube and the porthole
Remote
controller
USE WITH END FITTING FOR WINDOW
1. Stretch the exible hose sufciently so that it reaches the outside (max 1.5 m). Hook the tting for the unit to the
exible hose, while at the other end of the hose hook the at terminal connector to be positioned between the two
window leaves (Fig.1).
2. Open the window and lock one of the doors with the handle. Rest the terminal tting on the xed leaf, bring the
other window leaf close (Fig.2).
(Fig. 2)
(Fig. 1)
USE WITH WINDOW UNIT KIT
1. To make the hole in the glass, it is also advisable to take the porthole kit accessory to the glazier (Fig. 1).
2. Insert the porthole into the window (Fig. 2).
3. Insert the circular connector for the porthole kit into the retractable hose and insert the retractable hose with the
circular connector into the porthole without the cap (Fig. 3).
4. When not in use, disconnect the hose and close the porthole with the cap (Fig. 4)
