ARGON18 E-112 - Saddle Adjustment

E-112 : 5. Saddle adjustment

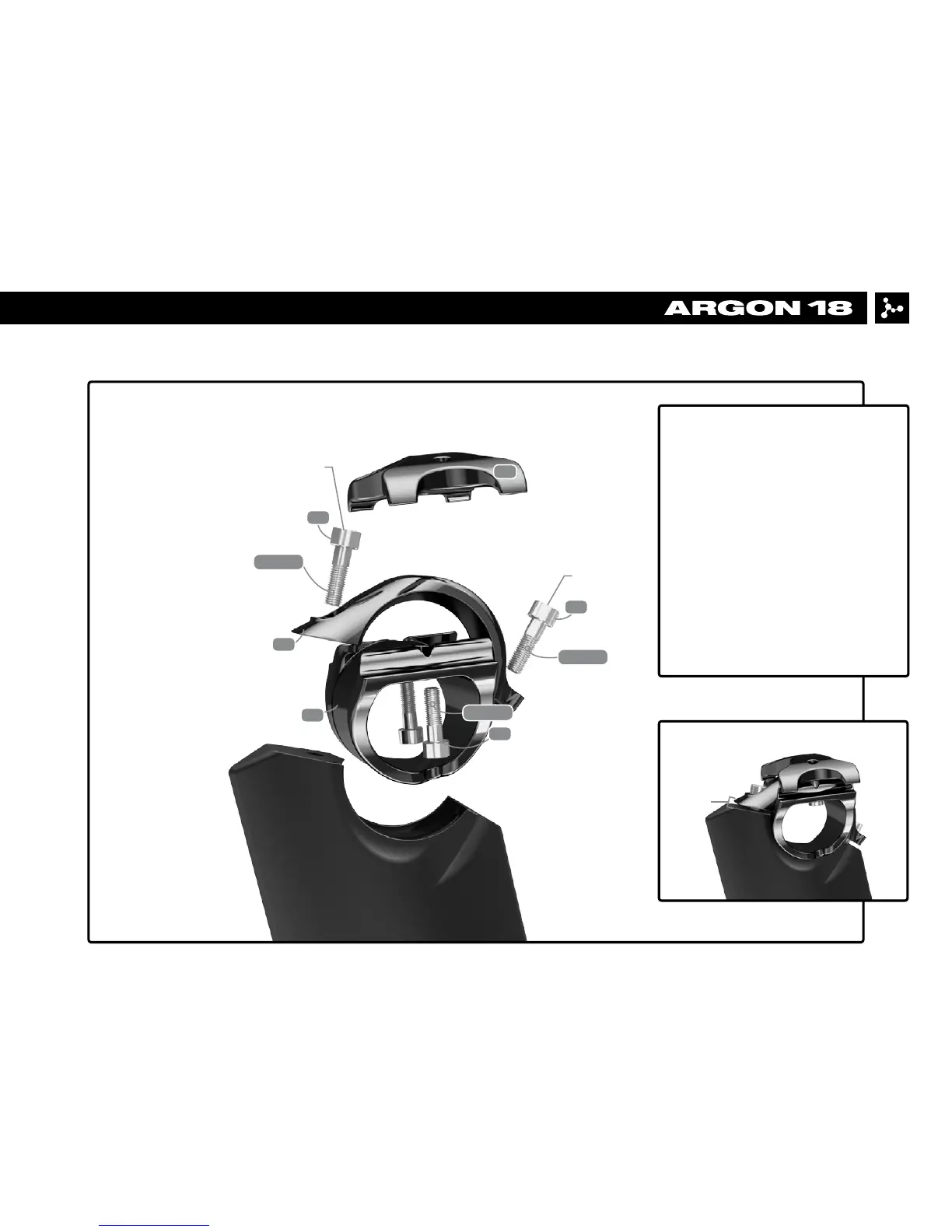

1. Install the saddle on the rocker (3f)
and slightly tighten the rail clamp (3e)
using a ball end hex key.
2. Tighten the upper screw of the rocker
clamp (3a) by keeping a space of 2
to 3mm between the aluminum and
carbon parts.
3. Adjust the angle of the saddle and
tighten the lower bolt of the rocker
clamp (3b).
4. Adjust the saddle oset and nalize
the tightening of the rail clamp (3c).
9
3b
3c
3d
3a
3f
3e
GREASE
8Nm
2-3mm
8Nm
GREASE
GREASE
