ARGON18 E-112 - Cable Housing Installation

1. Install the front and rear derailleur
cable housing starting at the head tube.
2. Install the rear brake cable housing
starting at the head tube.
For the derailleur and brake housing,
measure a sucient length of housing
to be able to turn the handlebar both
ways correctly.
See the table below for the cable housing
suggested length.
Suggested lengths of the cable housing
housing/size
Front brake
Rear brake
Front derailleur
Rear derailleur
Rear derailleur
(rear section)
58cm
136cm
140cm
140cm
40cm
60cm
138cm
142cm
142cm
40cm
62cm
140cm
144cm
144cm
40cm
64cm
142cm
146cm
146cm
40cm
XS S M L
6

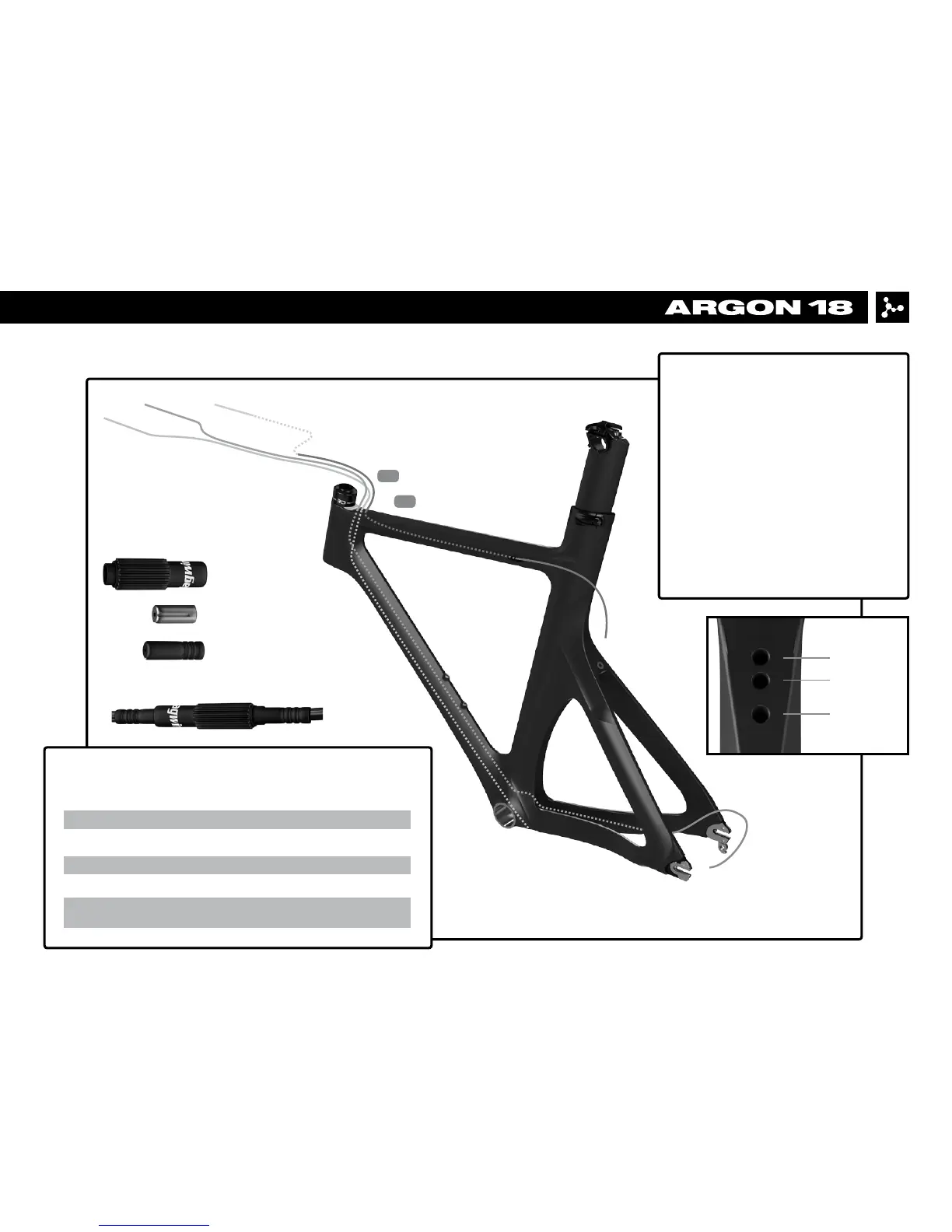

E-112 : 3. Cable housing installation
2
1
A : barrel adjuster
B : metal cap
C : plastic cap
C
C
CC
C
B
B
C
C
speed adjustment : C+A+C
Rear derailleur
Front derailleur
Rear brake
12h
