It’s better to install the cable housing
before installing the bottom bracket,
crank and fork.
Rear derailleur: Pass the cable housing
inside the frame starting at the rear
derailleur hanger until it comes out the
top tube.
Front derailleur: Remove the cable
guide (9) under the bottom bracket.
Pass the cable housing inside the
downtube until it comes out the top
tube.
Add a plastic cap at the end of the
housing, pass the rear derailleur cable
inside the housing and x the cable
guide under the bottom bracket with
the 5mm screw (1.5 Nm).
For a Di2 conguration, use the bottom
bracket dedicated cover (10) for
electric shifting.
10

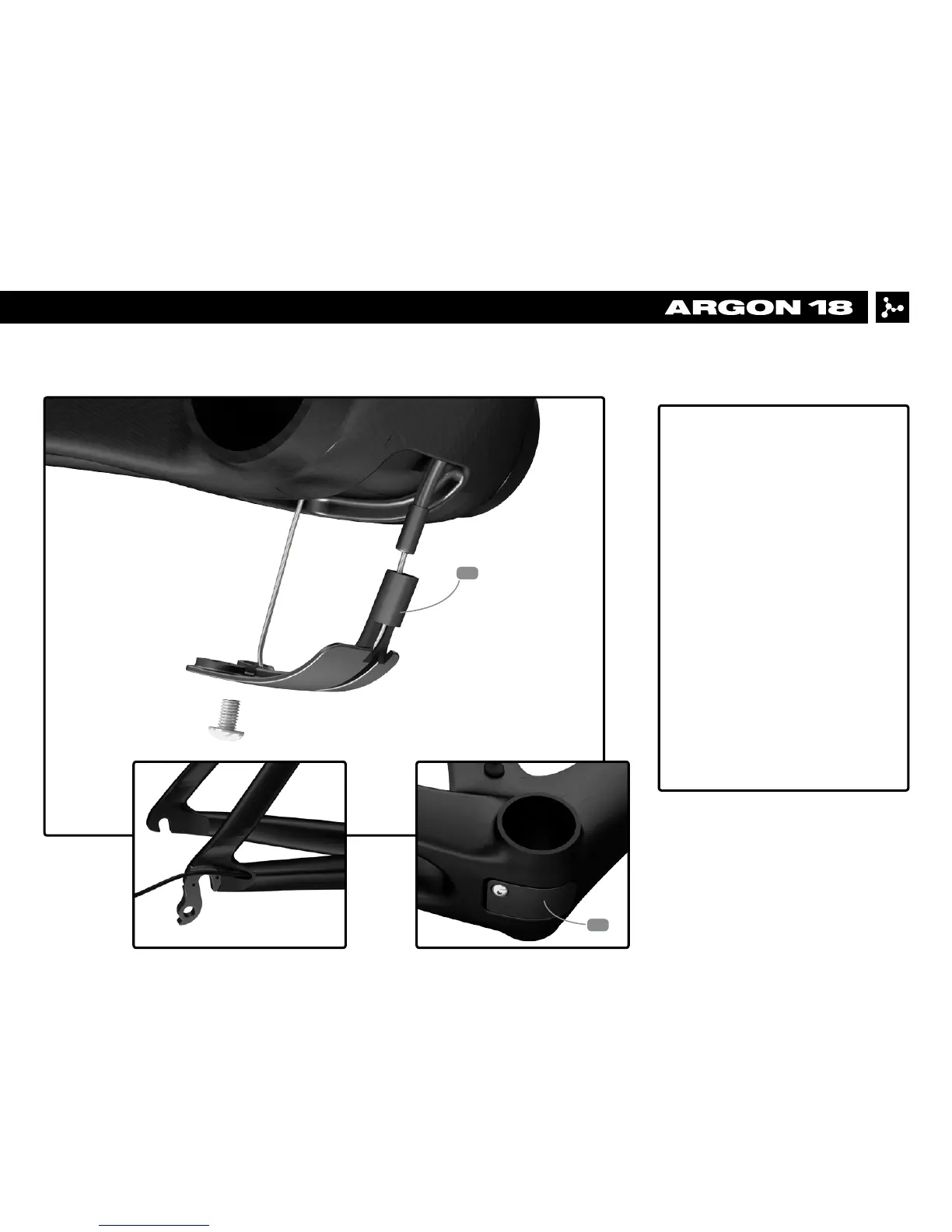

NITROGEN : 3. Cable housing installation (continued)
