Argos Malibu - Fit Main Drawer and Prepare Door

Assembly Instructions

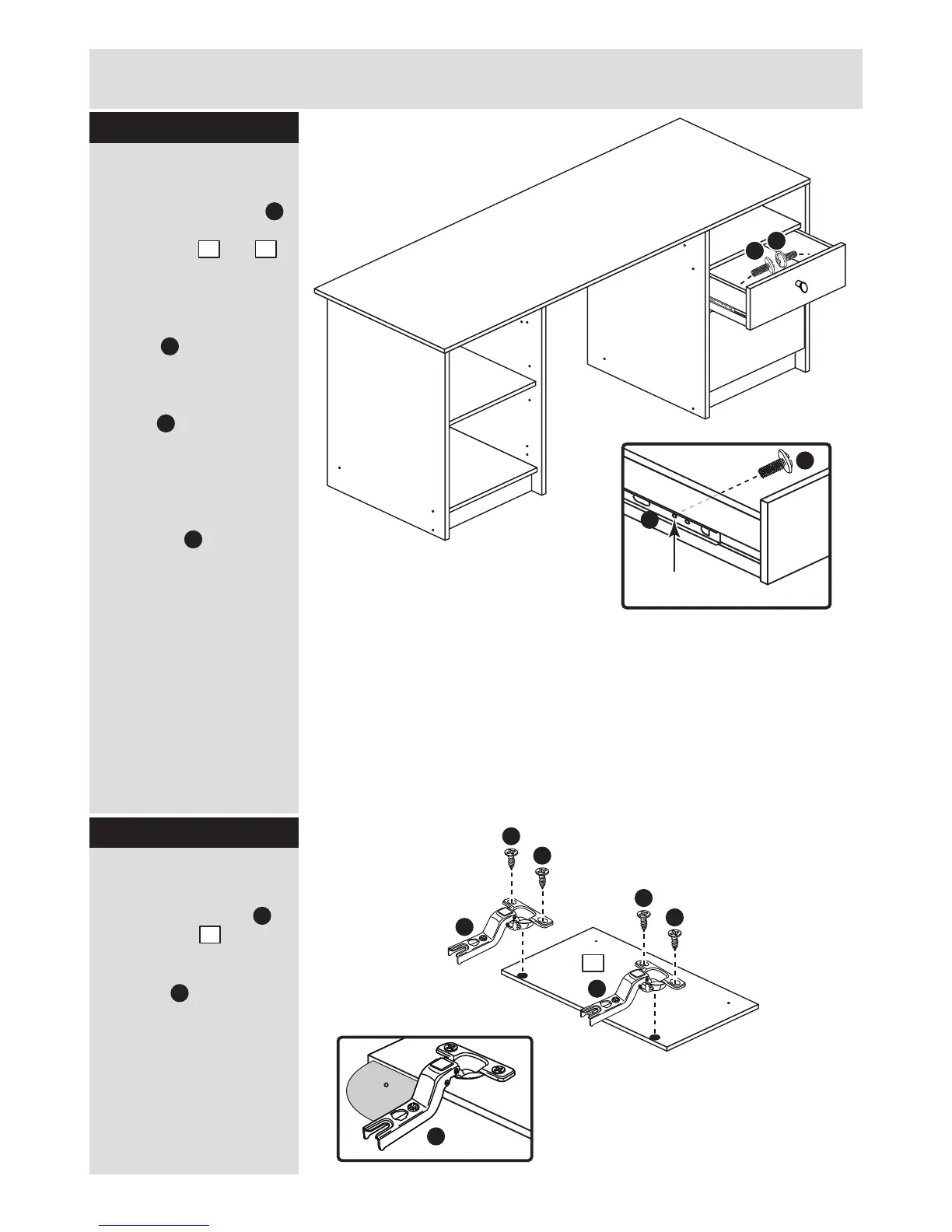

Step 38
20
Prepare the door
Push fit the 2 hinges
into the door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
P
15
H
Step 39
Step 27
Fit the drawer
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
S
Q
Q
S
2nd threaded
hole
Q
S
17 18
S
S
15
P
H
H
90
P
P
H
H
