Argos Mix - Fitting the Back Panel; Preparing and Fitting the Door

Assembly Instructions
7
Step 10
b:
D

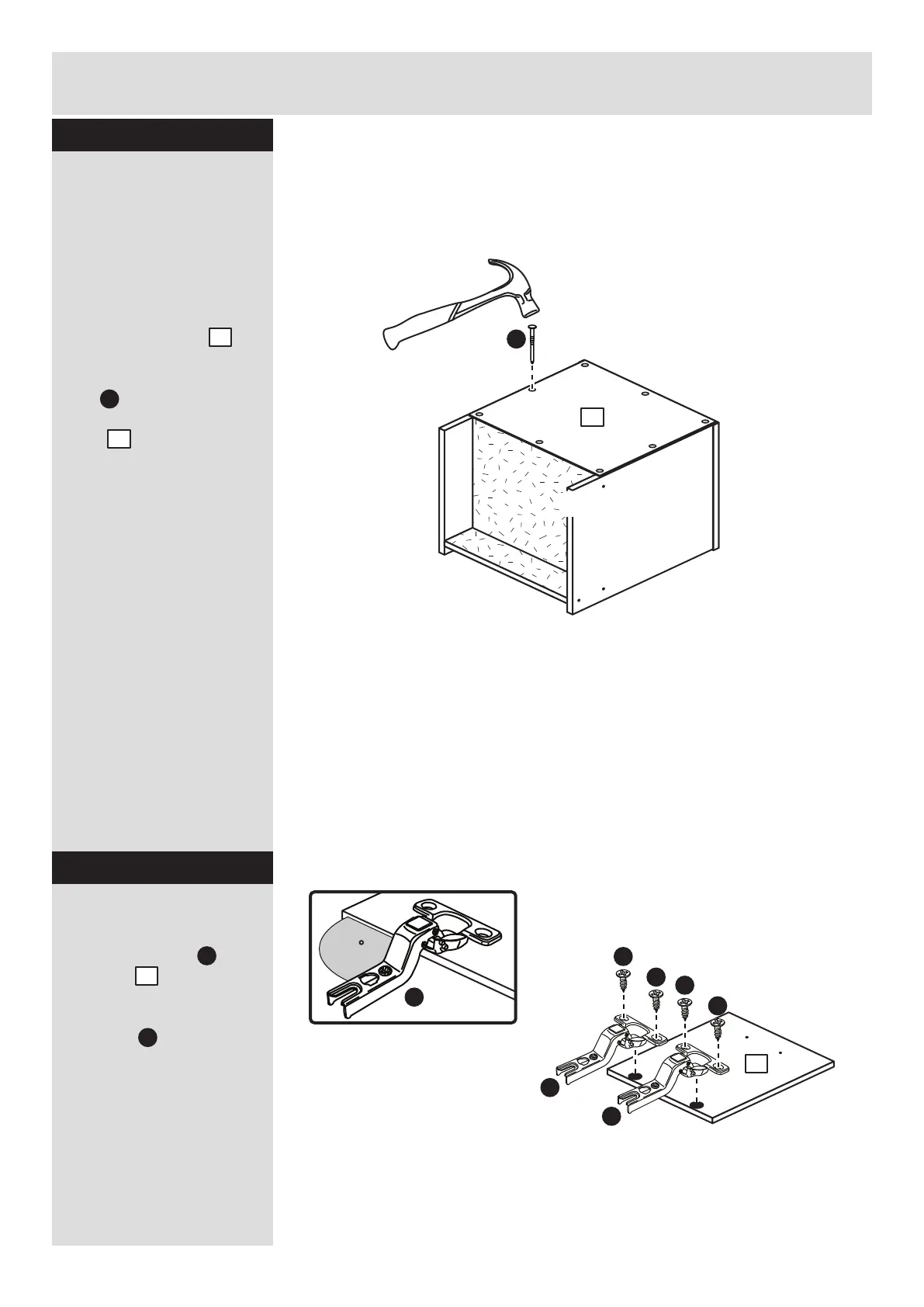

Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Stand the unit up.
7
D
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
7
7
Step 11
Prepare the door
Push fit 2 hinges into
the door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
