Assembly Instructions
8

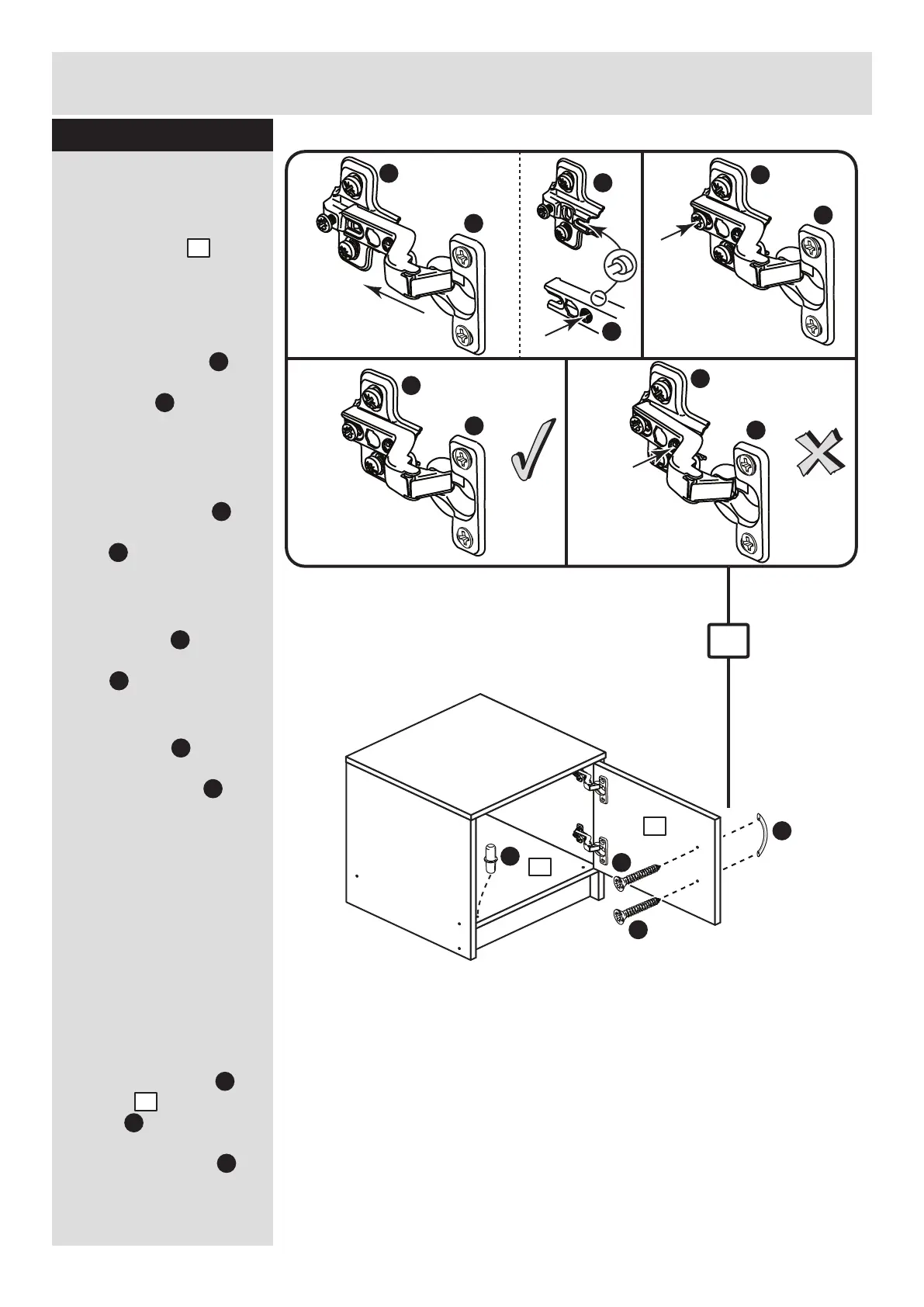

Step 12
H
H
K
Fit door and handle
Note: The easiest way to
attach the door is to
fit the top hinge first,
then align and fit the
other hinges.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
the door using 2
screws .
Push the door stop
into one of the holes in
the base.
M
M
M
L
L
L
M
L
K
H
6
6
a: b:
c: d:
L
M
L
L
B
L
M
M
M
A
M
L
B
e:
6
This shows the door being fitted to hinge plates on the right
side and the door stop being fitted to the left hole in the base.
You may have chosen to fit your door on the left side and will
need to fit the door stop to the right hole in the base.
C
C
