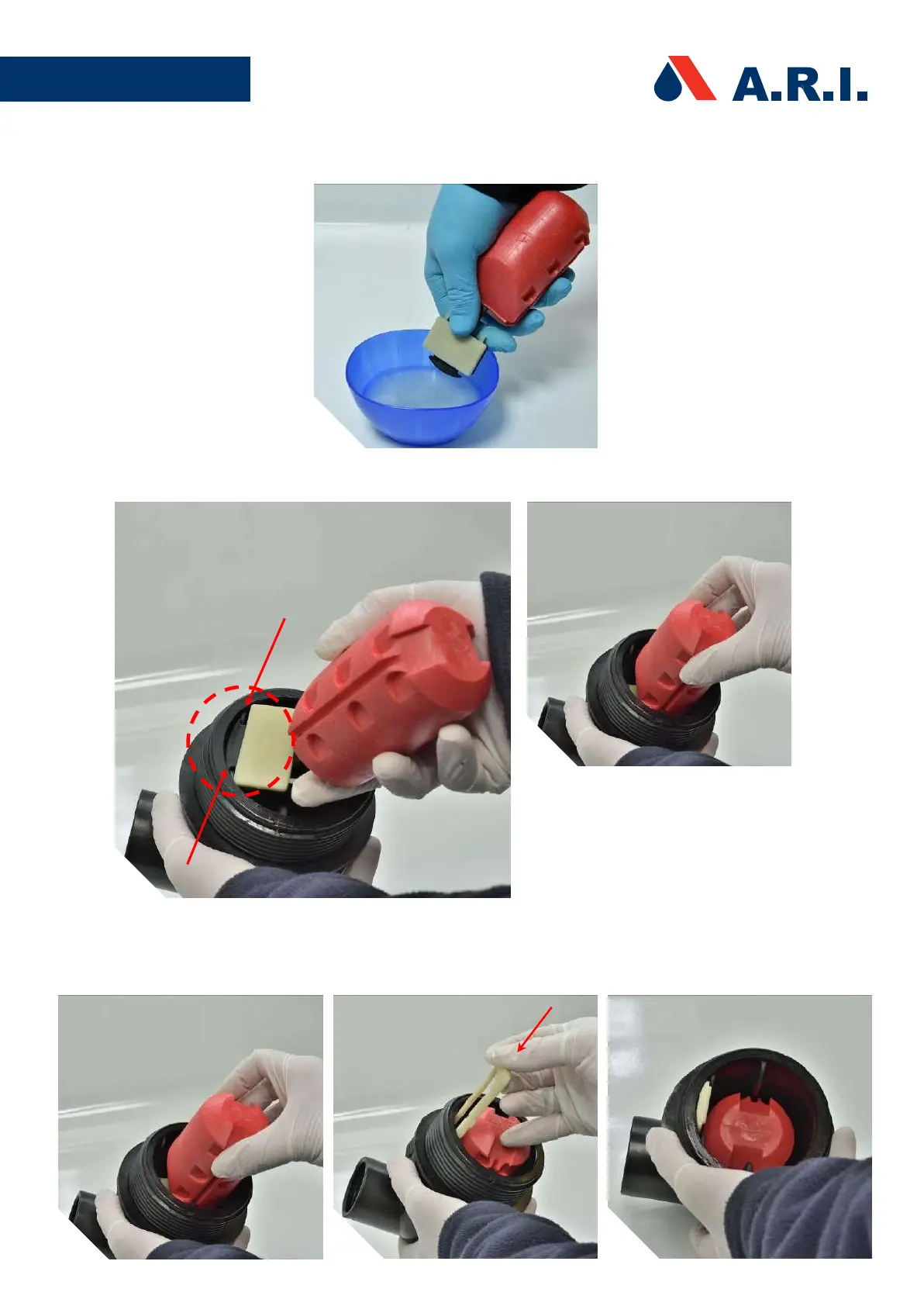

5.3.5. Reassembling the Operating Valve
• Dip the head end of the Rolling Seal into the liquid soap solution [1]
• Reassemble the Operating Valve by inserting the loose end of the Rolling Seal into its designated groove in the
Body [2] & [3], making sure that the insertion direction of the seal’s end is as shown by the arrows.
• Insert the Float halfway into the Body [1], insert the Clamping Stem into the Rolling Seal groove of the Body;
make sure that it is inserted in the direction of the arrow [2]. Push the Float and the Clamping Stem together
downwards into the Body until they are locked [3].
