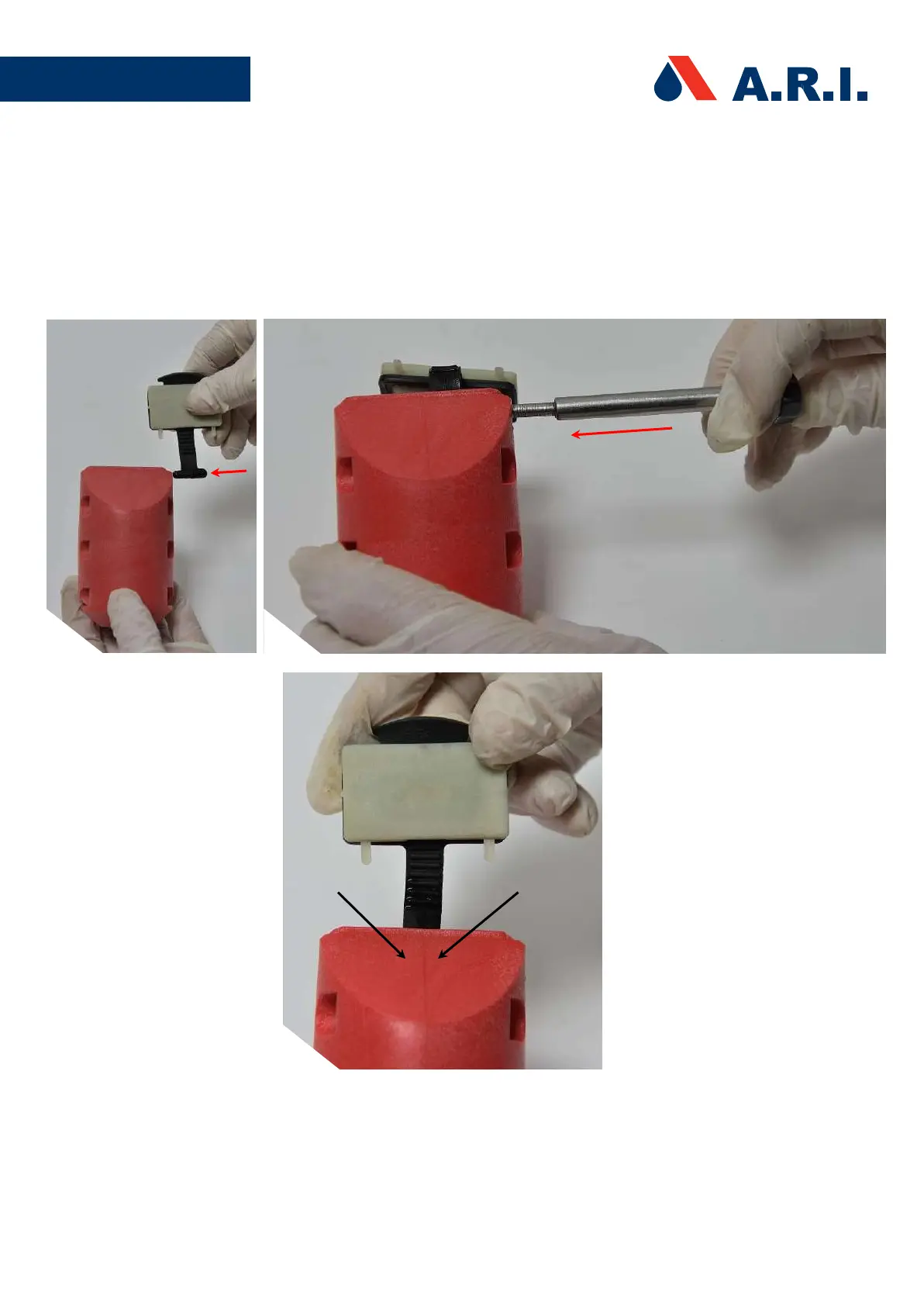

• Pay attention to the correct position and direction and insert the tail end of the Rolling Seal Assembly into the
groove on the Float [5].
• Gently pull the Rolling Seal Assembly until it is partially inserted into the Float grove. Use the 4.5mm Roll Pin
Punch to push the Rolling Seal Assembly to the middle of the Float [6] and align the middle of the Rolling Seal
Assembly tail with the midline of the Float [7].
5
6
7
