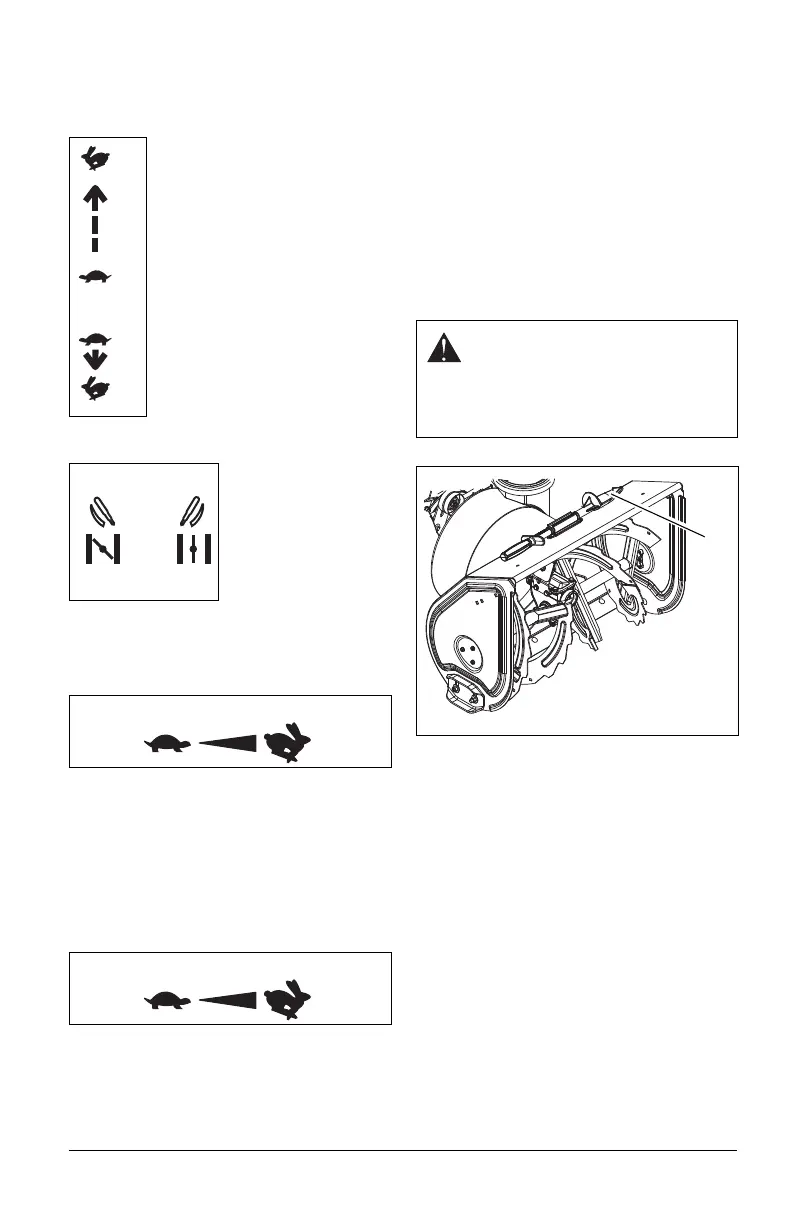

Ariens 921024 - Operation - Controls and Tools; Speed Selector, Choke, and Throttle

EN - 20
Speed Selector
Position the Speed Selector in the
appropriate speed notch to control forward
and reverse travel.
Forward:
(6) Fastest
(1) Slowest
Reverse:
(1) Slow
(2) Fast
IMPORTANT: DO NOT change
motion from forward to reverse
with clutch engaged. Forward
speed can be changed without
declutching.
Choke Control Knob
1.Choke Closed
position: chokes off air
to engine for easier
start.
2.Choke Open
position: allows for
normal operation.
IMPORTANT:
Gradually open choke after engine starts.
Throttle
(Models 921023, 035, 036)
The throttle controls the engine speed. To
increase or decrease the engine speed,
adjust to:
1.
F
ast
2.
P
art Throttle
3.
Slow
Throttle (Models 921024, 028, 029,
030, 032, 037)
The throttle controls the engine speed. To
increase or decrease the engine speed,
adjust to:
1.
F
ast
2.
Slow
Electric Starter
The electric starter will start a properly
choked and cranked engine when the starter
button is pushed. Refer to Starting and Shut
Off on page 24.
Recoil Starter Handle
When pulled, recoil starter handle will turn
engine over.
IMPORTANT: DO NOT let recoil starter
handle snap back against starter.
Snow Clean-Out Tool
(Figure 19)
To clear the discharge chute:
1. Shut off the engine.
2. Wait 10 seconds and make sure impeller
blades have stopped rotating.
3. Remove the snow clean-out tool (1) from
the auger housing and use it to remove
the clog from the discharge chute.
4. Replace the snow clean-out tool on t
he
auger housing.
Remote Deflector Control
Place deflector into position before operation.
DO NOT throw snow any higher than
necessary.
Place deflector remote in a forward notch to
throw snow lower. Place deflector remote in a
rearward notch to throw snow higher.
6
1
1
2
CHOKE
RUN
2
1
3
2
1
2 1
WARNING: Hand contact with the
rotating impeller is the most
common cause of injury associated
with snow throwers. Never use your
hand to clean out the discharge
chute.
Figure 19
1. Snow Clean-Out Tool
