GB - 12
Standard Models

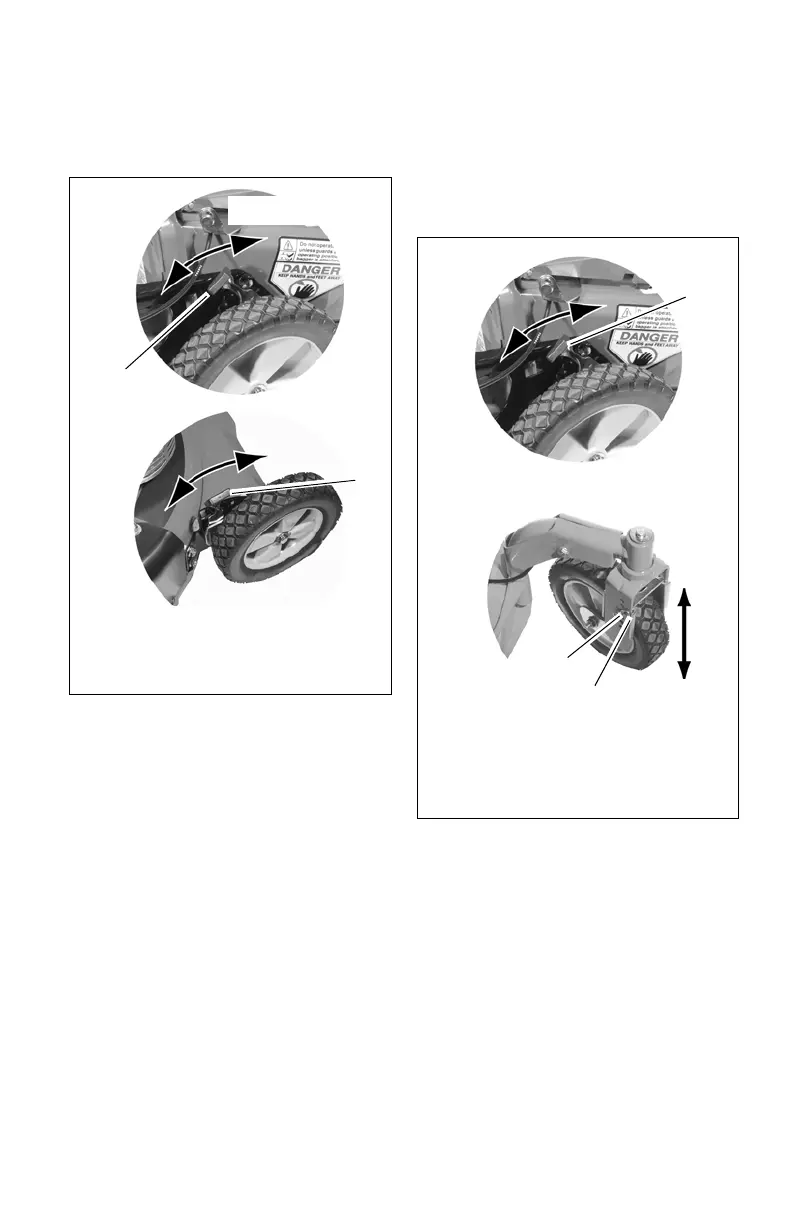

To change cutting height, move cutting height
levers one notch at a time on each wheel to
set desired height (Figure 5).
NOTE: Each wheel on mower must be set at
the same height for a level cut.
Swivel Wheel Models
(911194)
To change front wheel cutting height, insert
height adjuster pin into the holes that match
the desired cutting height and fasten with key
ring (Figure 6).
To change rear wheel cutting height, move
cutting height levers one notch at a time to
set the desired cutting height.
OPTIONAL CONTROLS
Primer Bulb (911192, 193, 194)
Push the primer bulb in to add fuel for easier
engine start.
High
HighLow
Figure 5
1. Cutting Height Lever
1
1
OM0165
Front
Rear
Low
Figure 6
1. Cutting Height Lever
2. Height Adjuster Pin
3. Key Ring
1
2
3
Rear
Front
High
Low
OM1270
