Operating Instructions, Powered Grass Collector
Page 9

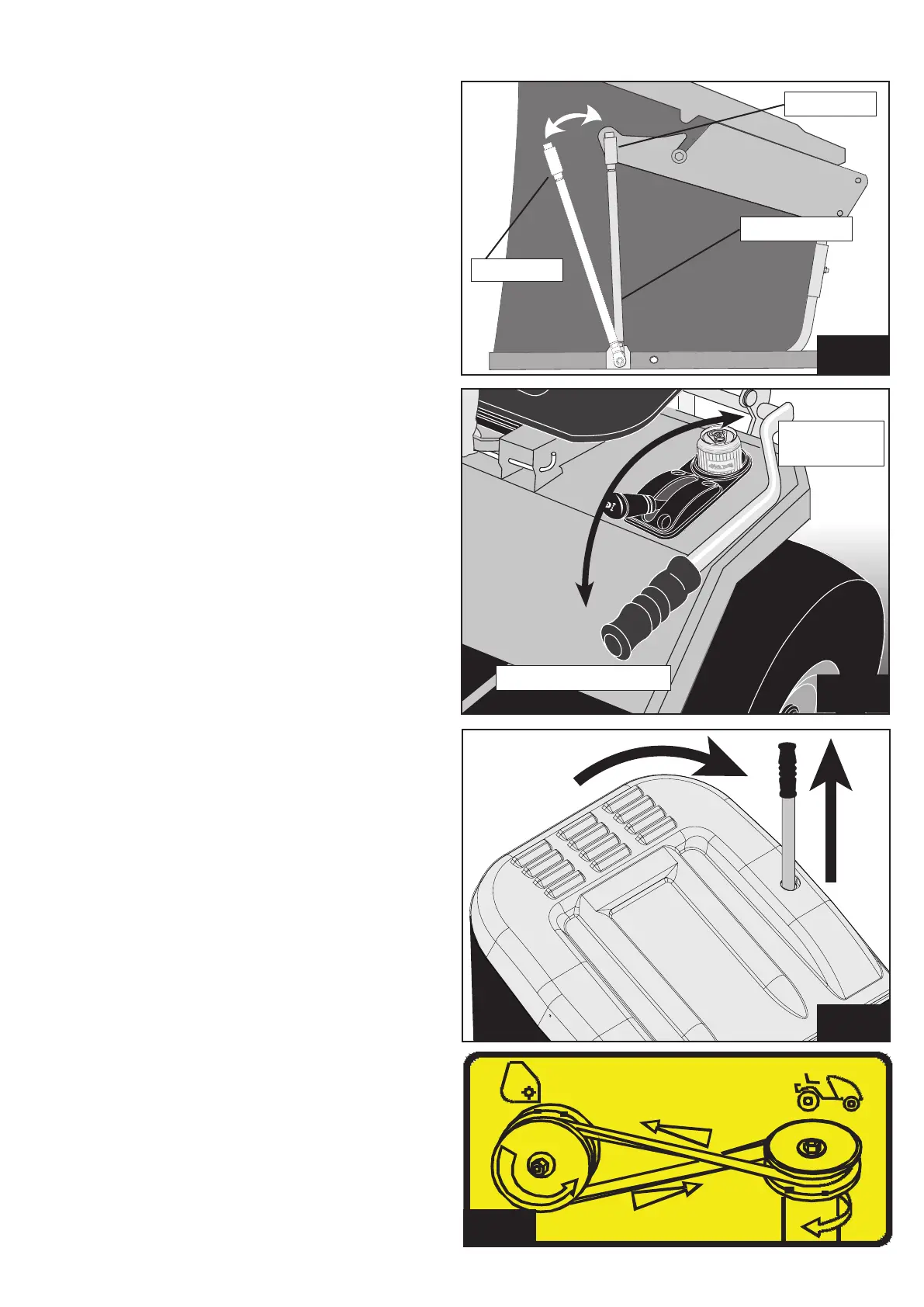

fig. 20
Net Rod
Position X
Position Y
fig. 18c
Transport Position
Collecting
Position
fig. 19
fig. 19a
Fitting the Net
(C350H Mini, C Series) (Fig. 18c)
Fit the Net as shown in Figure 18c with the net rod in
position ‘X’. To remove the net, release the net rod and
secure in the removal position ‘Y’.
Manual PGC Lift Lever (Fig. 19)
Using the lever (gure 19) raise or lower the
Powered Grass Collector to either the Transport
position or the Collecting position.
To Tip Cuttings
(C350H Mini, C Series) (Fig. 19a)
First turn off the engine. When the collector is full,
raise the collector to the transport position. Drive
to your tipping area, reverse to the grass pile, and
select neutral if the tractor is manual. Then extend the
tipping lever and pull it towards the seating position.
This pivots the collector and so empties the collector.
Once the grass is off-loaded return the collector to the
upright position and put the tipping lever in its original
position.
Installing the Drive Belt (Fig. 20)
First turn off the engine. Place the drive belt over the
PTO pulley of the Powered Grass Collector, and then
feed it underneath the PTO ap. Then feed around the
PTO pulley. Be sure that this is installed the right way
round otherwise the brush will work in reverse and
collection will be poor. Lock the Locating Lever over
the Lift Arm Lugs (this also tightens the PTO Drive
Belt). Rotate the Locking Clips over the Locating Lugs
to securely lock the Powered Collector in place. To
disconnect, reverse this procedure.
ALWAYS CHECK BELT TENSION IS 19mm
DEFLECTION AT 2KGs PRESSURE. Refer to page 15
for adjustment instructions.
