Net Assembly
Net Assembly
Locating Lever
Pivot spacer
Net Rod
Net Rod
Locking Clip
Locking Tube
2nd Locking Tube
Securing Pin
Securing Pin
Locking Tube
Locking Clips
Lift Arm Lugs
Locking
Lever
Collector
Channels

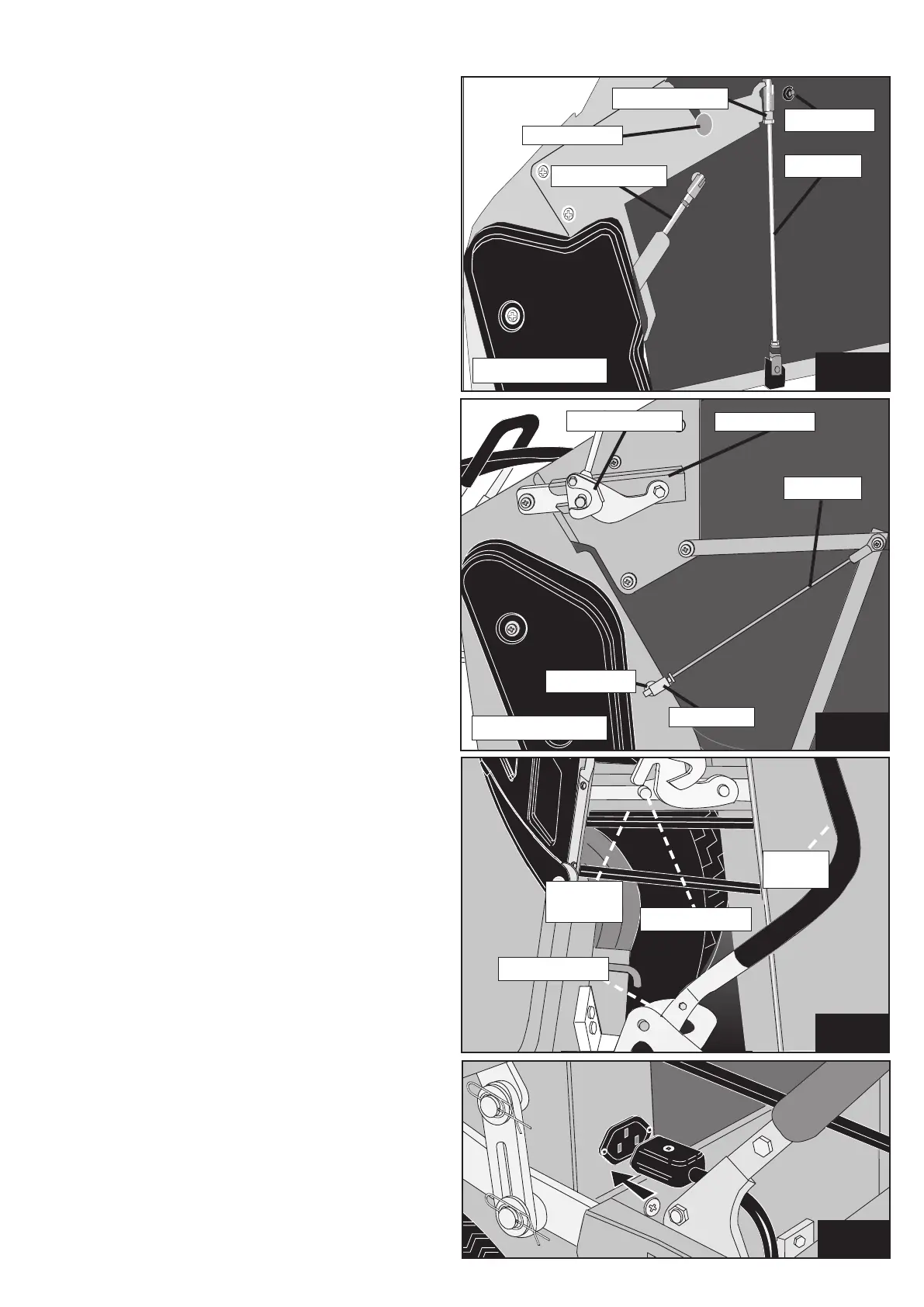

fig. 21a
fig. 21
fig. 22
Operating Instructions, Powered Grass Collector
Page 10
fig. 23
Removing and fitting the Net
(C Series fitted with Electric Net) (Fig. 21)
First turn off the engine. When removing the net, we
suggest you employ the assistance of another person.
1. Partially open the PGC net (100mm (4”)).
Disconnect the net rod by pulling back on the
sprung locking tube and uncoupling it from the
pin. The locking tube should then be attached to
the securing pin. The process should be repeated
on the other side.
2. Disconnect the second locking tube from its pin.
3. With one person standing on each side of the
collector net, lift the net off the bag ears.
4. Reverse the above operations for fitting
the net.
Removing and fitting the Net
(A Series fitted with Electric Net) (Fig. 21a)
First turn off the engine. When removing the net, we
suggest you employ the assistance of another person.
1. Partially open the PGC net (100mm (4”)).
Disconnect the net rod by pulling back on the
sprung locking tube and uncoupling it from the
pin. Repeat on the other side.
2. Undo the net locking clip (both sides), then
unhook the levers from the locating pins.
3. Disconnect the Locking Tube Ball Joints.
4. With one person standing on each side of the
collector net, slide the net off the locating arms.
5. Reverse the above operations for fitting
the net.
PGC Connection
(Tractors fitted with Electric Net) (Fig. 22)
First turn off the engine. To connect the Powered Grass
Collector (PGC) to the tractor, ensure that both are on
an even surface with the locking levers on the collector
facing the Lift Arms on the tractor. Lift the seat and the
PTO ap so that both are resting in the upright position.
Move the Collector manually to the tractor; lower the Lift
Arms using the button on the dash console.
At the end of each Lift Arm you will nd a Locating
Lug. Slide the Channels on either side of the Powered
Collector over the Lugs but do not engage the Locating
Lever yet. Ensure that the Rubber Flap at the opening
of the PGC locates on top of the Transmission Grass
Deector.
Net Empty Plug (where fitted) (Fig. 23)
If tted, connect the net empty plug to the socket as
shown in Fig. 23, to disconnect, reverse this procedure.
This plug MUST BE FITTED before attempting to use
your Powered Grass Collector.
