Ariens Edge Series User Manual

EN - 18
See Figure 18.
6. Loosen lock nut on height-adjustment
bolt.
7. Turn bolt in or out until levers are at the
same height.
8. Tighten lock nut.
Adjust Steering Level Reach
See Figure 19.
1. Loosen hardware securing steering lever
to upper control arm.
2. Pivot steering lever to desired position.
3. Ensure levers are aligned with each
other.
4. Tighten hardware.

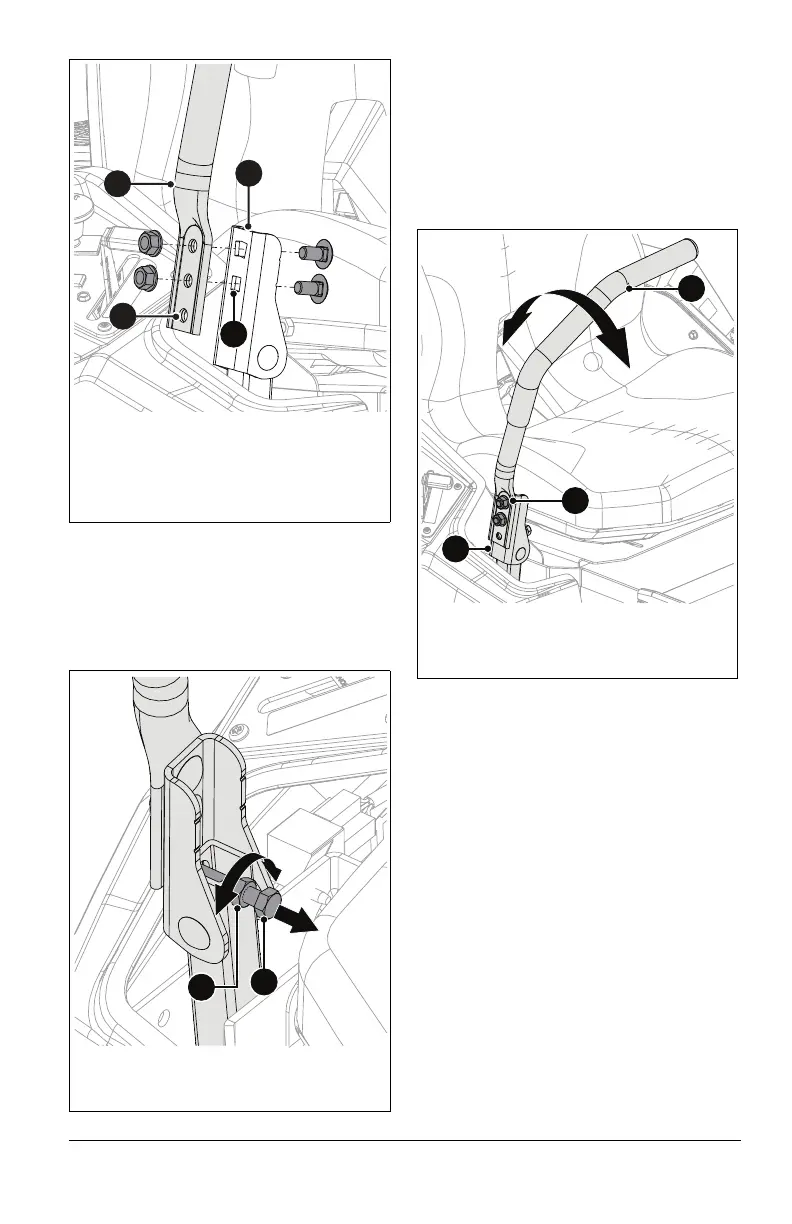

Figure 17
3
4
2
1
1. Adjusting Hole
2. Mounting Hole
3. Steering Lever
4. Upper Control Arm
Figure 18
1
2
1. Lock Nut
2. Height-adjuster Bolt
2
3
1
1. Steering Lever
2. Upper Control Arm
3. Hardware
Figure 19

Ariens Edge Series Specifications

General

Engine Brand	Briggs & Stratton
Deck Material	Steel
Number of Blades	1
Starting System	Recoil
Drive System	Rear Wheel Drive
Mulch Capable	Yes
Side Discharge	Yes
Rear Bag	Optional
Mulching Capability	Yes
Bagging Capability	Optional
Side Discharge Capability	Yes
Engine	Briggs & Stratton
Cutting Width	21 inches
