3.3 Boat assembly
CLASSIC
In the CLASSIC model the floorboard is to be assembled.
After assembling the floorboard to the boat still flat, the floorboard must be
inserted under the straightedge located on the transom, which is used to
lock the floorboard.
Tube
(flat)
Wooden
floorboard
Transom
Strai
hted
e

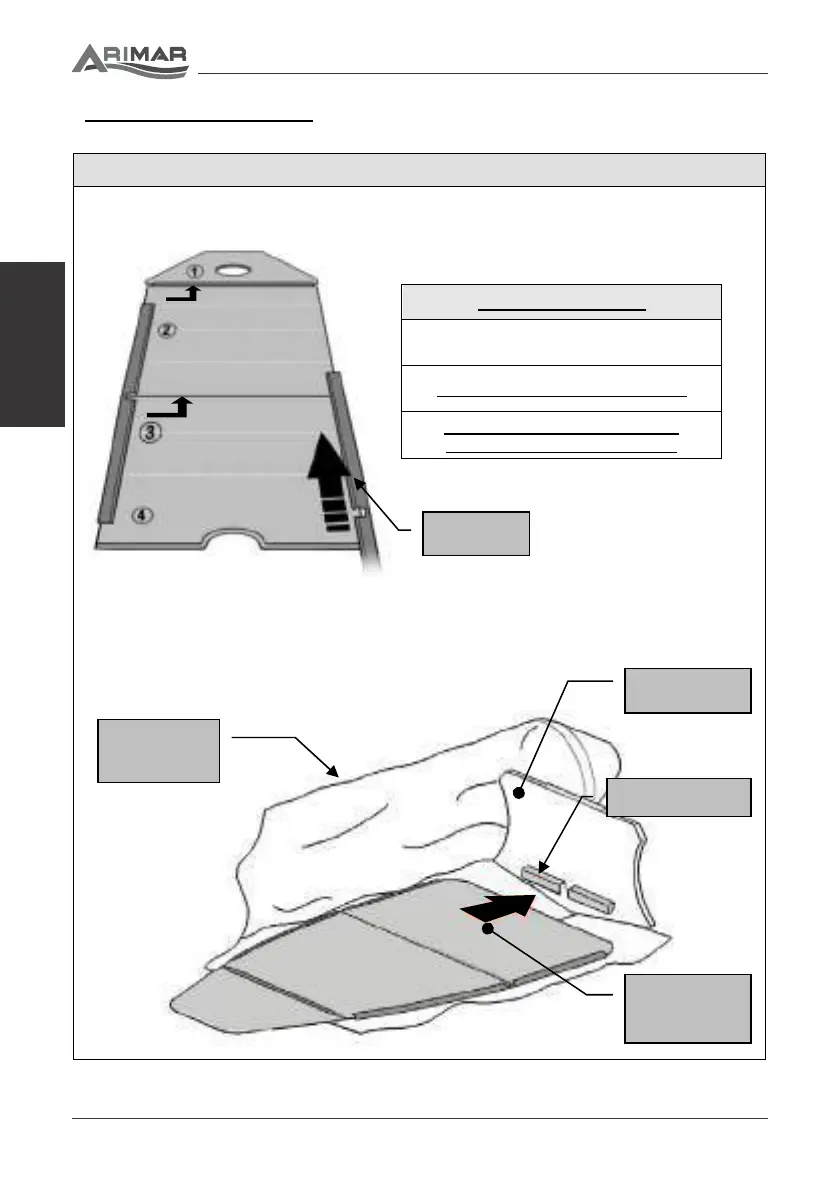

Mounting instructions
Starting from last piece, insert the parts
as shown in the image
insert the lath from the flooring side
place the mounted flooring inside
the boat while tubes are deflated
Lath
