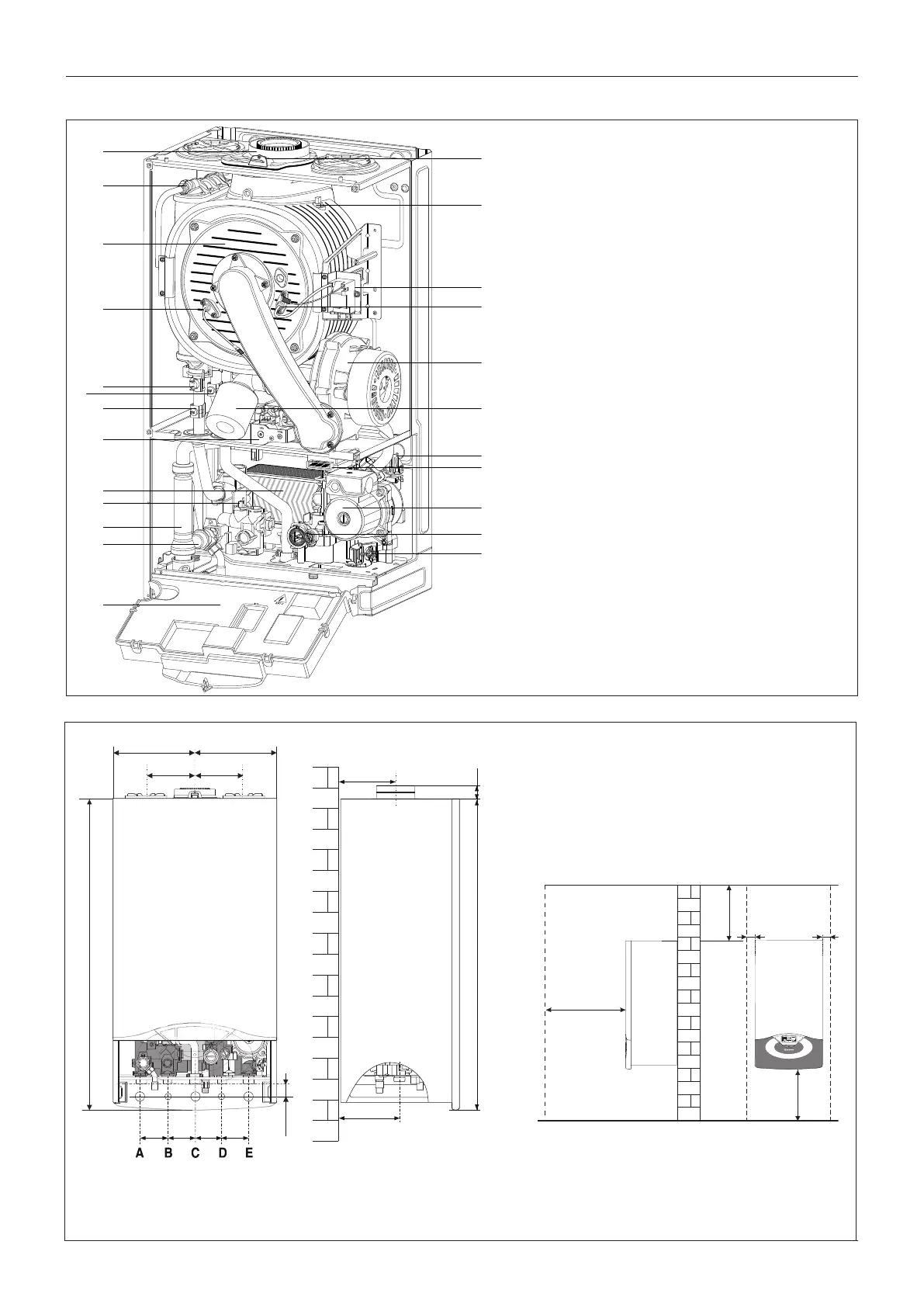

Overall view
Overall Dimensions
24/30/38
A. Central Heating Flow
B. Domestic Hot Water Outlet
C. Gas Inlet
D. Domestic Cold Water Inlet
E. Central Heating Return
Minimum clearances
In order to allow easy access to the boiler for
maintenance operations, The boiler must be installed
in accordance with the clearances stated below.
5
5
1
2
3
4
5
6
7
8
9
10
11
12
13
25
24
23
22
21
20
18
19
17
15
16
1. ue connector
2. air pressure switch
3. burner
4. detection Electrode
5. overheat thermostat
6. C.H. Return temperature probe
7. C.H. Flow temperature probe
8. gas valve
9. secondary heat exchanger
10. D.H.W. temperature probe
11. siphon
12. C.H. pressure relief valve
13. electrical box
15. C.H. circuit lter
16. D.H.W. Flow switch
17. circulation Pump with air release valve
18. diverter valve
19. switch On-O
20. silencer
21. modulating Fan
22. ignition electrodes
23. ignitor
24. thermal fuse
25. combustion Analysis Test Point
