MAINTENANCE GUIDE: GENUS PREMIUM

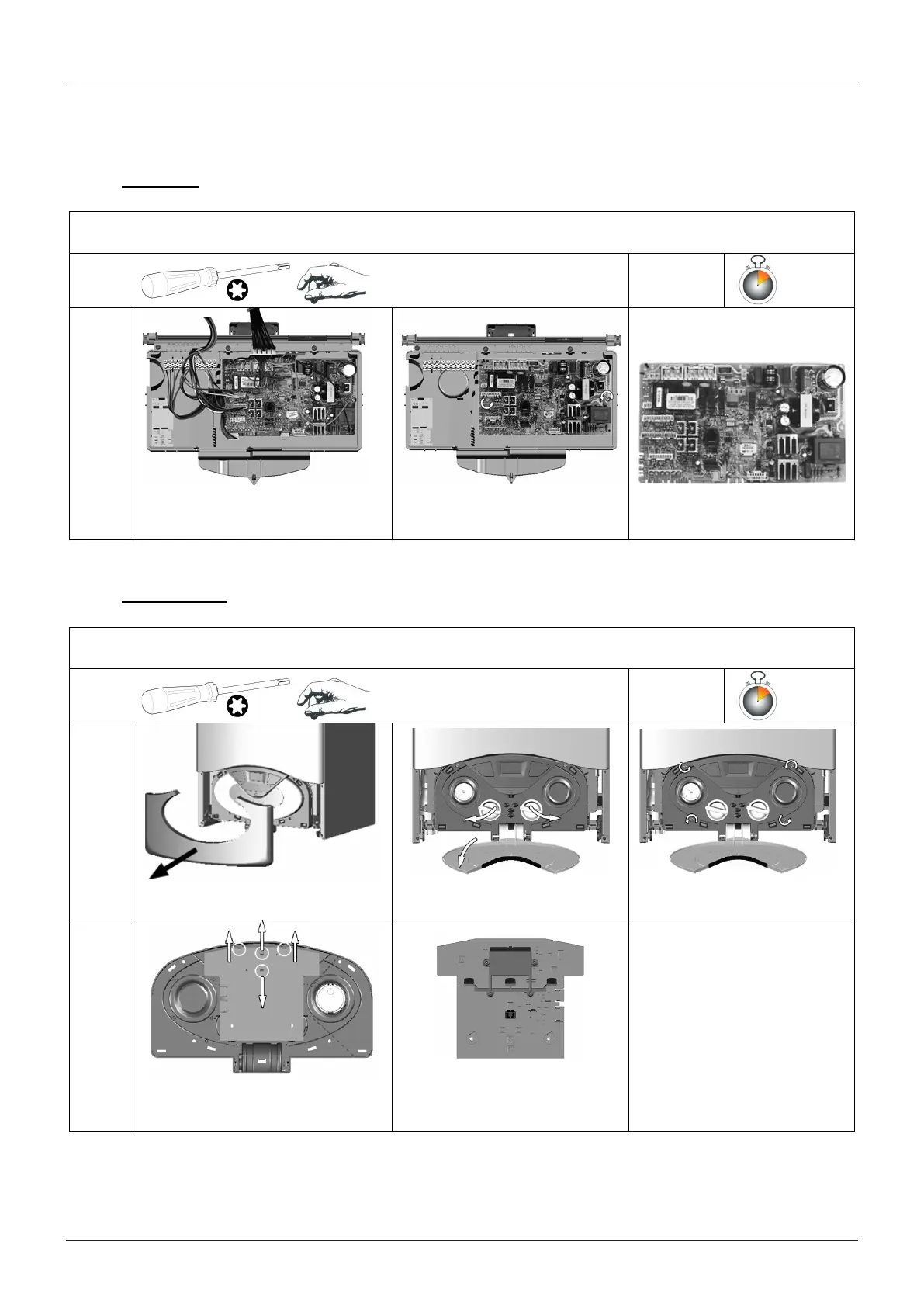

2.3 MAIN PCB
MAIN PCB
Tools
Time
7 min
1
After opening the control box,
disconnect the electrical plug
connectors
Unscrew the two screws and
remove the PCB
2.4
DISPLAY PCB
DISPLAY PCB
Tools
Time
7 min
1
Unclip the cover to remove
Lower the door and remove the
two control knobs
Unscrew the four screws and
pull the assembly towards you
2
Disconnect the electrical plug
connectors, unlock the four
clamps, and remove the PCB
Page. 8 of 24
