Ariston CLAS NET One Installation And Servicing Manual

24 /
INSTALLATION INSTALLATION

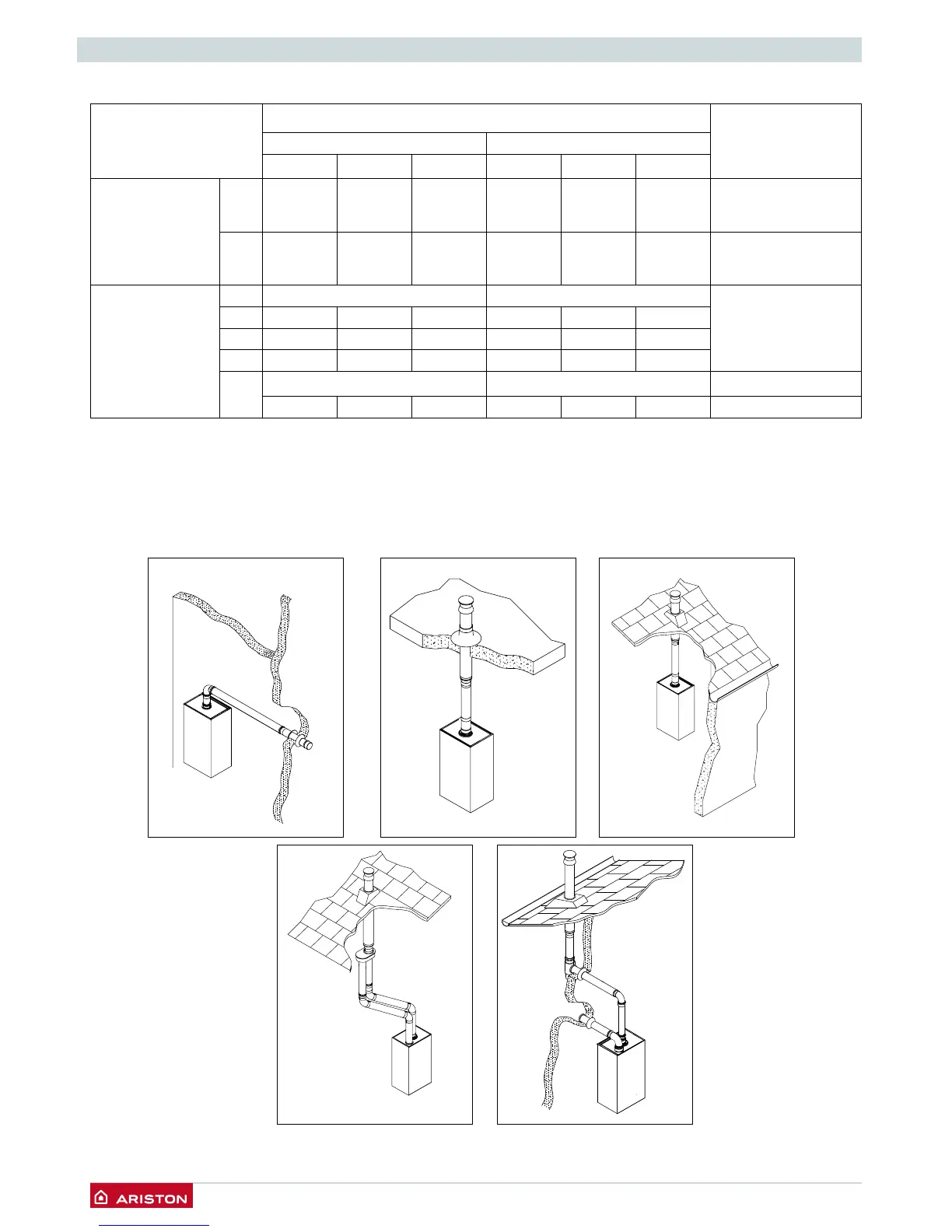

Table of ue gas exhaust duct lengths
S1 = Air intake S2 = Flue gas exhaust
S1 = S2 - Air intake and ue gas exhaust equal lengths
S1 + S2 - Air intake and ue gas exhaust unequal lengths
TYPE C13
TYPE C33 TYPE C53
TYPE C33 TYPE C33
FLUE TYPE
Maximum Extension Exhaust-air (m)
Diameter of pipe
(mm)
CLAS ONE / CLAS NET ONE CLAS ONE SYSTEM
24 30 38 18 24 30
Coaxial System
C13
C33
C43
8 7 6 8 8 7 ø 60/100
C13
C33
C43
33 24 27 32 33 24 ø 80/125
Twin-pipe System
S1 = S2
ø 80/80
C13 24/24 26/26 16/16 36/36 24/24 26/26
C33 48/48 40/40 32/32 48/48 40/40 32/32
C43 24/24 26/26 16/16 36/36 24/24 26/26
C53
S1 + S2 S1 + S2
60 50 35 50 60 50 ø 80/80
