Ariston GENUS PREMIUM EVO HP 85

technical area
31

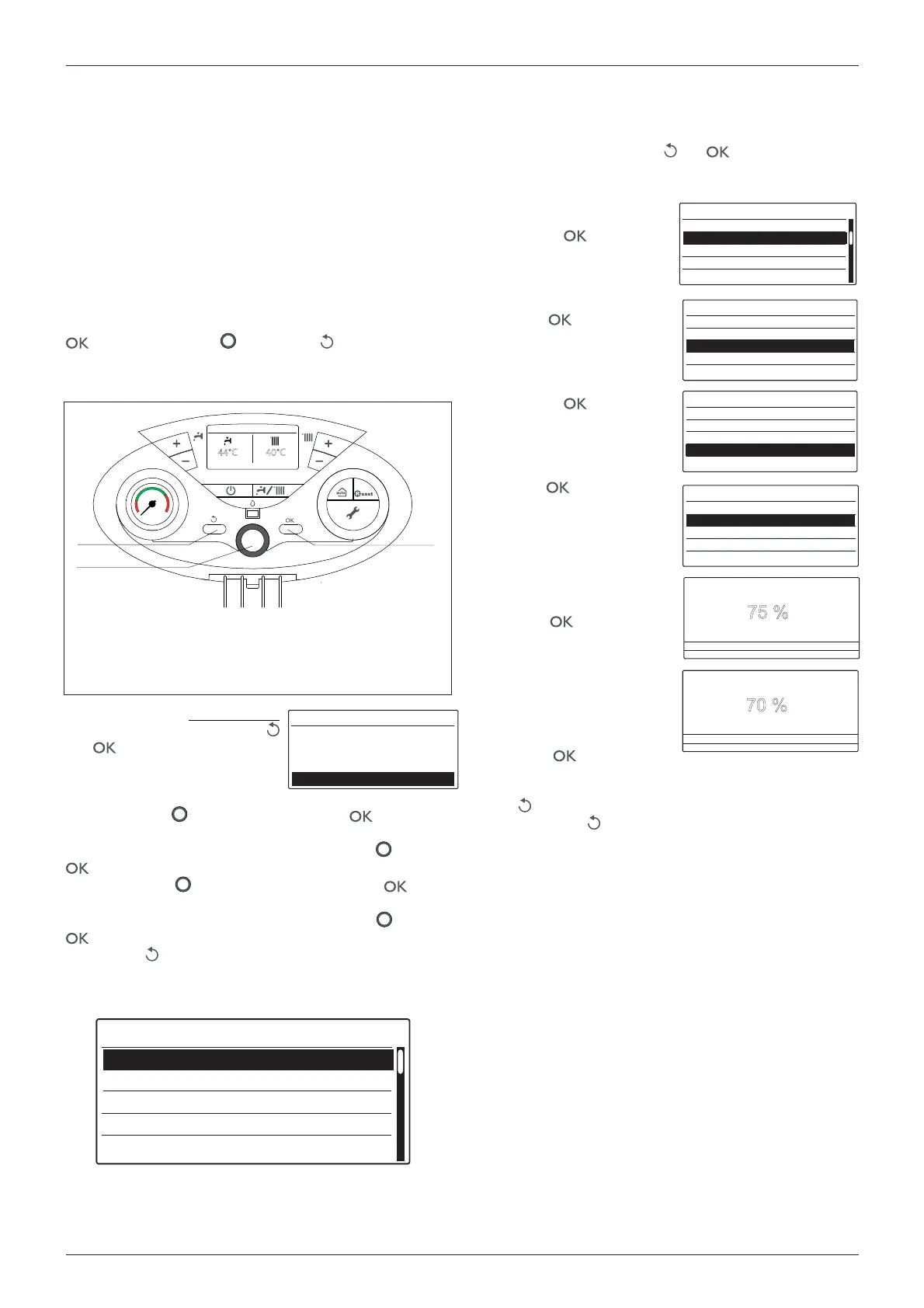

TECHNICAL AREA - reserved for quali ed technician
Accessing the Technical Area allows for setting/con guring the
device according to the speci c requirements of every installation
procedure.
It also provides important information relating to the e cient
operation of the boiler.
The Technical Area comprises various display windows that allow
for directly accessing the parameters Intervening in each single
product installation/con guration phase.
For accessing the Technical Area
simultaneously press the ESC
and buttons for 5 seconds; the
display will visualise the request for
entering the technical code.
Turn the encoder
to select 234 and press the button .
To move within the Technical Area turn the encoder
and press
button to access the selected window.
Turn the encoder
to select a parameter and press button
to access it.
To modify the value of a parameter, turn the encoder
and press
button to store the value.
Use the ESC
button to exit a parameter without storing the
modi cation and for returning to the normal viewing mode.
The parameters relating to each single menu are listed in the
following pages.
The various parameters can be accessed and modi ed using the
button , the encoder and the ESC button see picture
below).
03/02/2011 12:00
44°C 40°C
6
7
8
6. ESC button (Back)
7. “encoder” programming knob
8. OK button programming key
Insert technical code
222
Insert code
Save
Complete Menu
Configuration Wizard
Service
Faults
Technical area
Language, date and time
Example:
Modi cation of parameter 2.3.1 Max. Adjustable Central Heating
Power
Proceed as follows:
1. Simultaneously press the ESC
and buttons for 5 seconds;
the display will visualise the request for entering the technical
code.
2. Turn the encoder and select
code 234.
3. Press the button; the
display will visualise the
available windows.
4. Turn the encoder to select the
COMPLETE MENU.
5. Press the button to access;
the display will visualise the
available menus.
6. Turn the encoder to select Menu
2 - Boiler parameters.
7. Press the button. The
display will visualise the
available sub-menus.
8. Turn the encoder to select 2.3 -
Central heating 1.
9. Press the button to access.
The display will visualise the
parameters relative to sub-
menu 2.3.
10. Turn the encoder to select
parameter 2.3.1 - Max. C.H.
Adjustable.
11. Press the button to access
the parameter.
The display will visualise the
value of the parameter (75%) in
addition to the minimum and
maximum values allowed.
12. Turn the encoder to select the
new value, e.g. 70%.
13. Press the button to store
the modi cation.
(To exit the parameter without storing the modi cation, press the
ESC
button).
14. Press the ESC
button to return to the normal viewing
mode.
1 <Not available>
2 Boiler Parameters
3 <Not available>
4 Zone1 Parameters
Menù
0 Network
2.1 <Not available>
2.2 General
2.4 Central Heating-2
2 Boiler Parameters
2.0 General
2.3 Central Heating-1
2.3.1 Max CH Adjustable 75
2.3.2
Max DHW percentage 76
2.3.4
Max CH percentage 65
2.3 Central Heating-1
2.3.0 <Not available>
2.3.3
min percentage 0
75 %
Maximum value 100%
Minimum value 0%
2.3.1 Max CH Adjustable
70 %
100%
0%
2.3.1 Max CH Adjustable
Maximum value
Minimum value
Configuration Wizard
Service
Faults
Complete MENU
Technical area
Language, date and time
