Ariston GL 4 User Manual

Temperature & pressure
relief valve, 3/4 NPT male
Temperature & pressure
relief valve, 3/4 NPT male
3/4 NPT female
tapping for
relief valve
3/4 NPT female
tapping
3/4 NPT female
tapping
3/4 NPT female
tapping for
relief valve
Hot water outlet
1/2 NPT male
3/4 NPT female
tapping for
relief valve
FIG. 1/1
Temperature & pressure
relief valve, 3/4 NPT male
Cold water inlet
1/2 NPT male
Temperature &
pressure relief
valve discharge
line to drain

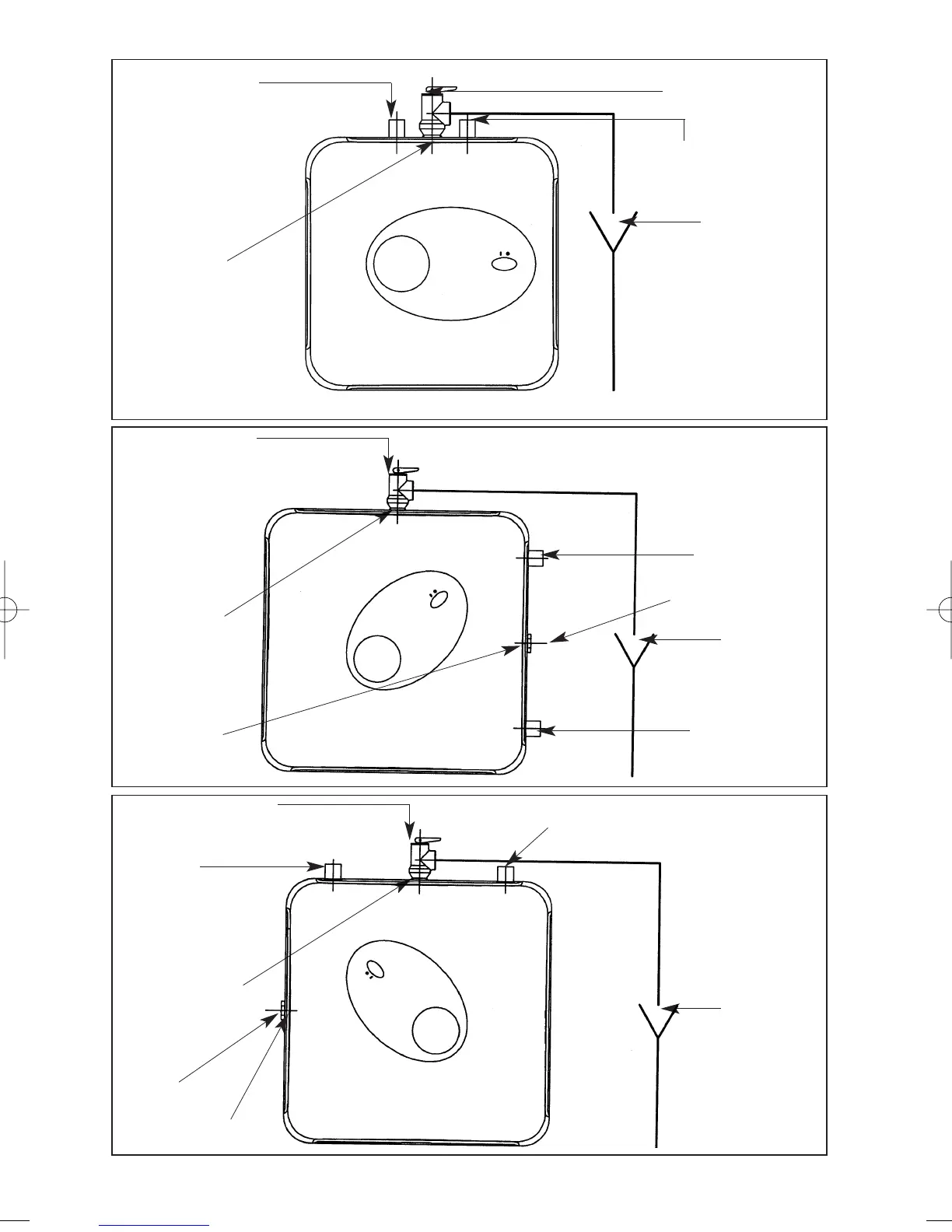

COMPONENT
PARTS OF
GL 2.5 - GL 4
COMPONENT
PARTS OF
GL 6+
(Vertical
installation)
COMPONENT PARTS OF GL 6+
(Horizontal installation)
FIG. 1/2
FIG. 1/3
Temperature &
pressure relief
valve discharge
line to drain
Hot water outlet
3/4 NPT male
Hot water outlet
3/4 NPT male
3/4 NPT male plug
3/4 NPT male plug
Temperature &
pressure relief
valve discharge
line to drain
Cold water inlet
3/4 NPT male
Cold water inlet
3/4 NPT male
