11
B063
Important! Before any component is removed, the boiler
must be drained of all water.

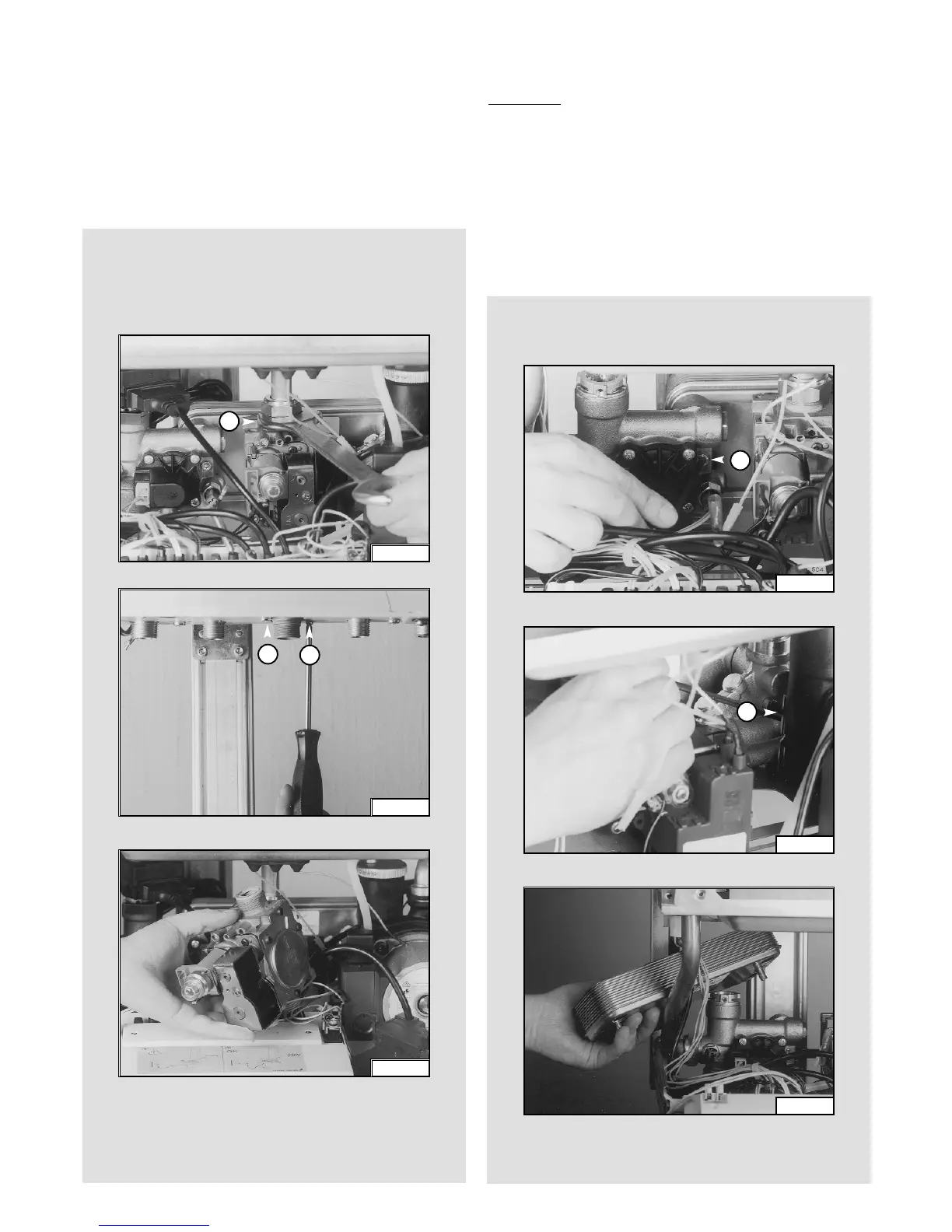

Removing the D.H.W. (secondary) exchanger
1.Remove the screws “Y” (FIG 1.33 + FIG 1.34);
2.Push the exchanger towards the rear of the boiler, and lift
upwards and remove out of the front of the boiler
(FIG 1.35);
3.Before replacing the exchanger ensure that the O-rings
are in good condition and replace if necessary.
1.6 ACCESS TO THE WATER CIRCUIT
FIG. 1.30
FIG. 1.31
FIG. 1.32
FIG. 1.33
W
X
X
Removing the gas valve
1.
Disconnect all the cables from the solenoid and
modureg;
2. Remove the spark generator (see previous section);
3. Release the top nut “W” (FIG. 1.30);
4. Remove the screws “X” from the bottom of the gas valve
pipe (FIG. 1.31);
5. Remove the gas valve (FIG. 1.32).
Y
FIG. 1.34
FIG. 1.35
Y
47.eps
48.eps
38.eps
22.eps
21.eps
68.eps
