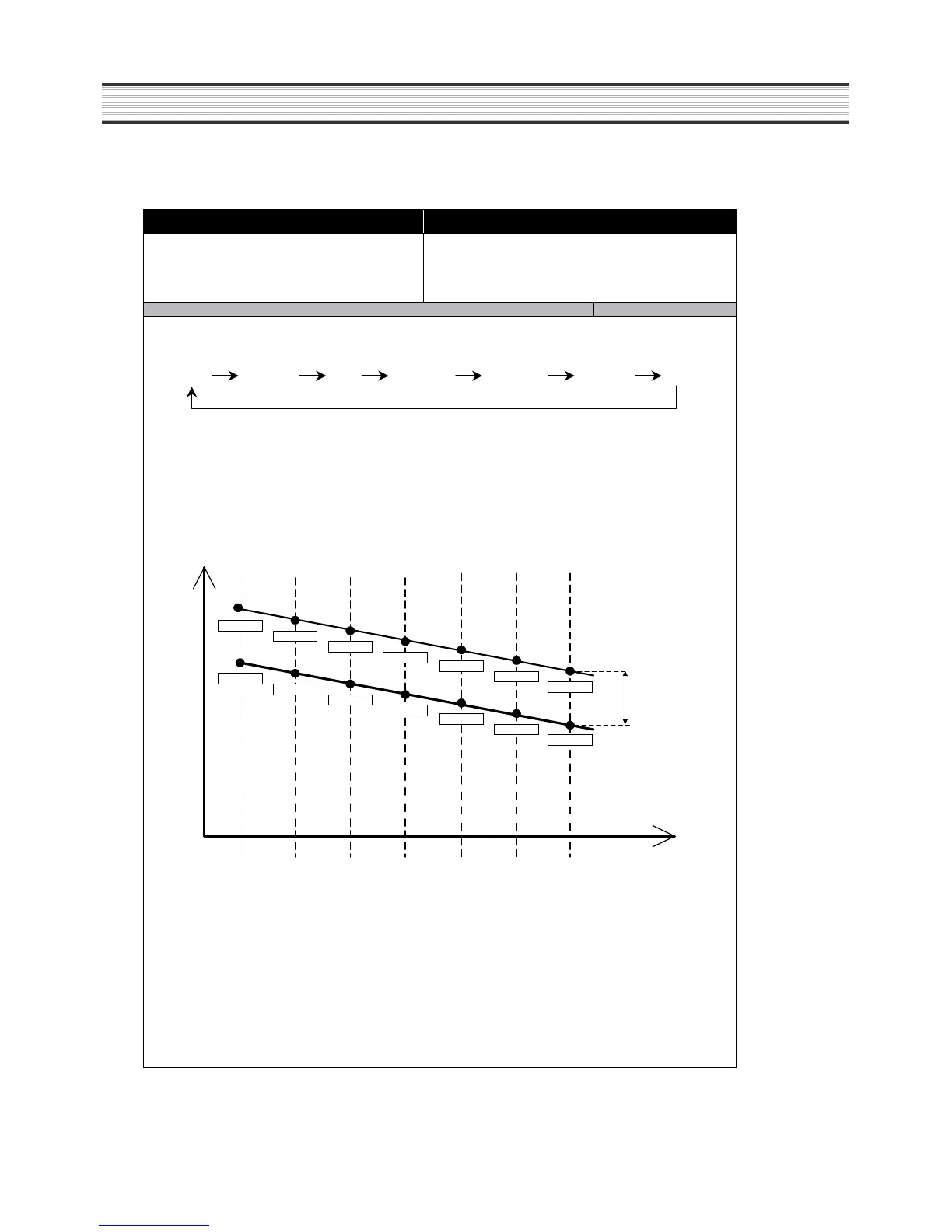

Ariston MSZ 702 NF HB (T) - Temperature Control of Freezer Compartment (FC)

10
OPERATION AND FUNCTIONS
INPUT Control Object
1. freezer.set button
2. super freeze button
3. F-sensor
1. COMP
2. F-FAN
CONTENTS REMARKS
1. Temperature modes change by pushing the button.
2. Comp. and F-fan are controlled by ON / OFF point of each mode.
3. Freezer ON/OFF DIFF. : 4℃
Freezer middle OFF point : -21℃
If RT≤13℃ ,
F-S OFF point increases by 2℃ and
Freezer Middle OFF point is -19℃ .
4. Control point of each mode
Temp.
MODE
ON point
OFF point
Low
Mid
High
ON/OFF DIFF
-1 7.0
-2 1.0
-2 3.0
-2 7.0
-1 3.0
-1 7.0
-2 3.0
-1 9.0
-1 5.0
-1 9.0
-1 9.5
-2 3.5
-2 4.0
-2 0.0
(Low-Mid) (Mid-High1) (Mid-High2) (Mid-High3)
Low Low-Mid
Mid
Mid-High1
Mid-High2
Mid-High3
High
3-2. Temperature Control of Freezer Compartment (FC)
