Ariston S 3.5 COM PL User Manual

7
EN
Up to 7.7 kW (One Phase)Up to 3.5 kW (One Phase)

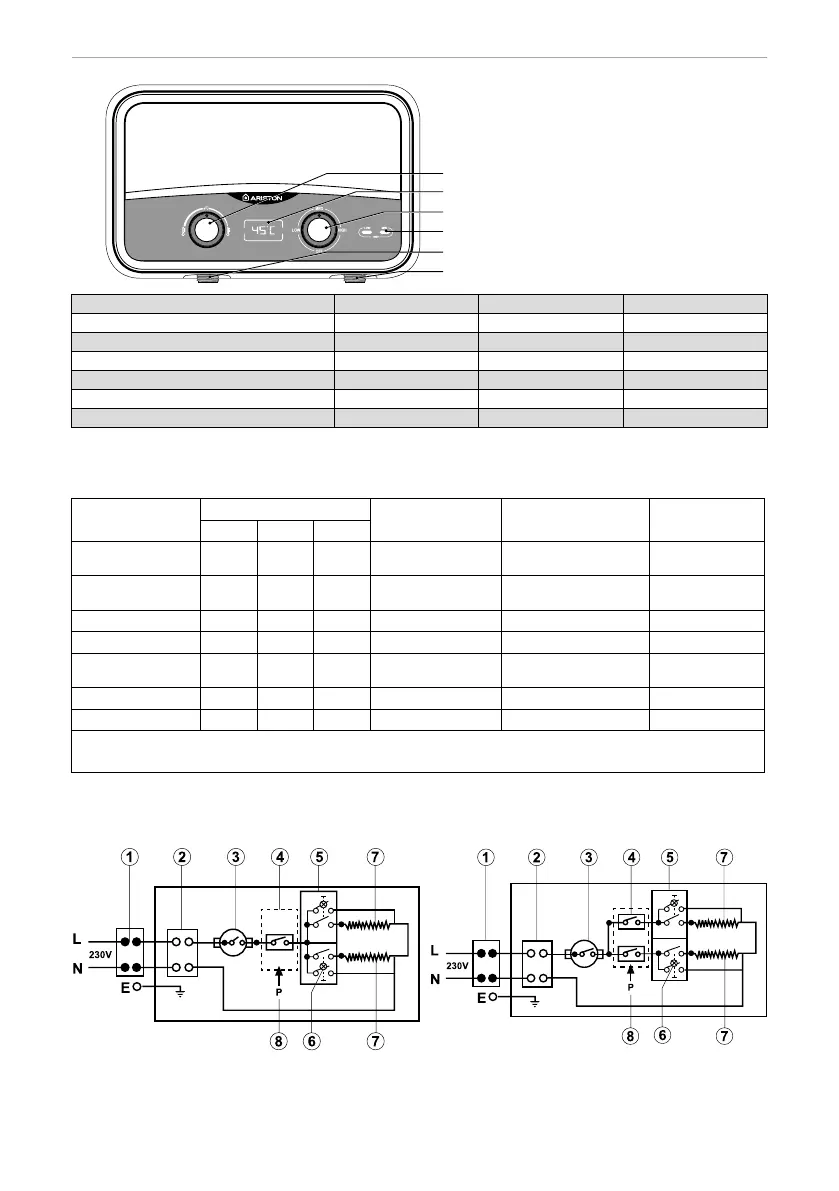

INSTALLATION
AURES
SLIM
Flow Rate Knob (Flow & Display model)Temp.
Display (Display model)
Power Knob
Power Led
Water Inlet
Water Outlet
Feature SLIM SLIM FLOW SLIM DISPLAY
Water Inlet x x x
Water Outlet x x x
Power LED x x x
Power Knob x x x
Flow rate Knob x x
Temperature Display x
Unit Dimensions: Height 183mm Width 290mm Depth 113 mm
Table 2
Model AURES
kW Loaded
Heating Setting
Recomended Cable
Size
Recomended
Fuse Rating
220V 230V 240V
S 3.5 COM PLS 3.5 COM PL
S 3.5 SH PLS 3.5 SH PL
3.5 -- -- 1.5+2.0 kW H05VV-F 3x1.5 mm
2
16 A
S 3.5 COM EUS 3.5 COM EU
S 3.5 SH EUS 3.5 SH EU
3.5 -- 4.1 1.5+2.0 kW H05VV-F 3x2.5 mm
2
25 A
S 4 SH EUS 4 SH EU
4.0 -- 4.7 1.0+3.0 kW H05VV-F 3x2.5 mm
2
25 A
S 5 SH EU S 5 SH EU
5.0 -- 6.0 2.0+3.0 kW H05VV-F 3x4 mm
2
32 A
S 5.5 SH EU S 5.5 SH EU
SF 5.5 COM EUSF 5.5 COM EU
5.5 -- 6.5 2.2+3.3 kW H05VV-F 3x4 mm
2
32 A
SF 7 SH EUSF 7 SH EU
7.0 -- 8.3 3.0+4.0 kW H05VV-F 3x6 mm
2
40 A
S 7.7 SH EUS 7.7 SH EU
7.7 -- 9.1 3.0+4.0 kW H05VV-F 3x6 mm
2
40 A
• Operating water pressure 20-800 kPa (0.2-8 bar) • Water pressure operating power switch
• Standard 1/2"Ø compression inlet connection • Top-left and right cable entry • Bottom-left water entry
1. Multi-pole switch
2. Terminal block
3. Thermostat
4. Microswitch
5. Switches
6. LED Light
7. Heating elements
8. Pressure switch
