JOINING KIT - 'J' MODELS ONLY

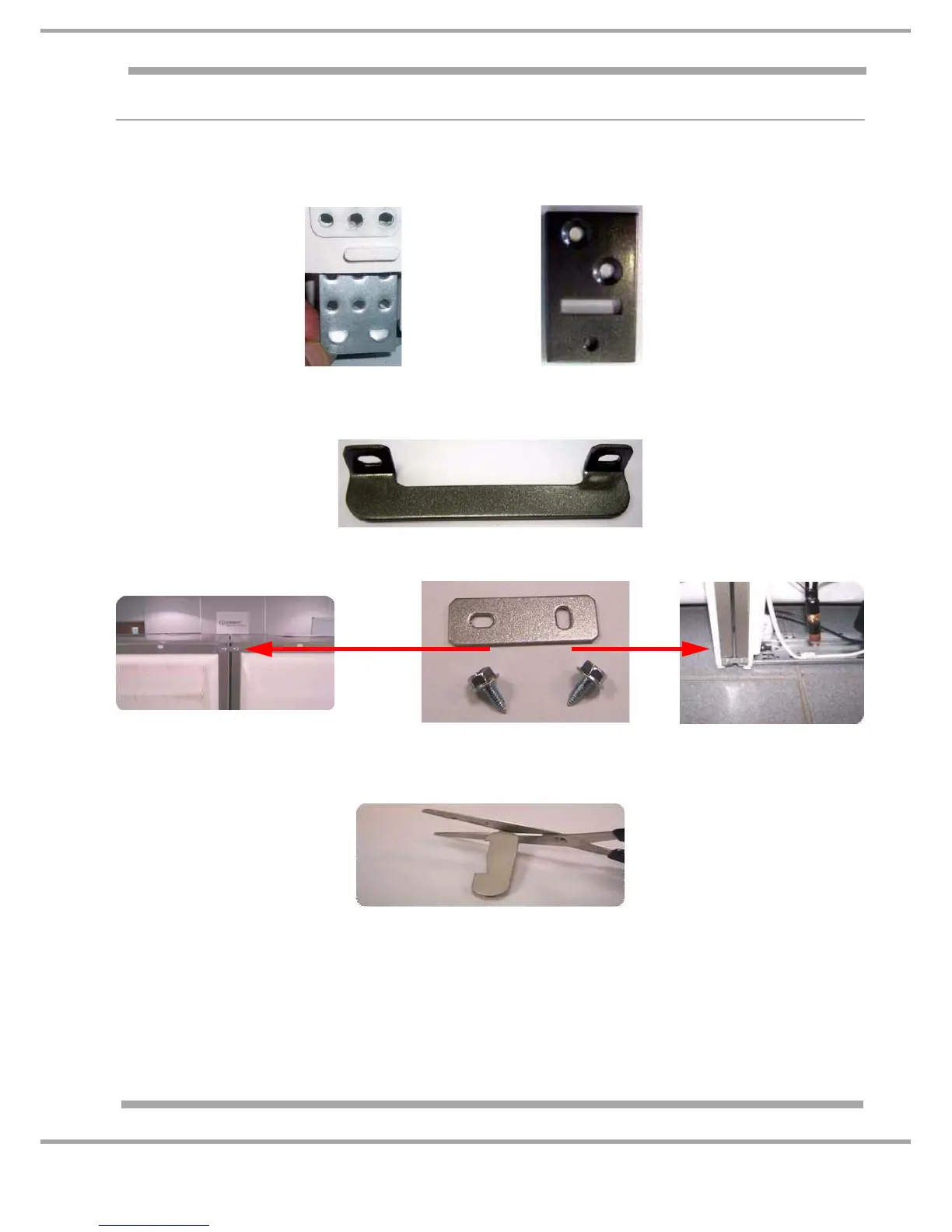

4. Remove the base moulding from the fridge and insert the multiple hole 'hinge fixing plate' in the
slot behind the lower left hand hinge position. Affix the tapping plate using the screws provided.
See image below.
5. Attach the bracket (image below) using the screws provided to join the cabinets across the base
mouldings.
6. Ease the appliance forward and attach the rear linking plates using the screws supplied.
7. Refit the control panel bracket blanking plates to cover the top joining bracket, after removing the
small tongue at one end.
8. Filler Trim: Remove the paper backing strips from the rear of the filler trim and position it in the
space between the two appliances, from the front base mouldings to the controls panels.
9. Ease the appliances back into position.
