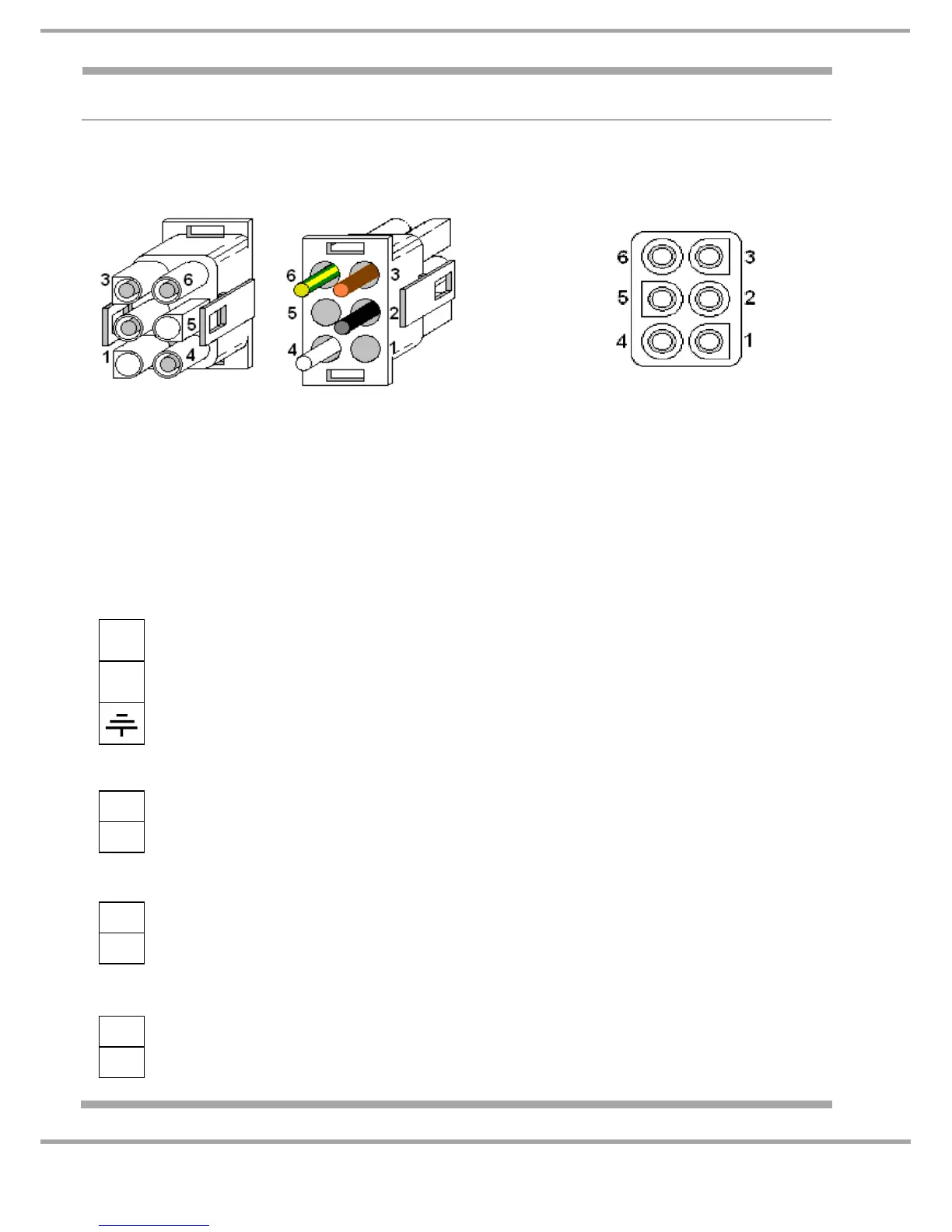

WIRING CONNECTION CHART
PLUG &
SOCKET
Used in “V
models only:
For other
models, see
thermostat
connections
CONTROL HARNESS PLUG CONTROL HARNESS SOCKET
Front View Rear View Foamed in Place
1 ~ Not used
2 ~ Black ~ Thermostat 3
3 ~ Brown ~ Thermostat
4 ~ White ~ Door Switch
5 ~ Not used
6 ~ Green & Yellow ~ Earth
1 ~ Rear Link to Light only
2 ~ Black ~ Compressor
3 ~ Brown ~ Compressor
4 ~ White ~ Light only
5 ~ Not used
6 ~ Green & Yellow ~ Earth
Black ~ Ventilator
THERMOSTAT CONNECTIONS ~ (References to Harness Plug/Socket apply 'V' models only
LIGHT SWITCH
~ Brown x 2 ~ Door Switch & Control Harness Plug (3)
~ Black ~ Control Harness Plug (2)
~ Green & Yellow ~ Control Harness Plug (6)
~ White ~ Control Harness Socket (4)
~ Brown ~ Thermostat (3)
LIGHT ASSEMBLY
~ Blue x 2 ~ Linked Neutral ~ Lamp Holder & Fan Motor
~ White ~ Control Harness Plug (2)
FAN (VENTILATOR)
~ Blue x 2 ~ Linked Neutral ~ Lamp Holder & Fan Motor
~ Black ~ Control Harness Plug
3
4
