Ariston SD1511 - THEORETICAL WIRING DIAGRAM

Ariston SD1511
15 pages
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
15 of 15
Indesit Company
Service Manual UK English

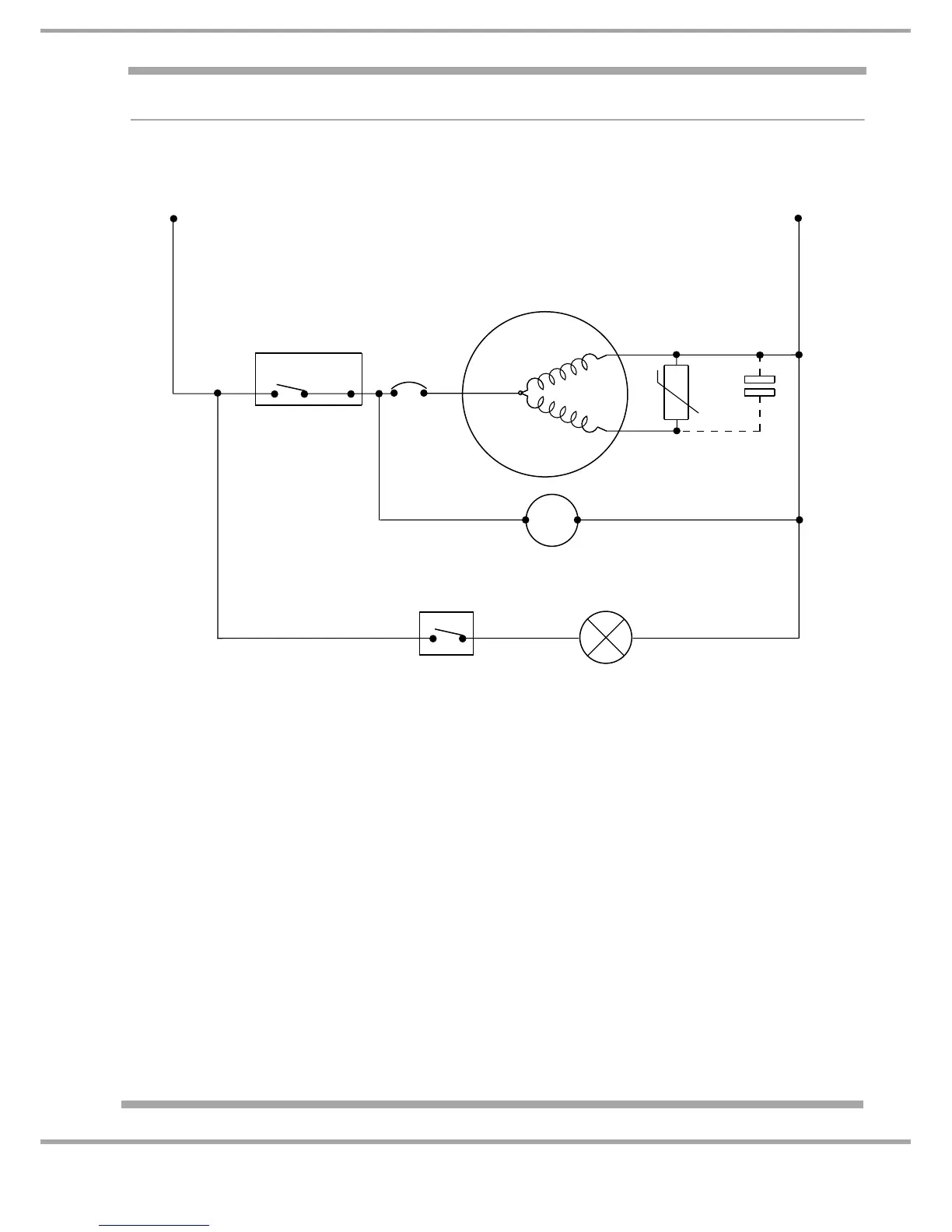

THEORETICAL WIRING DIAGRAM
ELECTROLUX - (ACC/ZEM) & TECUMSEH COMPRESSORS
5407366wd.pdf
SD1511-SD1746
R
S
CAPACITOR
(if fitted)
COMPRESSOR
LIGHT
VENTILATOR - ‘V’ MODELS
LIGHT
SWITCH
4
3
PTC
THERMOSTAT
O/L
N
L
