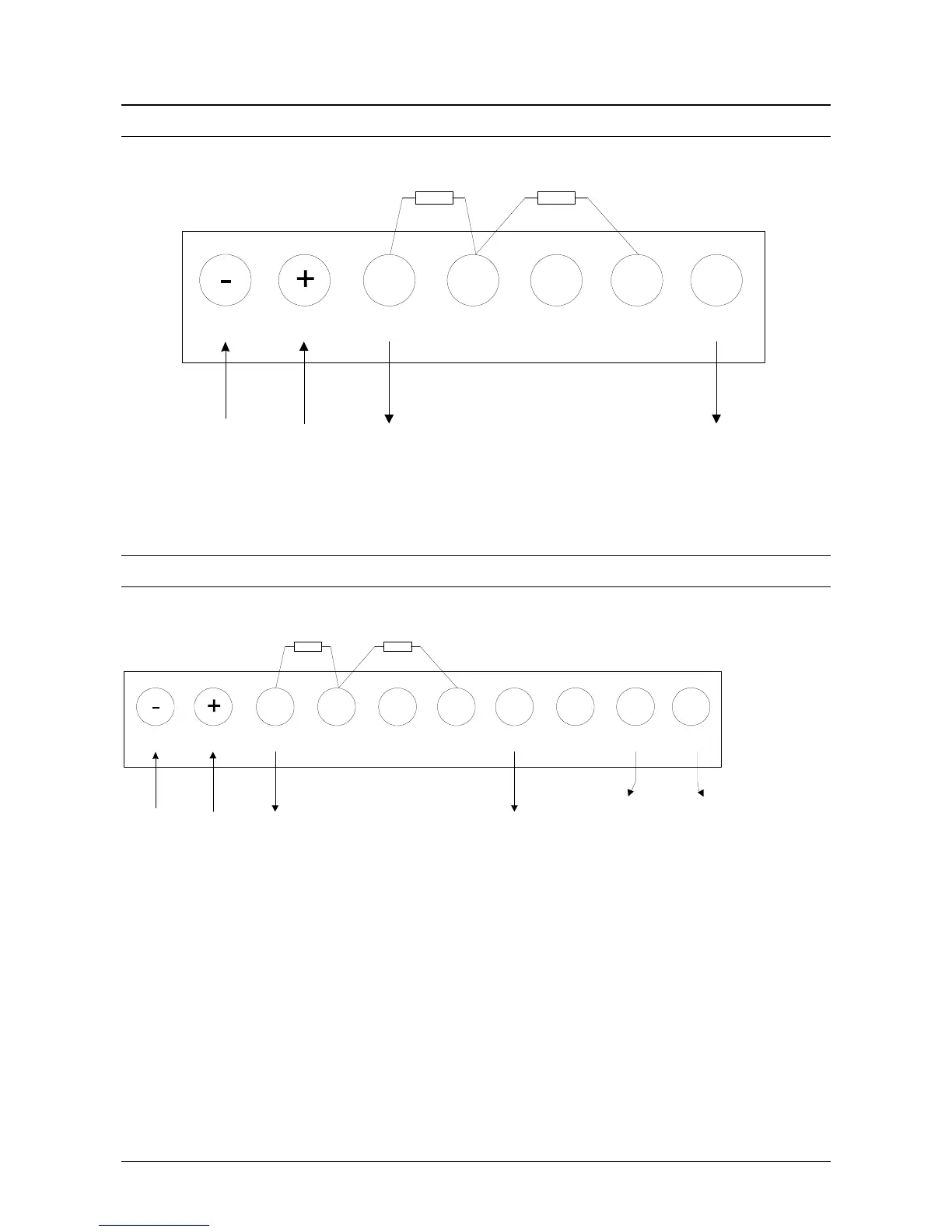

CONNECTING A DETECTOR WITHOUT MEMORY
Input zone
Power supply
4k7
4k7
S
S
A
A
7
6
5
4
3
2
1
Figure 16. Dual loop Connecting a detector without memory
CONNECTING A DETECTOR WITH LATCH
Power supply
Input zone
Output “Latch” Output “Walk test”
M
W
S
S
A
A
4k7
4k7
1
2
3
4
5
6
7
8
9
10
Figure 17. Dual loop Connecting a detector with latch
Note: Before connecting, the cable between terminal 2 and terminal 10 should be removed!
