ARITERM SWEDEN AB Installation, Operation and Maintenance - 2007.10.26- 10/12
PELLET STORE
 anks to the pellet feed system the pellet store can be built for bulk deliveries.
 e store can either be located inside the house or in a separate building.
Pellets must, however, never be exposed to moisture.
Data for exible feed system:
Maximum climb: 2,5 m
Maximum gradient: 45˚
Outside pipe diameter: 75 mm
Attention! The pellet store can have a maximum of 3 intake openings, and only one intake
can be used at a time.
 e store shall be well sealed to avoid the spreading of dust.
As a guide when determining the size of the store, it may be useful to know that
the minimum bulk delivery is normally 3 tons if you wish to avoid freight surcharge.
1 ton of pellets corresponds to about 1,6 m
3
. To accommodate 3 tons of pellets you
would need a store of at least 6 m
3
to have some space to spare.
Inspection hatch
600 x 600 mm
Store pipe (delivered by Ariterm),
see previous page. The whole length
of the store pipe shall be supported.
2 x horizontal
studs 45x95 mm
50˚
80 mm
Bulk lling pipe
Ø 100 mm
Vent pipe Ø 200 mm
Attention!
If lter sack is used
for lling we
recommend
2 x Ø 200 mm
Vertical studs
95x45 mm
c/c 600 mm
Slippery plywood
board 16 mm
Horizontal stud
45x95 mm
Stud 45x95 mm
c/c 600 mm

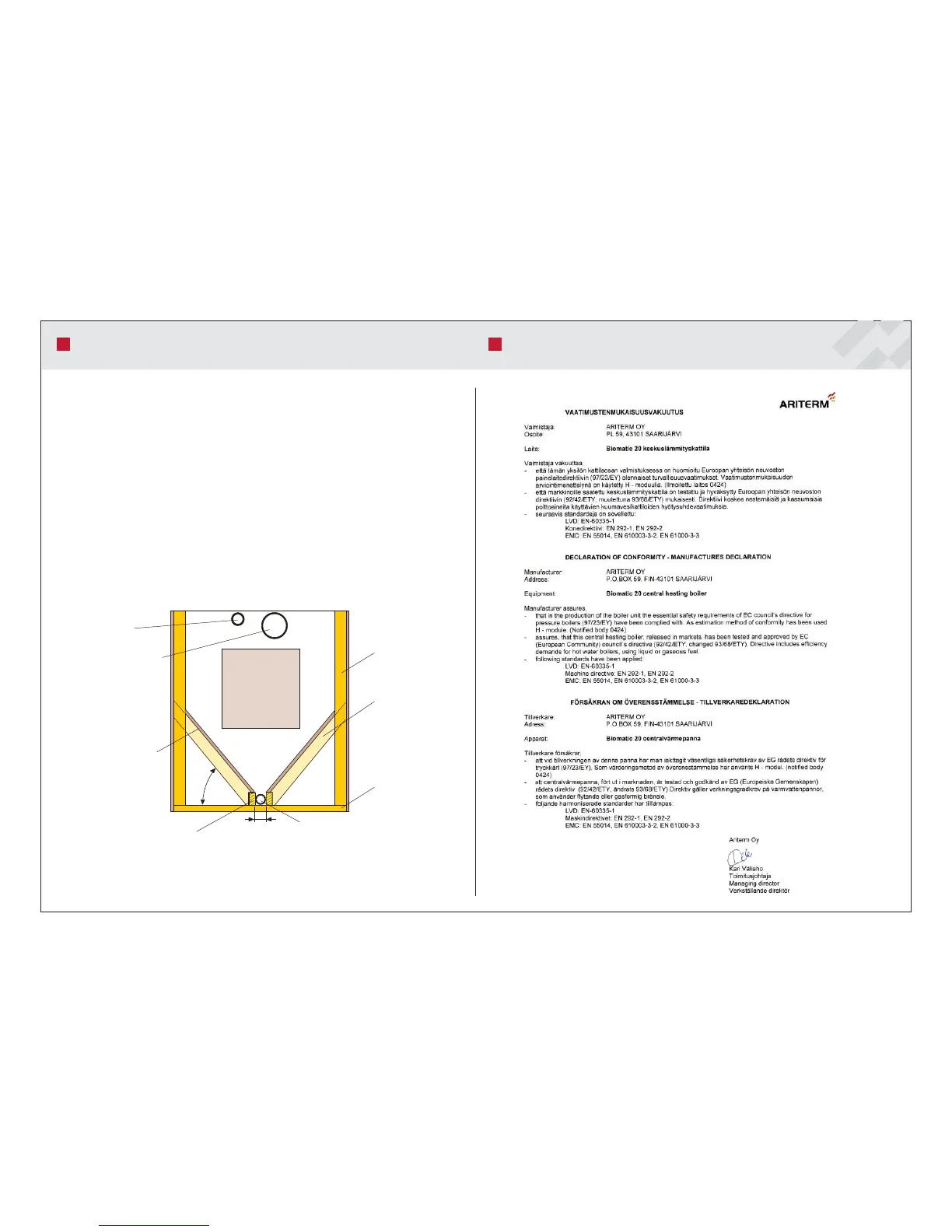

 e drawing represents a stand alone pellet storage bin. If the store is built
against a supporting wall, the sloping studs will have to be arranged diff erently.
DECLARATION OF CONFORMITY
