ARITERM SWEDEN AB Installation, Operation & Maintenance - 2007.08.14- 3/24

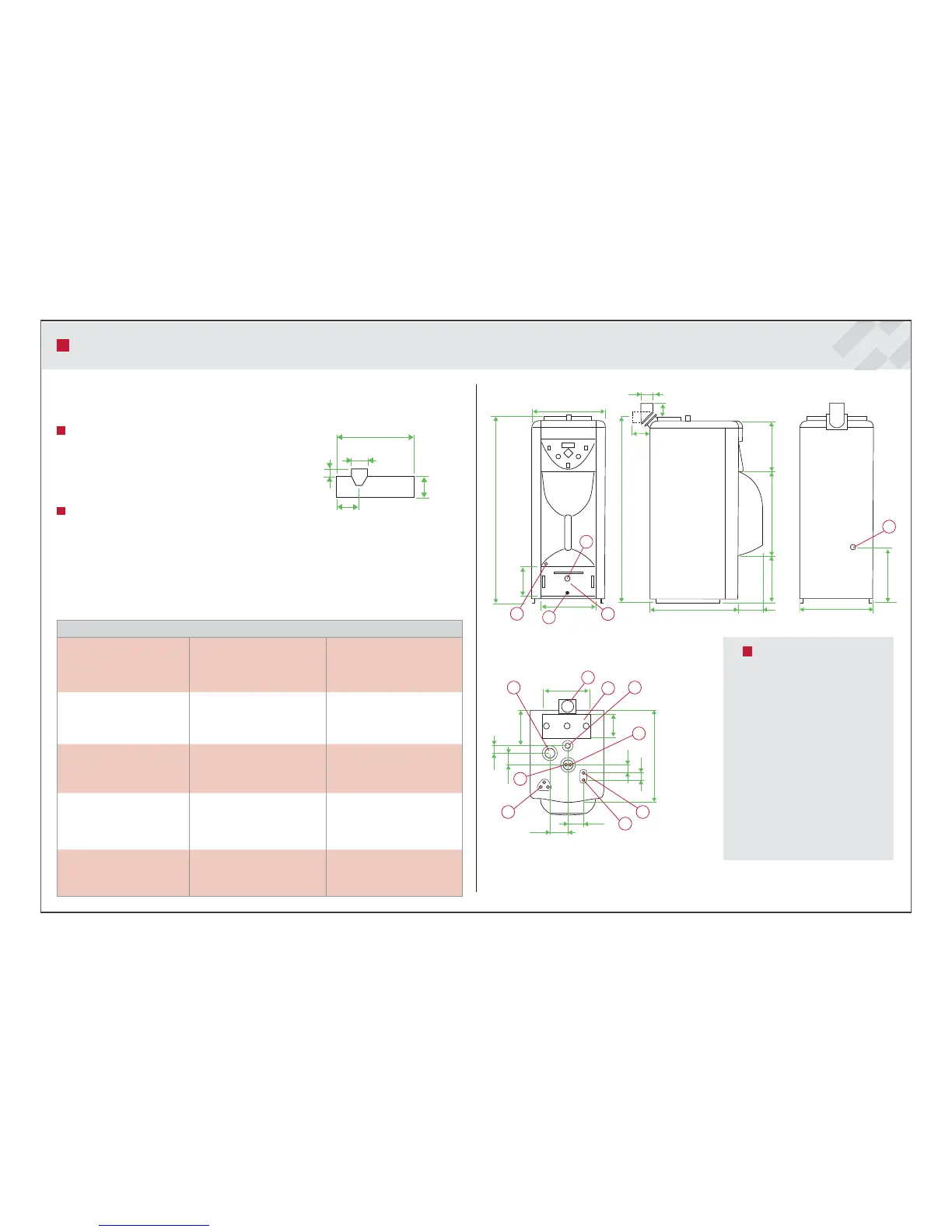

DIMENSIONS / ITEMS INCLUDED IN THE DELIVERY - BIOMATIC+ 20
TECHNICAL DATA
Performance
Output using pellets
Power of ignition resistor
Normal power consumption
8 - 20 kW
450 W
60 W
Dimensions
Dimensions (width x depth x height)
Weight
Water contents
Weight (burner)
606 x 945 x 1500 mm
245 kg
140 l
23 kg
Design values
Design pressure
Design temperature
Recommended draught
0,5 - 1,5 bar
max 120
o
C
5-20 Pa
Connections
Expansion
Drain
Flue pipe connection
Recommended chimney diameter and
length
DN 25 male
DN 15 female
Ø 102 mm
Ø 100 mm, length min 5 m
Electrical data
Power supply
Supply cable
Fuse size
Power in operation
400 V 50 Hz
MMJ 4x2,5s
3x16 A
9000 W
Dimensions are without
adjustable feet
410
606
1500
261
389
130
157
49
55
758
214
305
62
100
725
213
180
220
342 677 425
Ø 102 outs.
A=1460
600
490
1
2
4
5b
5a
68
7
3
9
10
11
13
12
Part Number
Biomatic+ 20 (part.no. 4010)
*)
Standard delivery
• Shunt valve ESBE TM 20
• Sweeping gear
• Combination fl ue for horizontal and vertical
installation (
part no. 5206)
Accessories
• Burner assembly kit
• Shunt outlet
A-dimensions including comb.fl ue
pipe is app. 1710 mm
*) The simpler model of Biomatic+ 20, Biomatic+ 20 Ultra Light, is delivered
without electric heater, heat exchanger and internal circulation pump.
Biomatic+ 20
1. Drain DN 15, inv.
2. Flue pipe Ø 139 mm
3. Additional shunt (optional)
4. Expansion DN 25, male
5. Shunt outlet
a) Feed line Cu 22 / DN 20
b) Return line Cu 22 / DN 20
6. Cold water Cu 22
7. Hot water Cu 22
8. Cabel bushing
9. Sweeping hatch
10. Ash box
11. Return line DN 25 female
12. Air valve
13. Ash compression
