ARITERM SWEDEN AB Installation, Operation & Maintenance - 2009.02.18- 3/32

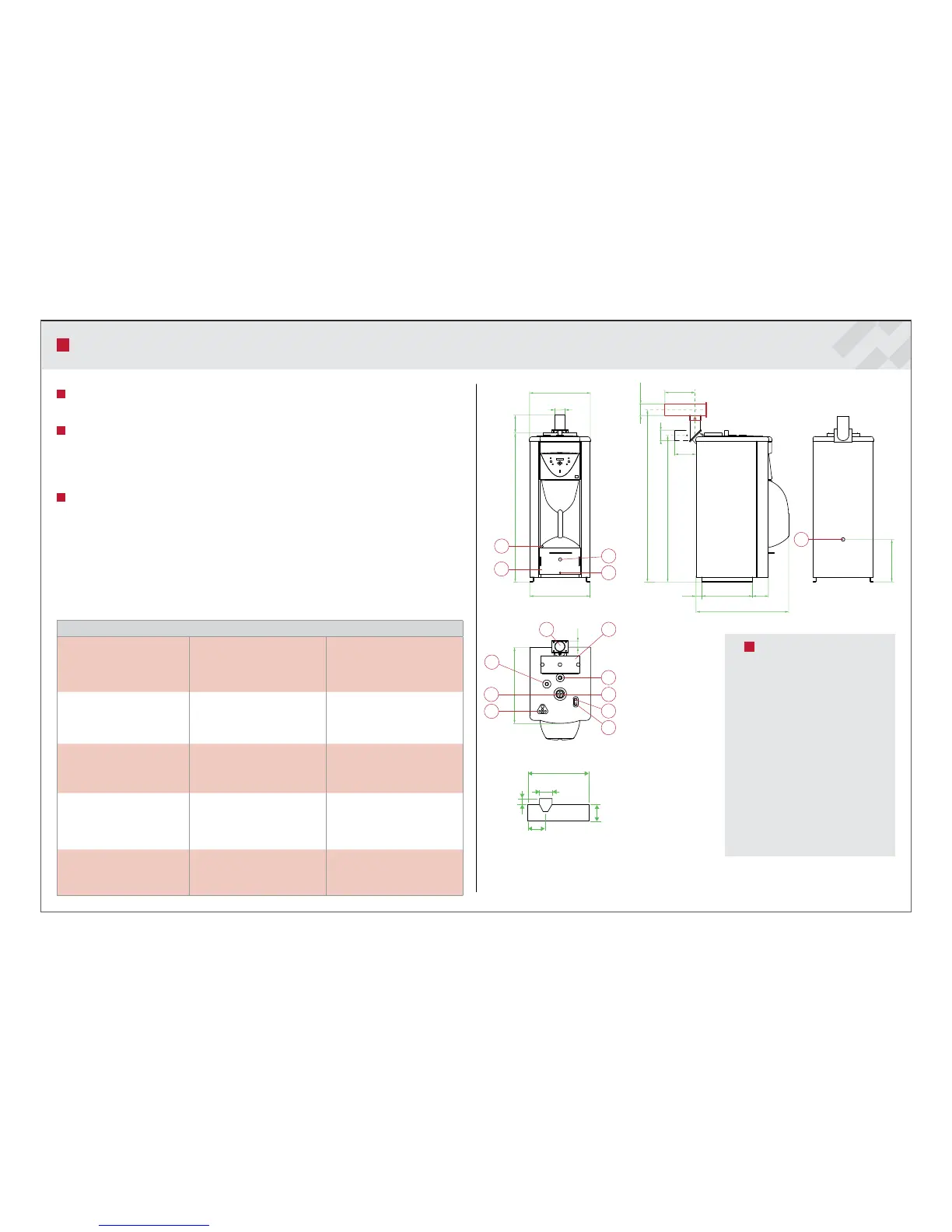

DIMENSIONS / ITEMS INCLUDED IN THE DELIVERY / TECHNICAL DATA - BIOMATIC+ 20
TECHNICAL DATA
Performance
Output using pellets
Power of ignition resistor
Normal power consumption
8 - 20 kW
450 W
60 W
Dimensions
Dimensions (width x depth x height)
Weight
Water contents
Weight (burner)
604 x 925 x 1500 mm
245 kg
140 l
23 kg
Design values
Design pressure
Design temperature
Recommended draught
0,5 - 1,5 bar
max 120
o
C
5-20 Pa
Connections
Expansion
Drain
Flue pipe connection
Recommended chimney diameter and
length
DN 25 male
DN 15 female
Ø 102 mm
Ø 100 mm, length min 5 m
Electrical data
Power supply
Supply cable
Fuse size
Power in operation
400 V 50 Hz
MMJ 4x2,5s
3x16 A
9000 W
Part Number
Biomatic+ 20 (
•
part.no. 4010)
Standard delivery
Shunt valve ESBE TM 20
•
Sweeping gear
•
Combination ue for horizontal and vertical installation (
•
part no. 5206)
Accessories
Burner assembly kit
•
Shunt outlet
•
Biomatic+ 20
1. Drain DN 15, female
2. Flue pipe Ø 139 mm
3. Additional shunt (optional)
4. Expansion DN 25, male
5. Shunt outlet
a) Feed line Cu 22 / DN 20
b) Return line Cu 22 / DN 20
6. Cold water Cu 22
7. Hot water Cu 22
8. Cabel bushing
9. Sweeping hatch
10. Ash box
11. Return line DN 25 female
12. Air valve
13. Ash compression
