Ariterm Biomatic+ 20i/40 - Pipe Installations

ARITERM AB • ARITERM OY Installation and operating instruction • Version 2.0 • 12.04.2017 7/32
5P01781-A / 5P01781-B

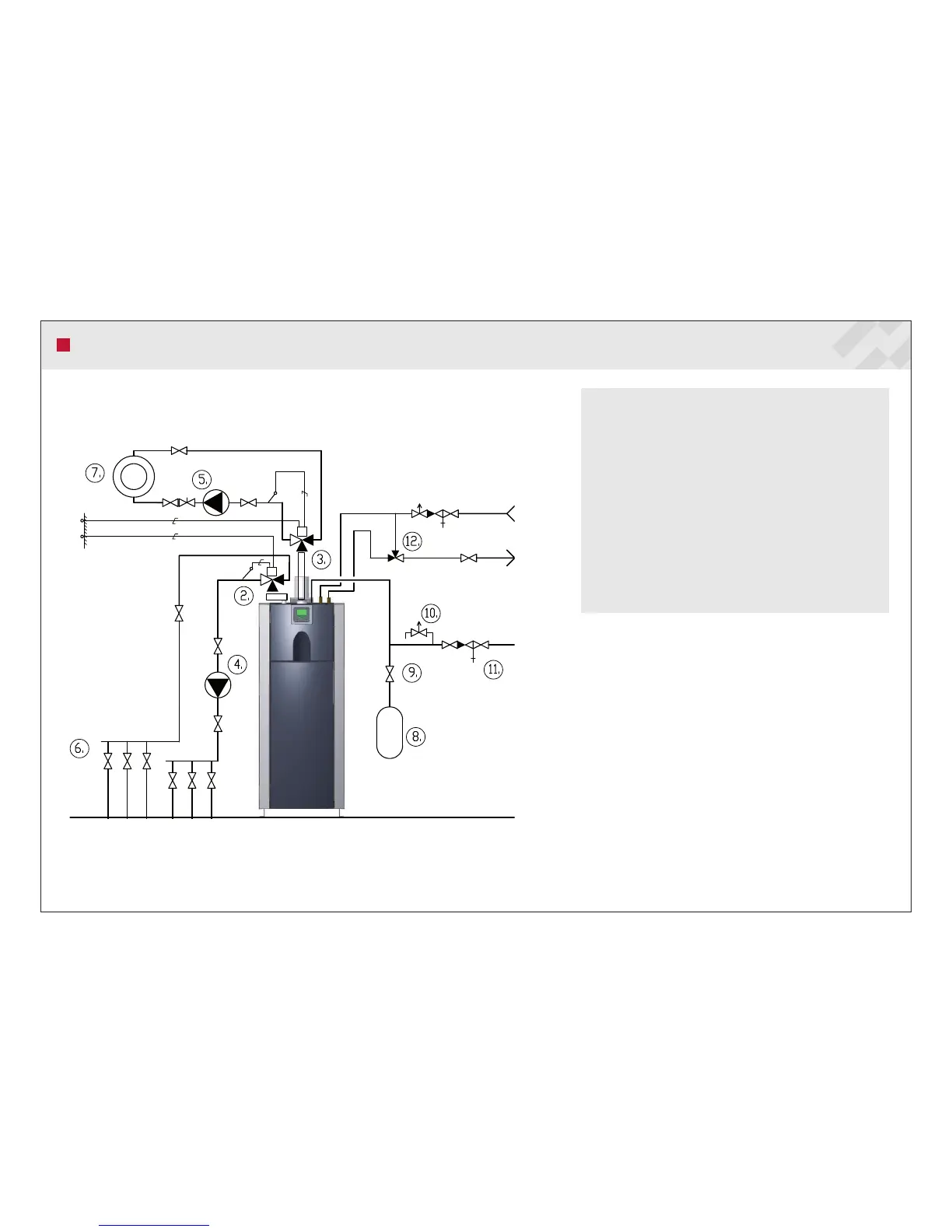

1. Ariterm Biomatic+ 20i/40i
2. Connection set of the additional heating circuit
(under floor or radiator heating)
3. 4-way valve, first heating circuit (raiator or under floor heating)
4. Circulation pump, additional heating circuit
5. Circulation pump, first heating circuit
6. Floor heating network manifolds
7. Radiator heating network
8. Expansion vessel
9. Service shut-off valve
10. Safety valve
11. Filling valve
12. DHW mixing valve
PIPE INSTALLATIONS
