LAYOUT GUIDELINES
The Control Panel is usually located somewhere near the main entrance
door and within 1 metre of a power point.
The Window/Door Sensor is attached to the front or rear door, or to a
window through which an intruder can enter the house.
The Movement Sensors are usually mounted high on a wall and directed
into a room requiring protection, such as a lounge room or hallway. These
sensors must not be located more than 20 metres from the Control Panel.
The maximum distance may be even less if the sensor has to transmit
through doors or walls.

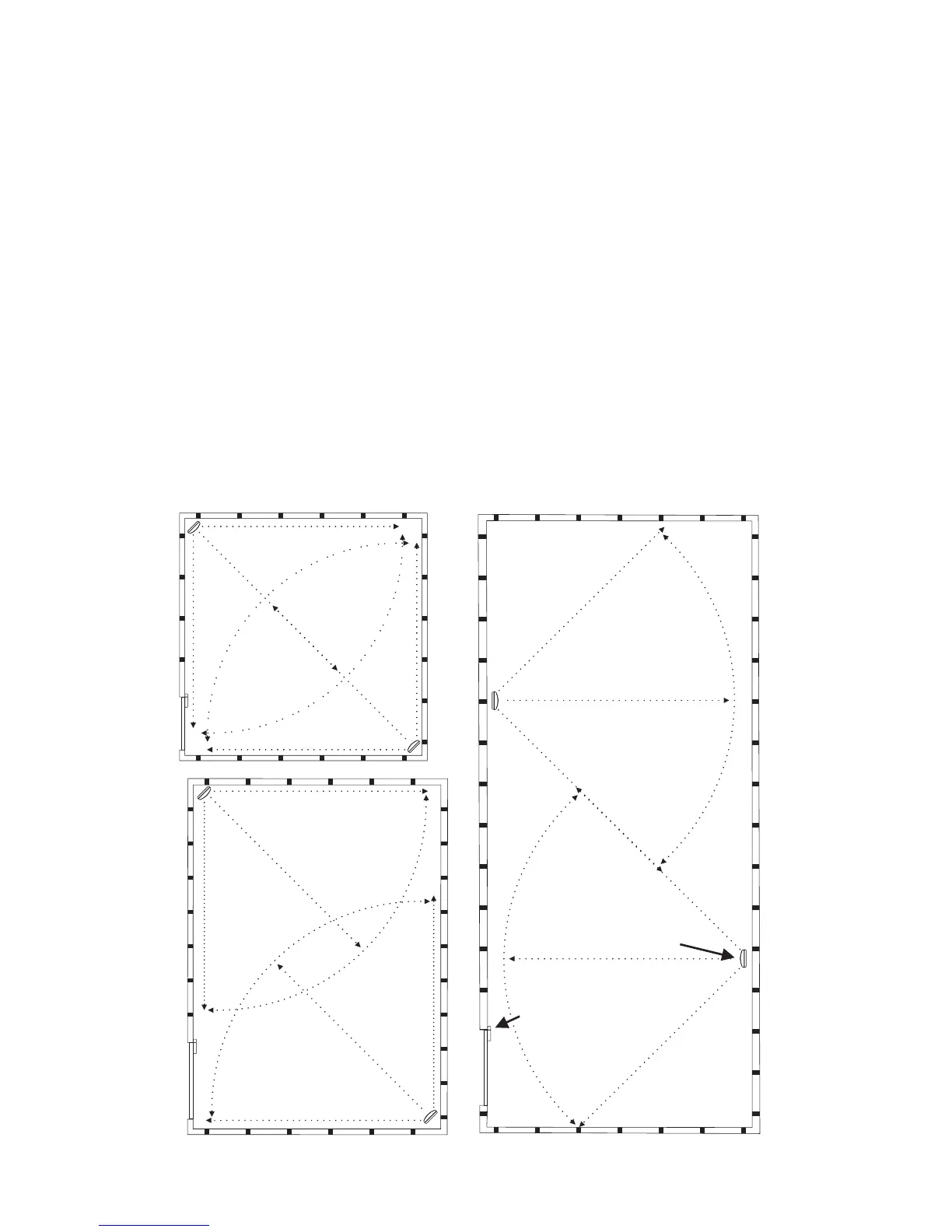

Some sample layouts are suggested below for typical situations.
7 meters unobstructed
s
e
e
r
g
e
d
0
9
Movement SensorsMovement Sensors
Door/Window Sensor
