Arlec PC697 Series User Manual

2

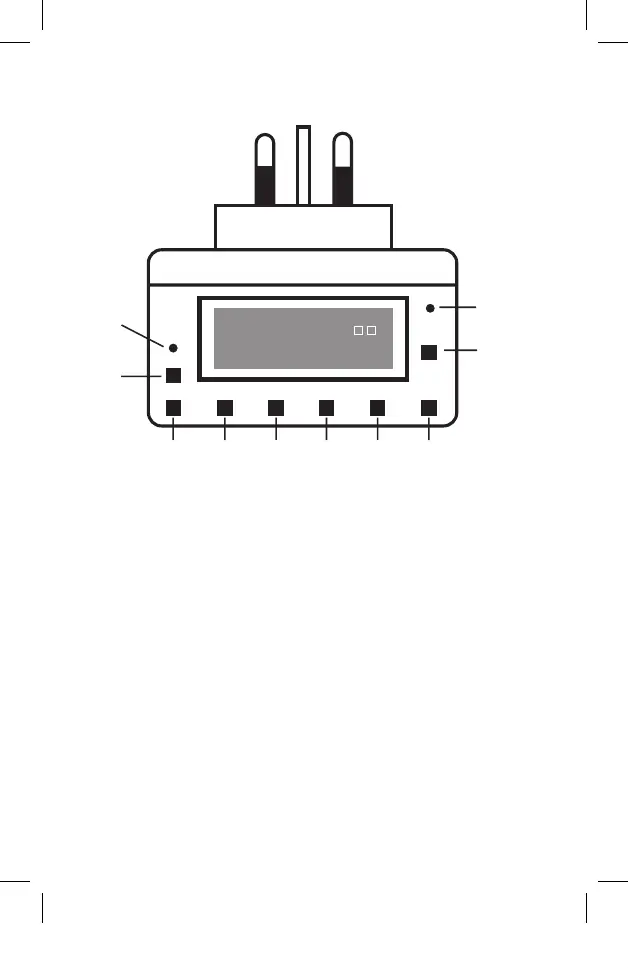

Explaining The Buttons
Read this section before
attempting to program
your timer.
MASTER
CLEAR
a
b
i
j
cdefgh
RANDOM
CLOCK TIMER ON/AUTO/OFF WEEK HOUR MIN
RST/RCL
LED
MO TU WE TH FR SA SU
ON AUTO OFF
AM
PM
ON
OFF
I 8
00 00
00
:
X
R S
a. MASTER CLEAR: Clear all data in memory including
current time and all programs.
b. RANDOM: Set or cancel random function.
c. CLOCK: Set current time combined with buttons WEEK,
HOUR, MIN. Select 12 or 24 hour mode combined with
button TIMER. Activate summertime function combined
with button MANUAL.
d. TIMER: Set programs combined with buttons WEEK, HOUR,
MIN. Select 12 or 24 hour mode combined with button CLOCK.
e. ON/AUTO/OFF: Select operating modes of timer.
f. WEEK: set week combined with button CLOCK or TIMER.
g. HOUR: Set hour combined with button CLOCK or TIMER.
h. MIN: Set minute combined with button CLOCK or TIMER.
i. RST/RCL: Override programs or recall the overridden programs.
j. LED: Shows status of power output. When the indicator is
ON, there is power output. When the indicator is OFF,
there is no power output.
