Arlec PEH002 - Control Panel Overview; Indicator Lights and Buttons

6

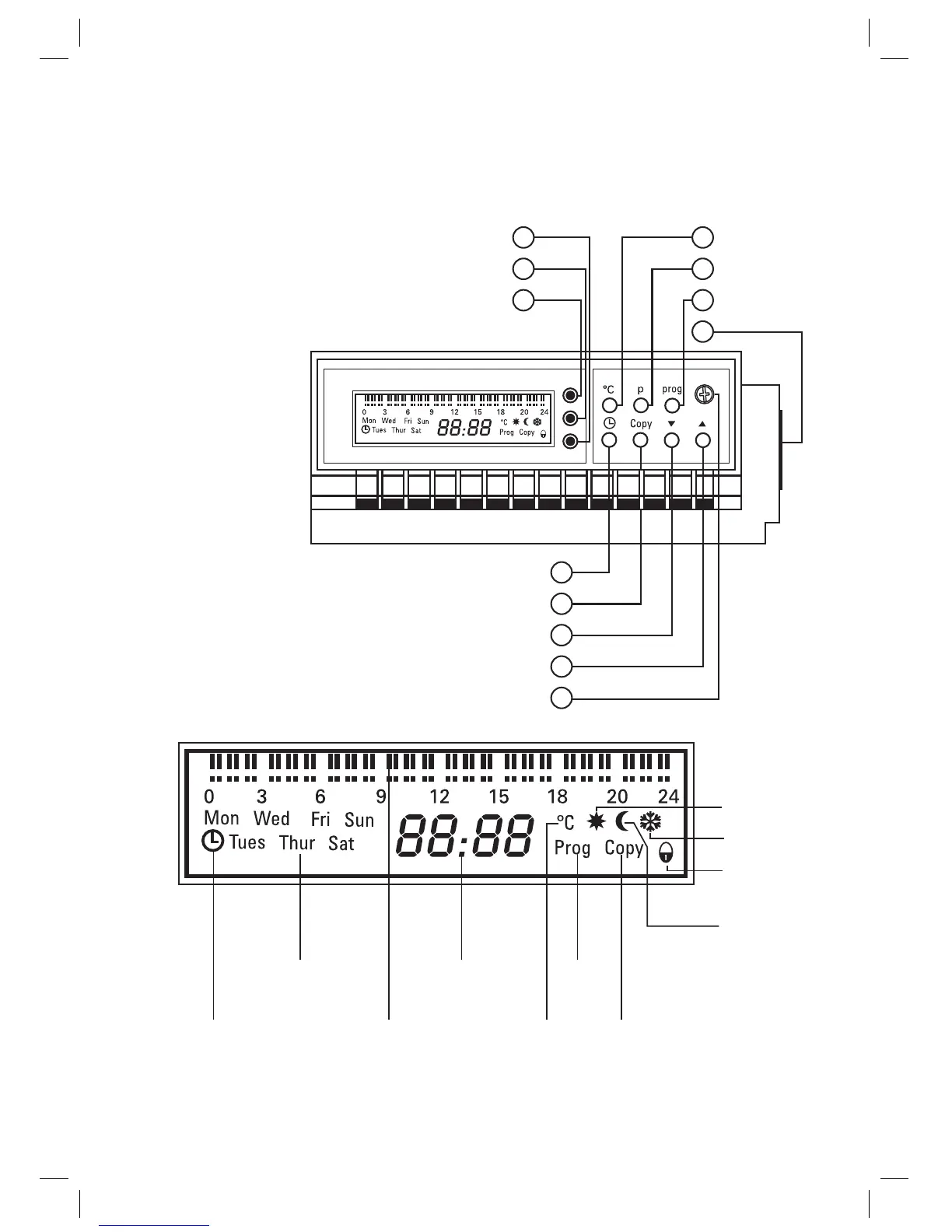

Control Panel Overview
1. Red “Comfort” Light
2. Orange “Economy” Light
3. Green “Stand-By” Light
4. Temperature Selection “°C”
5. Program Selection “P”.
6. Programming button “PROG”
7. On/Off Switch
8. Timer Selection
9. Copy Button
10. Down Button
11. Up Button
12. Tamper Screw
Fig. 3
Fig. 4
1 4
2 5
3 6
7
8
9
10
11
12
TIMER
DAY DIGITAL
DISPLAY
PROGRAM
ON/OFF
DISPLAY
DEGREES
°C
COPY
ECONOMY
SYMBOL
COMFORT
SYMBOL
FROST
SYMBOL
LOCK
